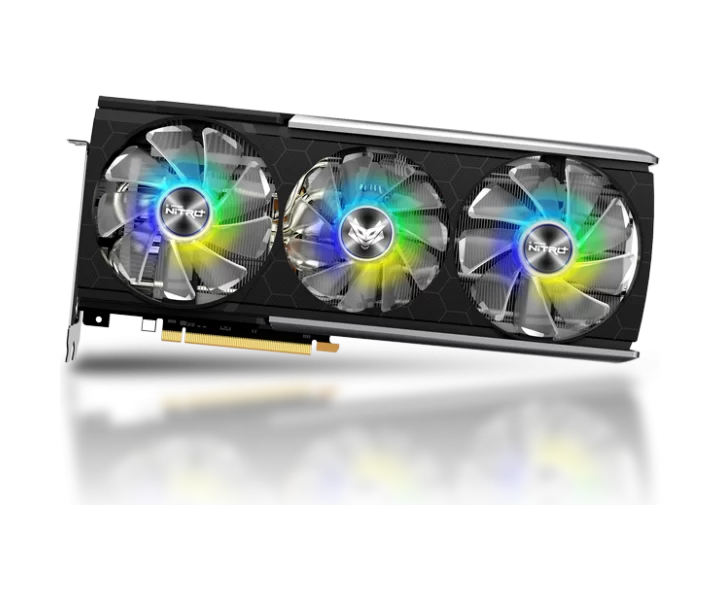

SAPPHIRE NITRO+ RX 5700 XT 8G GDDR6 SE 11293-05-40G özellikleri ve fiyatları

SAPPHIRE NITRO+ RX 5700 XT 8G GDDR6 SE 11293-05-40G teknik özellikleri

Model kodu

11293-05-40G

part Number

11293-05-40G

Grafik işlemci

Radeon™ RX 5700 Graphics 2nd Gen 7nm GPU RDNA Architecture

Grafik belleği (VRAM)

8 GB

Grafik belleği türü

GDDR6

Bellek veri yolu genişliği

256 bit

Ekran kartı arayüzü

PCI-Express 4.0

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2035MHz Game Clock: Up to 1965 MHz Base Clock: 1840 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2035 MHz

Akış işlemcisi sayısı

2560

Bellek veri hızı

14.4 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

2x HDMI 2x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz

bios Mode

Dual UEFI

Soğutma sistemi

Tri-X Cooling Triple Fan Two-Ball Bearing

Boyutlar

2.5 slot, ATX Dimension: 306x 135 x 49 (mm)

Kapladığı yuva genişliği

2.5 slot

power Consumption Conditions

285W

board Power W

285

Önerilen sistem güç kaynağı

600 W

Güç bağlantıları

2 x 8-pin Power Connector

HDMI bağlantı sayısı

2 adet

DisplayPort bağlantı sayısı

2 adet

DirectX desteği

DirectX® 12

OpenGL sürümü

OpenGL® 4.6

Diğer ekran kartı özellikleri

Sapphire Features: TriXX Supported TriXX Boost Software BIOS Switch Max Boost Power Design ARGB LED Logo, Lightstrip, Backplate Logo & Fans Optional Fan Glow ARGB support NITRO Glow ARGB Audio Visualization Fan Check Free Flow VR Friendly Intelligent Fan Control Precision fan control Robust VRM Cooling Robust Memory Cooling Tri-X Cooling Technology Backplate (Tough Metal Backplate) Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS, AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR Radeon™ VR Ready Premium

Üreticinin ayrıntılı teknik bilgileri

GPU: Radeon™ RX 5700 Graphics 2nd Gen 7nm GPU RDNA Architecture, Engine Clock: Boost Clock: Up to 2035MHz Game Clock: Up to 1965 MHz Base Clock: 1840 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 2560, Memory Size/Bus: 8GB/256 bit GDDR6, Memory Clock: 14.4 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz, Interface: PCI-Express 4.0, Output: 2x HDMI 2x DisplayPort, BIOS Support: Dual UEFI, API: Vulkan® OpenGL® 4.6 OpenCL 2.0 DirectX® 12 Shader Model 6.4, Game Index: Extreme 1440P, Sapphire Features: TriXX Supported TriXX Boost Software BIOS Switch Max Boost Power Design ARGB LED Logo, Lightstrip, Backplate Logo & Fans Optional Fan Glow ARGB support NITRO Glow ARGB Audio Visualization Fan Check Free Flow VR Friendly Intelligent Fan Control Precision fan control Robust VRM Cooling Robust Memory Cooling Tri-X Cooling Technology Backplate (Tough Metal Backplate) Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS, AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR Radeon™ VR Ready Premium, Cooler Type: Tri-X Cooling Triple Fan Two-Ball Bearing, Form Factor: 2.5 slot, ATX Dimension: 306x 135 x 49 (mm), Power Consumption: 285W, OS: Linux®, Windows® 11, 10, Windows® 7 64bit operating system required, System Requirement: Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply). 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
