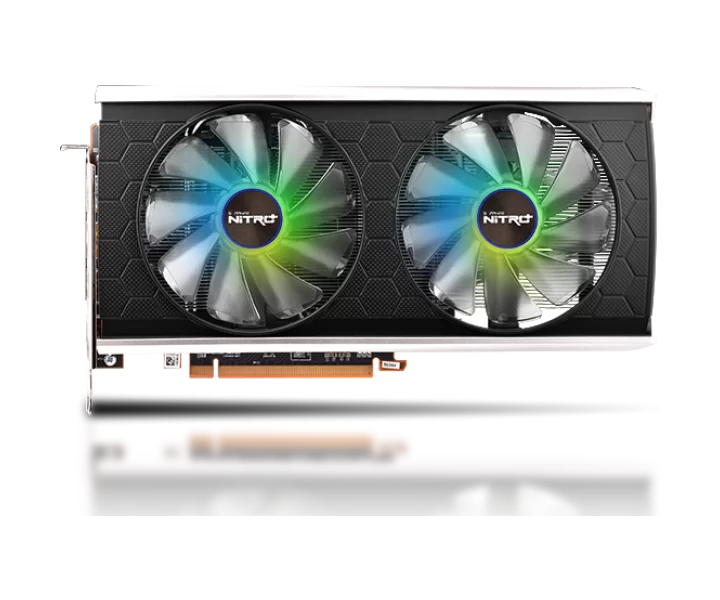

SAPPHIRE NITRO+ RX 5500 XT 8G GDDR6 SE 11295-05-20G özellikleri ve fiyatları

SAPPHIRE NITRO+ RX 5500 XT 8G GDDR6 SE 11295-05-20G teknik özellikleri

Model kodu

11295-05-20G

part Number

11295-05-20G

Grafik işlemci

Radeon™ RX 5500 Graphics 2nd Gen 7nm GPU RDNA Architecture

Grafik belleği (VRAM)

8 GB

Grafik belleği türü

GDDR6

Bellek veri yolu genişliği

128 bit

Ekran kartı arayüzü

PCI-Express 4.0

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 1845MHz Game Clock: Up to 1737 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

1845 MHz

Akış işlemcisi sayısı

1408

Bellek veri hızı

14.4 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

2x HDMI 2x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz

bios Mode

Dual UEFI

Soğutma sistemi

Dual-X Cooling Dual Fan Two-Ball Bearing

Boyutlar

2.2 slot, ATX Dimension: 257 x 132.8 x 44.2 (mm)

Kapladığı yuva genişliği

2.2 slot

power Consumption Conditions

135W

board Power W

135

Önerilen sistem güç kaynağı

450 W

Güç bağlantıları

1 x 8-pin Power Connector

HDMI bağlantı sayısı

2 adet

DisplayPort bağlantı sayısı

2 adet

DirectX desteği

DirectX® 12

OpenGL sürümü

OpenGL® 4.6

Diğer ekran kartı özellikleri

Sapphire Features: TriXX Supported TriXX Boost Software BIOS Switch Max Boost Power Design ARGB LED Logo & Fans Optional Fan Glow ARGB support NITRO Glow ARGB Audio Visualization Fan Check Free Flow VR Friendly Intelligent Fan Control Precision fan control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Backplate (Tough Metal Backplate) Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS, AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR Radeon™ VR Ready Premium

Üreticinin ayrıntılı teknik bilgileri

GPU: Radeon™ RX 5500 Graphics 2nd Gen 7nm GPU RDNA Architecture, Engine Clock: Boost Clock: Up to 1845MHz Game Clock: Up to 1737 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 1408, Memory Size/Bus: 8GB/128 bit GDDR6, Memory Clock: 14.4 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz, Interface: PCI-Express 4.0, Output: 2x HDMI 2x DisplayPort, BIOS Support: Dual UEFI, API: Vulkan® OpenGL® 4.6 OpenCL 2.0 DirectX® 12 Shader Model 6.4, Game Index: Extreme 1080P, Sapphire Features: TriXX Supported TriXX Boost Software BIOS Switch Max Boost Power Design ARGB LED Logo & Fans Optional Fan Glow ARGB support NITRO Glow ARGB Audio Visualization Fan Check Free Flow VR Friendly Intelligent Fan Control Precision fan control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Backplate (Tough Metal Backplate) Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS, AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR Radeon™ VR Ready Premium, Cooler Type: Dual-X Cooling Dual Fan Two-Ball Bearing, Form Factor: 2.2 slot, ATX Dimension: 257 x 132.8 x 44.2 (mm), Power Consumption: 135W, OS: Linux®, Windows® 11, 10, Windows® 7 64bit operating system required, System Requirement: Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply). 1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 4GB of system memory. 8GB recommended.
