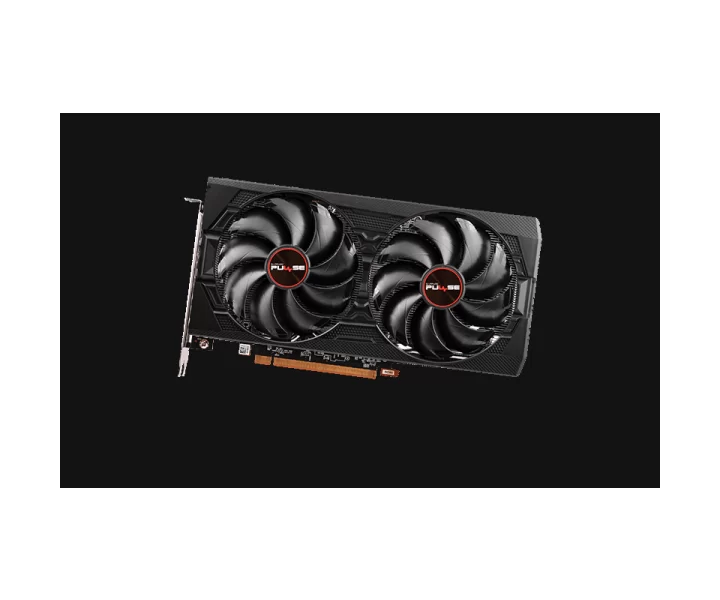

SAPPHIRE PULSE RX 5600 XT BE 6G GDDR6 11296-05-20G özellikleri ve fiyatları

SAPPHIRE PULSE RX 5600 XT BE 6G GDDR6 11296-05-20G teknik özellikleri

Model kodu

11296-05-20G

part Number

11296-05-20G

Grafik işlemci

Radeon™ RX 5600 Graphics 2nd Gen 7nm GPU RDNA Architecture

Grafik belleği (VRAM)

6 GB

Grafik belleği türü

GDDR6

Bellek veri yolu genişliği

192 bit

Ekran kartı arayüzü

PCI-Express 4.0

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 1620 MHz Game Clock: Up to 1560 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

1620 MHz

Akış işlemcisi sayısı

2304

Bellek veri hızı

14 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

2x HDMI 2x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz

bios Mode

UEFI

Soğutma sistemi

Dual-X Cooling Dual Fan Two-Ball Bearing

Boyutlar

2 slot, ATX Dimension: 230.5 x 122.5 x 40.1(mm)

Kapladığı yuva genişliği

2 slot

power Consumption Conditions

150W

board Power W

150

Önerilen sistem güç kaynağı

450 W

Güç bağlantıları

1 x 8-pin Power Connector

HDMI bağlantı sayısı

2 adet

DisplayPort bağlantı sayısı

2 adet

DirectX desteği

DirectX® 12

OpenGL sürümü

OpenGL® 4.6

Diğer ekran kartı özellikleri

Sapphire Features: Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control Precision Fan Control Robust VRM Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fuse Protection, AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR

Üreticinin ayrıntılı teknik bilgileri

GPU: Radeon™ RX 5600 Graphics 2nd Gen 7nm GPU RDNA Architecture, Engine Clock: Boost Clock: Up to 1620 MHz Game Clock: Up to 1560 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 2304, Memory Size/Bus: 6GB/192 bit GDDR6, Memory Clock: 14 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz, Interface: PCI-Express 4.0, Output: 2x HDMI 2x DisplayPort, BIOS Support: UEFI, API: Vulkan® OpenGL® 4.6 OpenCL 2.0 DirectX® 12 Shader Model 6.4, Game Index: Extreme 1080P, 1440P Entry, Sapphire Features: Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control Precision Fan Control Robust VRM Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fuse Protection, AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR, Cooler Type: Dual-X Cooling Dual Fan Two-Ball Bearing, Form Factor: 2 slot, ATX Dimension: 230.5 x 122.5 x 40.1(mm), Power Consumption: 150W, OS: Linux®, Windows® 11, 10, Windows® 7 64bit operating system required, System Requirement: Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply). 1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 4GB of system memory. 8GB recommended.
