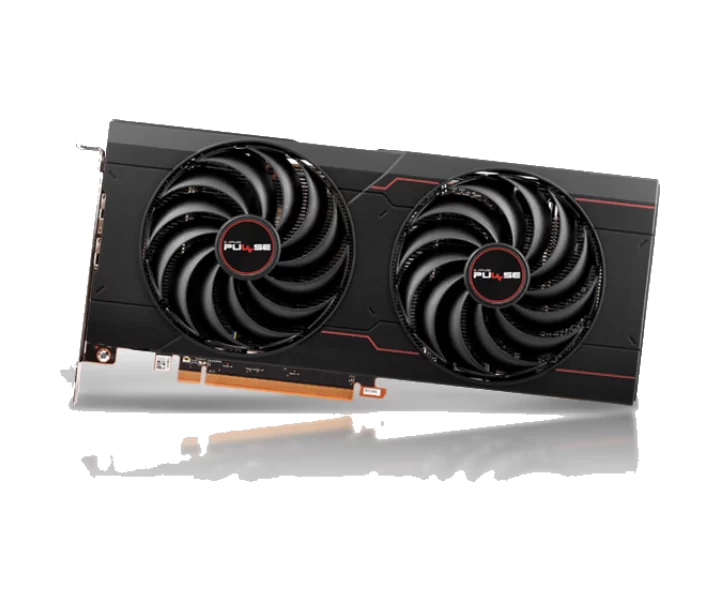

SAPPHIRE PULSE AMD Radeon™ RX 6700 XT 11306-02-20G özellikleri ve fiyatları

SAPPHIRE PULSE AMD Radeon™ RX 6700 XT 11306-02-20G teknik özellikleri

Model kodu

11306-02-20G

part Number

11306-02-20G

Grafik işlemci

AMD Radeon™ RX 6700 XT Graphics Card 7nm GPU AMD RDNA™ 2 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 2 Architecture

Grafik belleği (VRAM)

12 GB

Grafik belleği türü

GDDR6

Ekran kartı arayüzü

PCI-Express 4.0 x16

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2581 MHz Game Clock: Up to 2424 MHz Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2581 MHz

Akış işlemcisi sayısı

2560

Bellek veri hızı

16 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

1x HDMI 3x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 7680×4320 DisplayPort1.4: 7680×4320

bios Mode

UEFI

Soğutma sistemi

Dual Fans

Boyutlar

2.2 slot, ATX Dimension: 260(L)X 119.85(W)X 49(H)mm

Kapladığı yuva genişliği

2.2 slot

Kart uzunluğu

260 mm

power Consumption Conditions

230W (Board Power)

board Power W

230

Önerilen sistem güç kaynağı

650 W

Güç bağlantıları

1 x 8-pin + 1 x 6-pin Power Connector

HDMI bağlantı sayısı

1 adet

DisplayPort bağlantı sayısı

3 adet

DirectX desteği

DirectX® 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 96MB, Ray Accelerators: 40, Sapphire Features: Premium Digital Power Design Fuse Protection Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans Integrated Cooling Module TriXX Supported TriXX Boost, AMD Features: AMD RDNA™ 2 Gaming Architecture DirectX® 12 Ultimate Hardware Raytracing Smart Access Memory Infinity Cache 7nm GPU PCI® Express 4.0 Support AMD FreeSync™ Technology DisplayPort™ 1.4 with DSC HDMI™ 2.1 VRR Video Streaming up to 8K Radeon™ VR Ready Premium AMD FidelityFX Radeon™ Image Sharpening Radeon™ Anti-Lag Radeon™ Software Game Driver Optimizations

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 6700 XT Graphics Card 7nm GPU AMD RDNA™ 2 Architecture, Engine Clock: Boost Clock: Up to 2581 MHz Game Clock: Up to 2424 MHz Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 2560, Infinity Cache: 96MB, Ray Accelerators: 40, Memory Size/Bus: 12GB GDDR6, Memory Clock: 16 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 7680×4320 DisplayPort1.4: 7680×4320, Interface: PCI-Express 4.0 x16, Output: 1x HDMI 3x DisplayPort, BIOS Support: UEFI, Game Index: 4K, Sapphire Features: Premium Digital Power Design Fuse Protection Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans Integrated Cooling Module TriXX Supported TriXX Boost, AMD Features: AMD RDNA™ 2 Gaming Architecture DirectX® 12 Ultimate Hardware Raytracing Smart Access Memory Infinity Cache 7nm GPU PCI® Express 4.0 Support AMD FreeSync™ Technology DisplayPort™ 1.4 with DSC HDMI™ 2.1 VRR Video Streaming up to 8K Radeon™ VR Ready Premium AMD FidelityFX Radeon™ Image Sharpening Radeon™ Anti-Lag Radeon™ Software Game Driver Optimizations, Cooler Type: Dual Fans, Form Factor: 2.2 slot, ATX Dimension: 260(L)X 119.85(W)X 49(H)mm, Power Consumption: 230W (Board Power), OS: Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit operating system required *Does not support all features including but not limited to Hardware Raytracing, System Requirement: Minimum 650 Watt Power Supply 1 x 8-pin + 1 x 6-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
