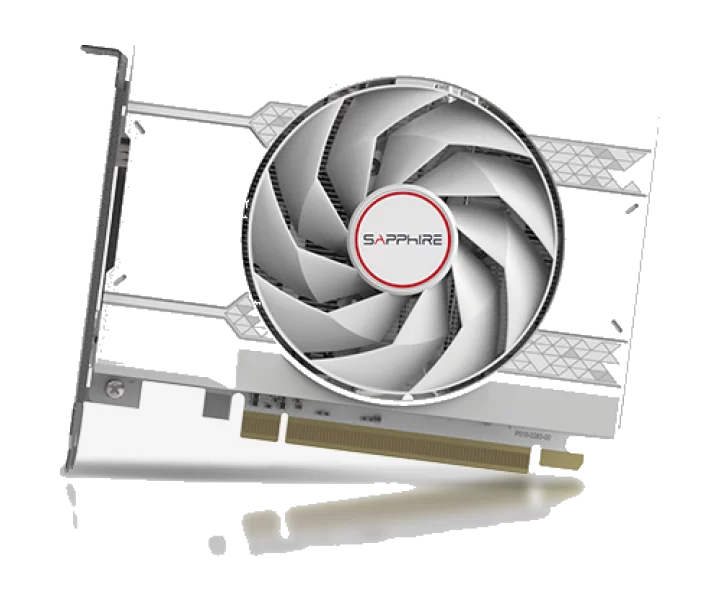

SAPPHIRE PULSE AMD Radeon™ RX 6500 XT ITX PURE 4GB 11314-04-20G özellikleri ve fiyatları

SAPPHIRE PULSE AMD Radeon™ RX 6500 XT ITX PURE 4GB 11314-04-20G teknik özellikleri

Model kodu

11314-04-20G

part Number

11314-04-20G

Grafik işlemci

AMD Radeon™ RX 6500 XT Graphics Card 6nm GPU AMD RDNA™ 2 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 2 Architecture

Grafik belleği (VRAM)

4 GB

Grafik belleği türü

GDDR6

Ekran kartı arayüzü

PCI-Express 4.0 x4

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2825 MHz Game Clock: Up to 2685 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2825 MHz

Akış işlemcisi sayısı

1024

Bellek veri hızı

18 Gbps

Eşzamanlı ekran sayısı

2

Görüntü çıkışları ve kullanım koşulları

1x HDMI 1x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 7680×4320 DisplayPort1.4: 7680×4320

bios Mode

UEFI

Soğutma sistemi

Single Fan

Boyutlar

2 slot, ATX Dimension: 152.4(L)X 110.4(W)X 36.07(H)mm

Kapladığı yuva genişliği

2 slot

Kart uzunluğu

152.4 mm

power Consumption Conditions

130W (Board Power)

board Power W

130

Önerilen sistem güç kaynağı

400 W

Güç bağlantıları

1 x 6-pin Power Connector

HDMI bağlantı sayısı

1 adet

DisplayPort bağlantı sayısı

1 adet

DirectX desteği

DirectX 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 16MB, Ray Accelerators: 16, Sapphire Features: Fuse Protection Intelligent Fan Control Precision Fan Control, AMD Features: AMD RDNA 2 Gaming Architecture DirectX 12 Ultimate support 6nm GPU PCI Express 4.0 support AMD FreeSync Technology DisplayPort 1.4 with DSC HDMI support Video Streaming up to 8K AMD Radeon VR Ready Premium AMD FidelityFX Super Resolution Hardware Raytracing AMD Radeon Image Sharpening AMD Radeon Anti-Lag AMD Radeon Software Game Driver Optimizations

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 6500 XT Graphics Card 6nm GPU AMD RDNA™ 2 Architecture, Engine Clock: Boost Clock: Up to 2825 MHz Game Clock: Up to 2685 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 1024, Infinity Cache: 16MB, Ray Accelerators: 16, Memory Size/Bus: 4GB GDDR6, Memory Clock: 18 Gbps Effective, Displays: Maximum 2 Displays, Resolution: HDMI™: 7680×4320 DisplayPort1.4: 7680×4320, Interface: PCI-Express 4.0 x4, Output: 1x HDMI 1x DisplayPort, BIOS Support: UEFI, Game Index: 1080P, Sapphire Features: Fuse Protection Intelligent Fan Control Precision Fan Control, AMD Features: AMD RDNA 2 Gaming Architecture DirectX 12 Ultimate support 6nm GPU PCI Express 4.0 support AMD FreeSync Technology DisplayPort 1.4 with DSC HDMI support Video Streaming up to 8K AMD Radeon VR Ready Premium AMD FidelityFX Super Resolution Hardware Raytracing AMD Radeon Image Sharpening AMD Radeon Anti-Lag AMD Radeon Software Game Driver Optimizations, Cooler Type: Single Fan, Form Factor: 2 slot, ATX Dimension: 152.4(L)X 110.4(W)X 36.07(H)mm, Power Consumption: 130W (Board Power), OS: Linux®, Windows® 7*, Windows® 10, and Windows 11 64-bit operating system required *Does not support all features including but not limited to Hardware Raytracing, System Requirement: Minimum 400 Watt Power Supply 1 x 6-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
