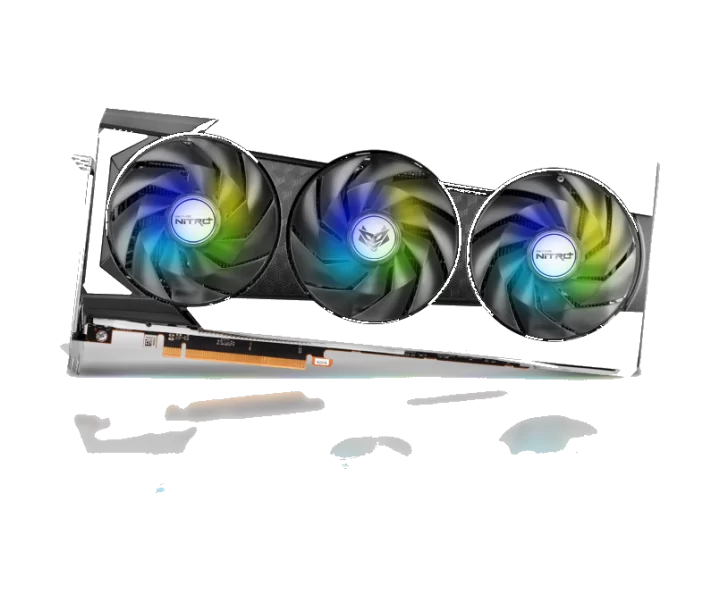

SAPPHIRE NITRO+ AMD Radeon™ RX 6950 XT PURE 11317-04-20G özellikleri ve fiyatları

SAPPHIRE NITRO+ AMD Radeon™ RX 6950 XT PURE 11317-04-20G teknik özellikleri

Model kodu

11317-04-20G

part Number

11317-04-20G

Grafik işlemci

AMD Radeon™ RX 6950 XT Graphics Card 7nm GPU AMD RDNA™ 2 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 2 Architecture

Grafik belleği (VRAM)

16 GB

Grafik belleği türü

GDDR6

Ekran kartı arayüzü

PCI-Express 4.0 x16

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2368 MHz Game Clock: Up to 2162 MHz OC BIOS Up to 2435 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2368 MHz

Akış işlemcisi sayısı

5120

Bellek veri hızı

18 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

1x HDMI 3x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 7680×4320 DisplayPort1.4: 7680×4320

bios Mode

Dual UEFI

Soğutma sistemi

3 Fans

Boyutlar

3.5 slot, ATX Dimension: 320(L)X 134.75(W)X 71.57 (H)mm

Kapladığı yuva genişliği

3.5 slot

Kart uzunluğu

320 mm

power Consumption Conditions

405W Total Board Power

board Power W

405

Önerilen sistem güç kaynağı

850 W

Güç bağlantıları

2 x 8-pin + 1 x 6-pin Power Connector

HDMI bağlantı sayısı

1 adet

DisplayPort bağlantı sayısı

3 adet

DirectX desteği

DirectX® 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 128MB, Ray Accelerators: 80, Sapphire Features: Dual BIOS OC BIOS Max Boost TriXX Software Switch Premium Digital Power Design Fuse Protection High TG Copper PCB Optimized Composite Heatpipe Tri-X Cooling Technology Intelligent Fan Control Precision Fan Control Backplate with ARGB Metal Backplate with Thermal Pad Frontplate Heatsink ARGB Fans Two-Ball Bearing Fans Angular Velocity Fan Blade Wave Fin Design V Shape Fin Design for GPU Cooling Die Casted Aluminum-Magnesium Alloy Frame Sporty White Design Graphics Card Supporter TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization, AMD Features: AMD RDNA™ 2 Gaming Architecture DirectX® 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI® Express 4.0 Support AMD FreeSync™ Technology DisplayPort™ 1.4 with DSC HDMI™ Video Streaming up to 8K Radeon™ VR Ready Premium AMD FidelityFX AMD FidelityFX™ Super Resolution (FSR) AMD Radeon™ Super Resolution Radeon™ Image Sharpening Radeon™ Anti-Lag Radeon™ Software Game Driver Optimizations High Performance 4K Gaming

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 6950 XT Graphics Card 7nm GPU AMD RDNA™ 2 Architecture, Engine Clock: Boost Clock: Up to 2368 MHz Game Clock: Up to 2162 MHz OC BIOS Up to 2435 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 5120, Infinity Cache: 128MB, Ray Accelerators: 80, Memory Size/Bus: 16GB GDDR6, Memory Clock: 18 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 7680×4320 DisplayPort1.4: 7680×4320, Interface: PCI-Express 4.0 x16, Output: 1x HDMI 3x DisplayPort, BIOS Support: Dual UEFI, Game Index: 4K, Sapphire Features: Dual BIOS OC BIOS Max Boost TriXX Software Switch Premium Digital Power Design Fuse Protection High TG Copper PCB Optimized Composite Heatpipe Tri-X Cooling Technology Intelligent Fan Control Precision Fan Control Backplate with ARGB Metal Backplate with Thermal Pad Frontplate Heatsink ARGB Fans Two-Ball Bearing Fans Angular Velocity Fan Blade Wave Fin Design V Shape Fin Design for GPU Cooling Die Casted Aluminum-Magnesium Alloy Frame Sporty White Design Graphics Card Supporter TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization, AMD Features: AMD RDNA™ 2 Gaming Architecture DirectX® 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI® Express 4.0 Support AMD FreeSync™ Technology DisplayPort™ 1.4 with DSC HDMI™ Video Streaming up to 8K Radeon™ VR Ready Premium AMD FidelityFX AMD FidelityFX™ Super Resolution (FSR) AMD Radeon™ Super Resolution Radeon™ Image Sharpening Radeon™ Anti-Lag Radeon™ Software Game Driver Optimizations High Performance 4K Gaming, Cooler Type: 3 Fans, Form Factor: 3.5 slot, ATX Dimension: 320(L)X 134.75(W)X 71.57 (H)mm, Power Consumption: 405W Total Board Power, OS: Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit operating system required *Does not support all features including but not limited to Hardware Raytracing, System Requirement: Minimum 850 Watt Power Supply 2 x 8-pin + 1 x 6-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
