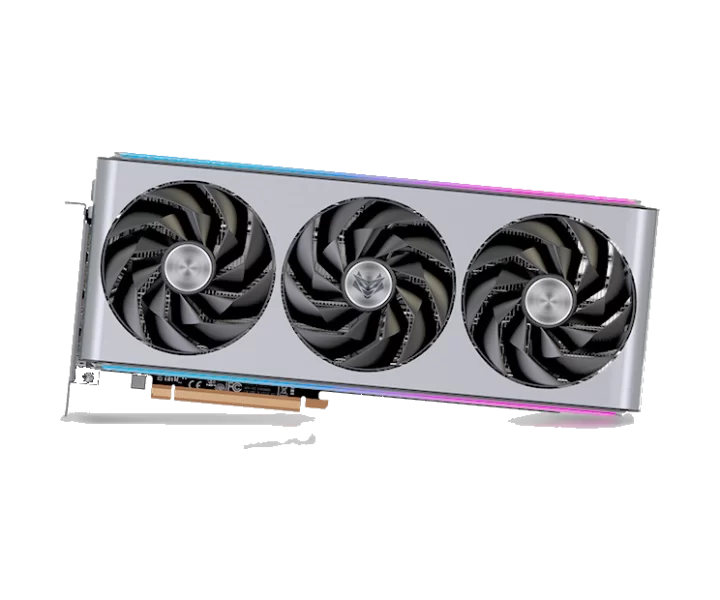

SAPPHIRE NITRO+ AMD Radeon™ RX 7900 XTX Vapor-X 24GB 11322-01-40G özellikleri ve fiyatları

SAPPHIRE NITRO+ AMD Radeon™ RX 7900 XTX Vapor-X 24GB 11322-01-40G teknik özellikleri

Model kodu

11322-01-40G

part Number

11322-01-40G

Grafik işlemci

AMD Radeon™ RX 7900 XTX Graphics Card 5nm GPU AMD RDNA™ 3 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 3 Architecture

Grafik belleği (VRAM)

24 GB

Grafik belleği türü

GDDR6

Bellek veri yolu genişliği

384 bit

Ekran kartı arayüzü

PCI-Express 4.0 x16

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2680 MHz Game Clock: Up to 2510 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2680 MHz

Akış işlemcisi sayısı

6144

compute Units

96

Bellek veri hızı

20 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

2x HDMI 2x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320

bios Mode

Dual UEFI

Soğutma sistemi

3 Fans Vapor-X Cooling

Kutu içeriği

Graphics Card Supporter ARGB Extension Cable

Boyutlar

3.5 slot, ATX Dimension: 320(L)X 135.75(W)X 71.6 (H)mm

Kapladığı yuva genişliği

3.5 slot

Kart uzunluğu

320 mm

power Consumption Conditions

420W Total Board Power

board Power W

420

Önerilen sistem güç kaynağı

800 W

Güç bağlantıları

3 x 8-pin Power Connector

HDMI bağlantı sayısı

2 adet

DisplayPort bağlantı sayısı

2 adet

DirectX desteği

Microsoft® DirectX® 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 96MB, Ray Accelerators: 96, Sapphire Features: Dual BIOS TriXX Software Switch Premium Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology Vapor-X Cooling High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate with ARGB Dual ARGB Light Bar Two-Ball Bearing Fans Angular Velocity Fan Blade Assistive System Fan Control Die Casted Aluminum-Magnesium Alloy Frame Frontplate Heatsink for VRM Wave Fin Design V Shape Fin Design for GPU Cooling TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization, AMD Features: AMD RDNA™ 3 Architecture 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 96MB AMD Infinity Cache™ Technology DisplayPort™ 2.1 Support AMD Radiance Display™ Engine 24GB GDDR6 on 384-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ Technology*

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 7900 XTX Graphics Card 5nm GPU AMD RDNA™ 3 Architecture, Engine Clock: Boost Clock: Up to 2680 MHz Game Clock: Up to 2510 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 6144, Compute Units: 96 CU (with RT+AI Accelerators), Infinity Cache: 96MB, Ray Accelerators: 96, Memory Size/Bus: 24GB/384 bit GDDR6, Memory Clock: 20 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320, Interface: PCI-Express 4.0 x16, Output: 2x HDMI 2x DisplayPort, BIOS Support: Dual UEFI, Game Index: 4K, Sapphire Features: Dual BIOS TriXX Software Switch Premium Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology Vapor-X Cooling High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate with ARGB Dual ARGB Light Bar Two-Ball Bearing Fans Angular Velocity Fan Blade Assistive System Fan Control Die Casted Aluminum-Magnesium Alloy Frame Frontplate Heatsink for VRM Wave Fin Design V Shape Fin Design for GPU Cooling TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization, Accessories Bundled: Graphics Card Supporter ARGB Extension Cable, AMD Features: AMD RDNA™ 3 Architecture 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 96MB AMD Infinity Cache™ Technology DisplayPort™ 2.1 Support AMD Radiance Display™ Engine 24GB GDDR6 on 384-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ Technology*, Cooler Type: 3 Fans Vapor-X Cooling, Form Factor: 3.5 slot, ATX Dimension: 320(L)X 135.75(W)X 71.6 (H)mm, Power Consumption: 420W Total Board Power, OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required, System Requirement: Minimum 800 Watt Power Supply 3 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
