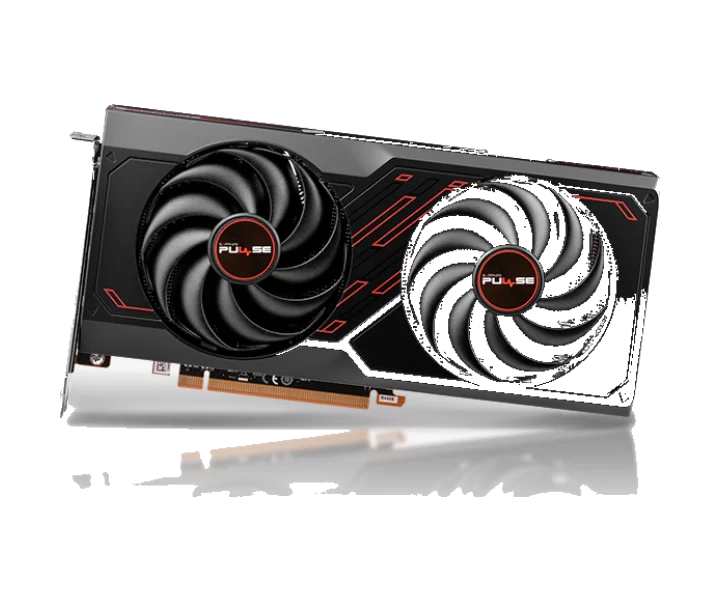

SAPPHIRE PULSE AMD Radeon™ RX 7600 8GB 11324-01-20G özellikleri ve fiyatları

SAPPHIRE PULSE AMD Radeon™ RX 7600 8GB 11324-01-20G teknik özellikleri

Model kodu

11324-01-20G

part Number

11324-01-20G

Grafik işlemci

AMD Radeon™ RX 7600 Graphics Card AMD RDNA™ 3 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 3 Architecture

Grafik belleği (VRAM)

8 GB

Grafik belleği türü

GDDR6

Bellek veri yolu genişliği

128 bit

Ekran kartı arayüzü

PCI-Express 4.0 x8

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2755 MHz Game Clock: Up to 2355 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2755 MHz

Akış işlemcisi sayısı

2048

compute Units

32

Bellek veri hızı

18 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

1x HDMI 3x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 7680×4320 DisplayPort 1.4: 7680×4320

bios Mode

UEFI

Soğutma sistemi

2 Fans

Boyutlar

2 slot, ATX Dimension: 240(L)X 107.1(W)X 44.07 (H)mm

Kapladığı yuva genişliği

2 slot

Kart uzunluğu

240 mm

power Consumption Conditions

185W Total Board Power

board Power W

185

Önerilen sistem güç kaynağı

550 W

Güç bağlantıları

1 x 8-pin Power Connector

HDMI bağlantı sayısı

1 adet

DisplayPort bağlantı sayısı

3 adet

DirectX desteği

DirectX 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 32MB, Ray Accelerators: 32, Sapphire Features: Fuse Protection Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans Optimized Composite Heatpipe TriXX Supported TriXX Boost, AMD Features: AMD RDNA 3 Architecture DirectX 12 Ultimate AMD Smart Access Memory AMD Infinity Cache PCI Express 4.0 Support AMD FreeSync™ Technology DisplayPort 1.4 with DSC HDMI Video Streaming up to 8K AMD Radeon VR Ready Premium AMD Radeon Image Sharpening AMD Radeon Anti-Lag AMD Software: Adrenalin Edition™ Technology Game Driver Optimizations

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 7600 Graphics Card AMD RDNA™ 3 Architecture, Engine Clock: Boost Clock: Up to 2755 MHz Game Clock: Up to 2355 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 2048, Compute Units: 32 CU, Infinity Cache: 32MB, Ray Accelerators: 32, Memory Size/Bus: 8GB/128 bit GDDR6, Memory Clock: 18 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 7680×4320 DisplayPort 1.4: 7680×4320, Interface: PCI-Express 4.0 x8, Output: 1x HDMI 3x DisplayPort, BIOS Support: UEFI, Game Index: 1080P Ultimate, Sapphire Features: Fuse Protection Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans Optimized Composite Heatpipe TriXX Supported TriXX Boost, AMD Features: AMD RDNA 3 Architecture DirectX 12 Ultimate AMD Smart Access Memory AMD Infinity Cache PCI Express 4.0 Support AMD FreeSync™ Technology DisplayPort 1.4 with DSC HDMI Video Streaming up to 8K AMD Radeon VR Ready Premium AMD Radeon Image Sharpening AMD Radeon Anti-Lag AMD Software: Adrenalin Edition™ Technology Game Driver Optimizations, Cooler Type: 2 Fans, Form Factor: 2 slot, ATX Dimension: 240(L)X 107.1(W)X 44.07 (H)mm, Power Consumption: 185W Total Board Power, OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required, System Requirement: Minimum 550 Watt Power Supply 1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
