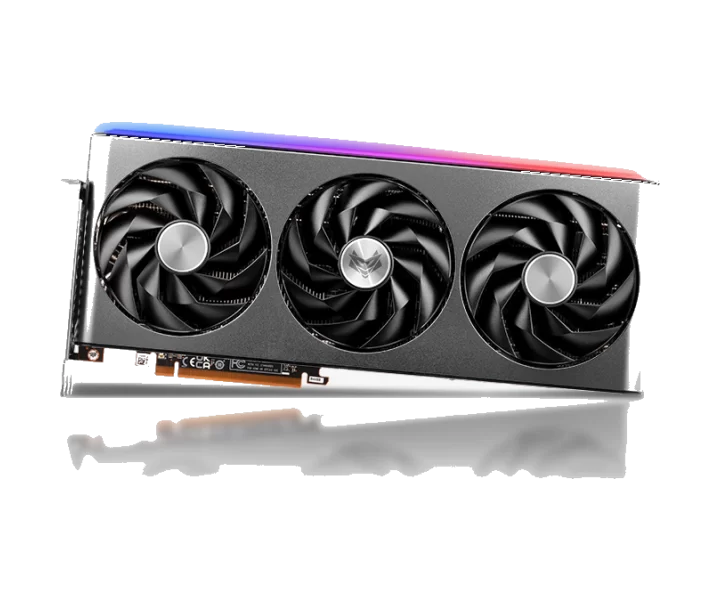

SAPPHIRE NITRO+ AMD Radeon™ RX 7800 XT 16GB 11330-01-20G özellikleri ve fiyatları

SAPPHIRE NITRO+ AMD Radeon™ RX 7800 XT 16GB 11330-01-20G teknik özellikleri

Model kodu

11330-01-20G

part Number

11330-01-20G

Grafik işlemci

AMD Radeon™ RX 7800 XT Graphics Card 5nm GPU AMD RDNA™ 3 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 3 Architecture

Grafik belleği (VRAM)

16 GB

Grafik belleği türü

GDDR6

Bellek veri yolu genişliği

256 bit

Ekran kartı arayüzü

PCI-Express 4.0 x16

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2565 MHz Game Clock: Up to 2254MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2565 MHz

Akış işlemcisi sayısı

3840

compute Units

60

Bellek veri hızı

19.5 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

2x HDMI 2x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320

bios Mode

Dual UEFI

Soğutma sistemi

3 Fans

Kutu içeriği

Graphics Card Supporter ARGB Extension Cable

Boyutlar

3 slot, ATX Dimension: 320(L)X 134.85(W)X 61.57 (H)mm

Kapladığı yuva genişliği

3 slot

Kart uzunluğu

320 mm

power Consumption Conditions

288W Total Board Power

board Power W

288

Önerilen sistem güç kaynağı

700 W

Güç bağlantıları

2 x 8-pin Power Connector

HDMI bağlantı sayısı

2 adet

DisplayPort bağlantı sayısı

2 adet

DirectX desteği

Microsoft® DirectX® 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 64MB, Ray Accelerators: 60, Sapphire Features: Dual BIOS TriXX Software Switch Premium Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate with ARGB ARGB Light Bar Two-Ball Bearing Fans Angular Velocity Fan Blade Assistive System Fan Control Cold Rolled Steel Frame Dedicated VRM Cooling Wave Fin Design V Shape Fin Design for GPU Cooling TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization, AMD Features: AMD RDNA™ 3 Architecture 60 AMD RDNA™ 3 Compute Units 64MB AMD Infinity Cache™ Technology DisplayPort™ 2.1 Support AMD Radiance Display™ Engine 16GB GDDR6 on 256-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ Technology

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 7800 XT Graphics Card 5nm GPU AMD RDNA™ 3 Architecture, Engine Clock: Boost Clock: Up to 2565 MHz Game Clock: Up to 2254MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 3840, Compute Units: 60 CU (with RT+AI Accelerators), Infinity Cache: 64MB, Ray Accelerators: 60, Memory Size/Bus: 16GB/256 bit GDDR6, Memory Clock: 19.5 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320, Interface: PCI-Express 4.0 x16, Output: 2x HDMI 2x DisplayPort, BIOS Support: Dual UEFI, Game Index: 4K, Sapphire Features: Dual BIOS TriXX Software Switch Premium Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate with ARGB ARGB Light Bar Two-Ball Bearing Fans Angular Velocity Fan Blade Assistive System Fan Control Cold Rolled Steel Frame Dedicated VRM Cooling Wave Fin Design V Shape Fin Design for GPU Cooling TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization, Accessories Bundled: Graphics Card Supporter ARGB Extension Cable, AMD Features: AMD RDNA™ 3 Architecture 60 AMD RDNA™ 3 Compute Units 64MB AMD Infinity Cache™ Technology DisplayPort™ 2.1 Support AMD Radiance Display™ Engine 16GB GDDR6 on 256-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ Technology, Cooler Type: 3 Fans, Form Factor: 3 slot, ATX Dimension: 320(L)X 134.85(W)X 61.57 (H)mm, Power Consumption: 288W Total Board Power, OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required, System Requirement: Minimum 700 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
