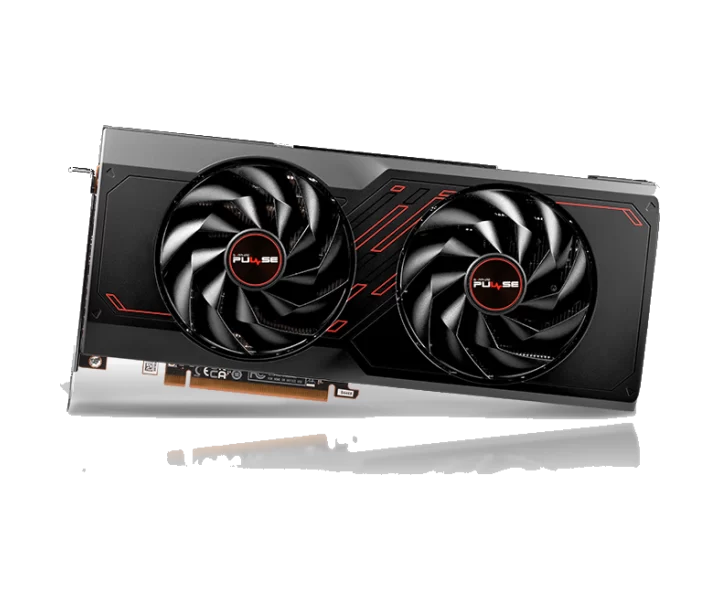

SAPPHIRE PULSE AMD Radeon™ RX 7700 XT 12GB 11335-04-20G özellikleri ve fiyatları

SAPPHIRE PULSE AMD Radeon™ RX 7700 XT 12GB 11335-04-20G teknik özellikleri

Model kodu

11335-04-20G

part Number

11335-04-20G

Grafik işlemci

AMD Radeon™ RX 7700 XT Graphics Card 5nm GPU AMD RDNA™ 3 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 3 Architecture

Grafik belleği (VRAM)

12 GB

Grafik belleği türü

GDDR6

Bellek veri yolu genişliği

192 bit

Ekran kartı arayüzü

PCI-Express 4.0 x16

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2544 MHz Game Clock: Up to 2171 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2544 MHz

Akış işlemcisi sayısı

3456

compute Units

54

Bellek veri hızı

18 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

2x HDMI 2x DisplayPort

En yüksek görüntü çözünürlüğü

HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320

bios Mode

UEFI

Soğutma sistemi

2 Fans

Boyutlar

2.5 slot, ATX Dimension: 280(L)X 128.75(W)X 52.57 (H)mm

Kapladığı yuva genişliği

2.5 slot

Kart uzunluğu

280 mm

power Consumption Conditions

230W Total Board Power

board Power W

230

Önerilen sistem güç kaynağı

700 W

Güç bağlantıları

2 x 8-pin Power Connector

HDMI bağlantı sayısı

2 adet

DisplayPort bağlantı sayısı

2 adet

DirectX desteği

Microsoft® DirectX® 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 48MB, Ray Accelerators: 54, Sapphire Features: Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection High TG Copper PCB Optimized Composite Heatpipe Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Angular Velocity Fan Blade Dual-Ball Bearing Fans TriXX Supported TriXX Boost, AMD Features: AMD RDNA™ 3 Architecture 54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 48MB AMD Infinity Cache™ Technology DisplayPort™ 2.1Support AMD Radiance Display™ Engine 12GB GDDR6 on 192-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ technology

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 7700 XT Graphics Card 5nm GPU AMD RDNA™ 3 Architecture, Engine Clock: Boost Clock: Up to 2544 MHz Game Clock: Up to 2171 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 3456, Compute Units: 54 CU (with RT+AI Accelerators), Infinity Cache: 48MB, Ray Accelerators: 54, Memory Size/Bus: 12GB/192 bit GDDR6, Memory Clock: 18 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320, Interface: PCI-Express 4.0 x16, Output: 2x HDMI 2x DisplayPort, BIOS Support: UEFI, Game Index: 1440P, Sapphire Features: Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection High TG Copper PCB Optimized Composite Heatpipe Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Angular Velocity Fan Blade Dual-Ball Bearing Fans TriXX Supported TriXX Boost, AMD Features: AMD RDNA™ 3 Architecture 54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 48MB AMD Infinity Cache™ Technology DisplayPort™ 2.1Support AMD Radiance Display™ Engine 12GB GDDR6 on 192-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ technology, Cooler Type: 2 Fans, Form Factor: 2.5 slot, ATX Dimension: 280(L)X 128.75(W)X 52.57 (H)mm, Power Consumption: 230W Total Board Power, OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required, System Requirement: Minimum 700 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
