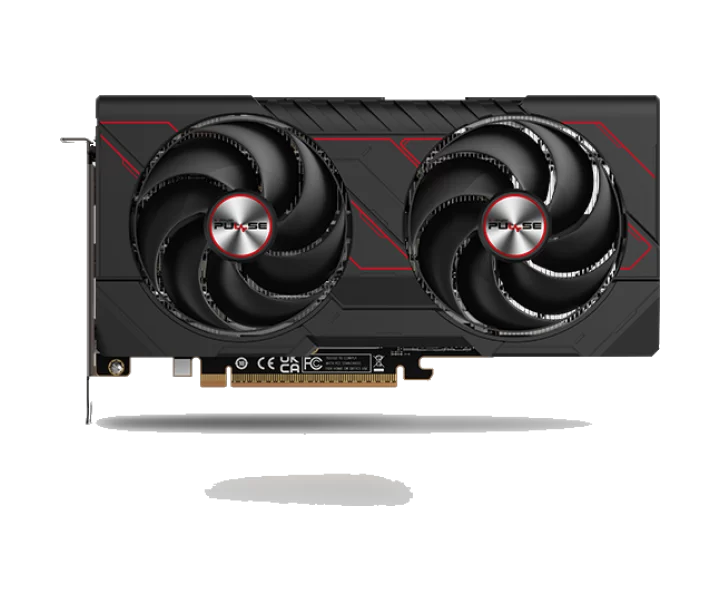

SAPPHIRE PULSE AMD Radeon™ RX 9060 XT OC 16GB GPU 11350-03-20G özellikleri ve fiyatları

SAPPHIRE PULSE AMD Radeon™ RX 9060 XT OC 16GB GPU 11350-03-20G teknik özellikleri

Model kodu

11350-03-20G

part Number

11350-03-20G

Grafik işlemci

AMD Radeon™ RX 9060 XT Graphics Card AMD RDNA™ 4 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 4 Architecture

Grafik belleği (VRAM)

16 GB

Grafik belleği türü

GDDR6

Bellek veri yolu genişliği

128 bit

Ekran kartı arayüzü

PCI-Express 5.0 x16

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

3290 MHz

Akış işlemcisi sayısı

2048

compute Units

32

Bellek veri hızı

20 Gbps

Eşzamanlı ekran sayısı

3

Görüntü çıkışları ve kullanım koşulları

2x HDMI® 1x DisplayPort™ 2.1a

En yüksek görüntü çözünürlüğü

HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320

bios Mode

UEFI

Soğutma sistemi

Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Sleeve Bearing

Boyutlar

2.3 slot, ATX Dimension: 240(L) X 111.25(W) X 46.08(H)mm

Kapladığı yuva genişliği

2.3 slot

Kart uzunluğu

240 mm

power Consumption Conditions

170W Typical Board Power

board Power W

170

Önerilen sistem güç kaynağı

450 W

Güç bağlantıları

1 x 8-pin Power Connector

HDMI bağlantı sayısı

2 adet

DisplayPort bağlantı sayısı

1 adet

DirectX desteği

Microsoft® DirectX® 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 32MB, Ray Accelerators: 32, AI Accelerator: 64, Sapphire Features: Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost, AMD Features: AMD RDNA™ 4 Architecture 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology AMD Infinity Cache 16 GB of GDDR6 on 128-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 9060 XT Graphics Card AMD RDNA™ 4 Architecture, Engine Clock: Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 2048, Compute Units: 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators), Infinity Cache: 32MB, Ray Accelerators: 32, AI Accelerator: 64, Memory Size/Bus: 16GB/128 bit GDDR6, Memory Clock: 20 Gbps Effective, Displays: Maximum 3 Displays, Resolution: HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320, Interface: PCI-Express 5.0 x16, Output: 2x HDMI® 1x DisplayPort™ 2.1a, BIOS Support: UEFI, Game Index: 1440P, Sapphire Features: Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost, AMD Features: AMD RDNA™ 4 Architecture 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology AMD Infinity Cache 16 GB of GDDR6 on 128-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application, Cooler Type: Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Sleeve Bearing, Form Factor: 2.3 slot, ATX Dimension: 240(L) X 111.25(W) X 46.08(H)mm, Power Consumption: 170W Typical Board Power, OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required, System Requirement: Minimum 450 Watt Power Supply 1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended., Packaging Information: Packaging Materials & Recycling Guide
