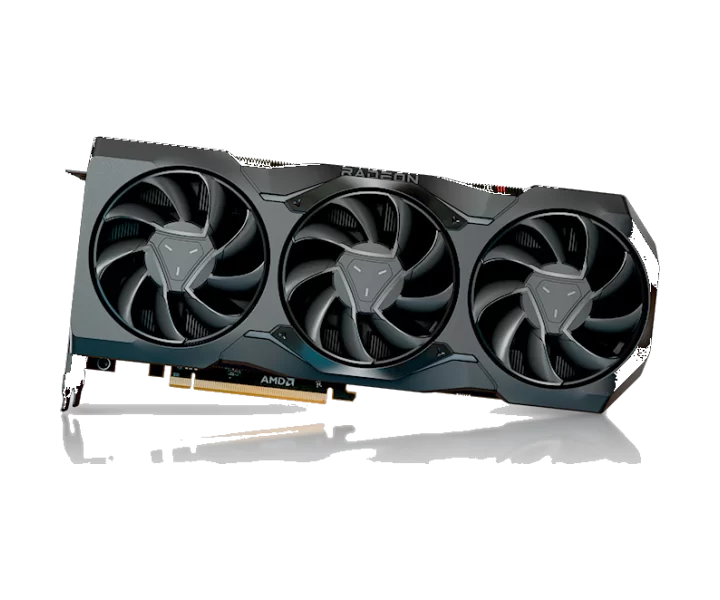

SAPPHIRE AMD Radeon™ RX 7900 XTX 24GB 21322-01-20G özellikleri ve fiyatları

SAPPHIRE AMD Radeon™ RX 7900 XTX 24GB 21322-01-20G teknik özellikleri

Model kodu

21322-01-20G

part Number

21322-01-20G

Grafik işlemci

AMD Radeon™ RX 7900 XTX Graphics Card 5nm GPU AMD RDNA™ 3 Architecture

Grafik işlemci üreticisi

AMD

gpu Architecture

AMD RDNA™ 3 Architecture

Grafik belleği (VRAM)

24 GB

Grafik belleği türü

GDDR6

Ekran kartı arayüzü

PCI-Express 4.0 x16

GPU saat hızı ve çalışma koşulları

Boost Clock: Up to 2500 MHz Game Clock: Up to 2300 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

GPU yükseltme (boost) saat hızı

2500 MHz

Akış işlemcisi sayısı

6144

compute Units

96

Bellek veri hızı

20 Gbps

Eşzamanlı ekran sayısı

4

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2x DisplayPort 1x USB-C

En yüksek görüntü çözünürlüğü

HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 USB-C: 7680x4320

bios Mode

UEFI

Soğutma sistemi

3 Fans

Boyutlar

2.5 slot, ATX Dimension: 287(L)X 123.2(W)X 51.25 (H)mm

Kapladığı yuva genişliği

2.5 slot

Kart uzunluğu

287 mm

power Consumption Conditions

346W

board Power W

346

Önerilen sistem güç kaynağı

800 W

Güç bağlantıları

2 x 8-pin Power Connector

HDMI bağlantı sayısı

1 adet

DisplayPort bağlantı sayısı

2 adet

DirectX desteği

Microsoft® DirectX® 12 Ultimate

Diğer ekran kartı özellikleri

Infinity Cache: 96MB, Ray Accelerators: 96, AMD Features: AMD RDNA™ 3 Gaming Architecture 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 96MB AMD Infinity Cache™ technology DisplayPort™ 2.1 AMD Radiance Display™ Engine AMD Radeon™ Boost technology* AMD Radeon™ Anti-Lag* technology* 24GB GDDR6 on 384-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ technologies* AMD FidelityFX™ Super Resolution technology* Microsoft® DirectX® 12 Ultimate Microsoft® DirectStorage Vulkan® Optimized AMD smart technologies* AMD Software: Adrenalin Edition™ application AMD Noise Suppression* AMD Privacy View* AMD Radeon™ Super Resolution technology* AMD Link* AMD Freesync™ technology

Üreticinin ayrıntılı teknik bilgileri

GPU: AMD Radeon™ RX 7900 XTX Graphics Card 5nm GPU AMD RDNA™ 3 Architecture, Engine Clock: Boost Clock: Up to 2500 MHz Game Clock: Up to 2300 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary., Stream Processors: 6144, Compute Units: 96 CU (with RT+AI Accelerators), Infinity Cache: 96MB, Ray Accelerators: 96, Memory Size/Bus: 24GB GDDR6, Memory Clock: 20 Gbps Effective, Displays: Maximum 4 Displays, Resolution: HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 USB-C: 7680x4320, Interface: PCI-Express 4.0 x16, Output: 1x HDMI 2x DisplayPort 1x USB-C, BIOS Support: UEFI, Game Index: 4K, AMD Features: AMD RDNA™ 3 Gaming Architecture 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 96MB AMD Infinity Cache™ technology DisplayPort™ 2.1 AMD Radiance Display™ Engine AMD Radeon™ Boost technology* AMD Radeon™ Anti-Lag* technology* 24GB GDDR6 on 384-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ technologies* AMD FidelityFX™ Super Resolution technology* Microsoft® DirectX® 12 Ultimate Microsoft® DirectStorage Vulkan® Optimized AMD smart technologies* AMD Software: Adrenalin Edition™ application AMD Noise Suppression* AMD Privacy View* AMD Radeon™ Super Resolution technology* AMD Link* AMD Freesync™ technology, Cooler Type: 3 Fans, Form Factor: 2.5 slot, ATX Dimension: 287(L)X 123.2(W)X 51.25 (H)mm, Power Consumption: 346W, OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required, System Requirement: Minimum 800 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
