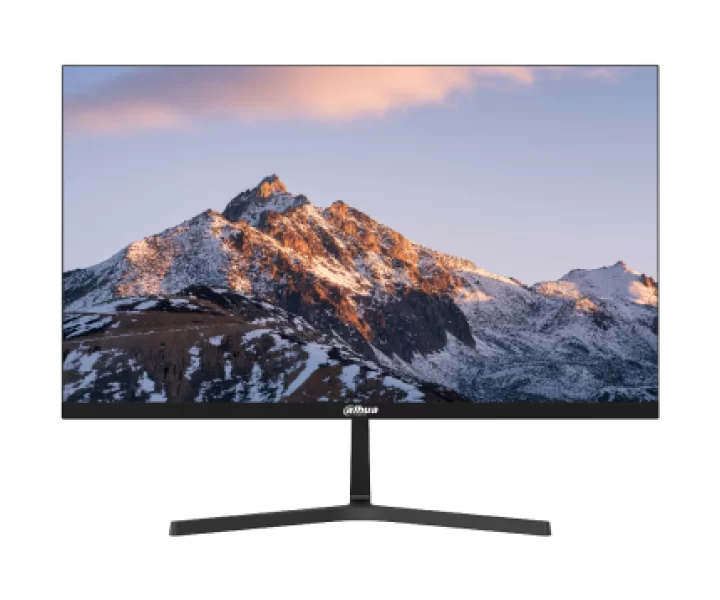

Dahua DHI-LM24-B201S özellikleri ve fiyatları

Dahua DHI-LM24-B201S teknik özellikleri

Model kodu

DHI-LM24-B201S

part Number

DHI-LM24-B201S

Ekran teknolojisi

IPS

Ekran çözünürlüğü

1920 x 1080

Ekran oranı

16:9

contrast Ratio

1000:1

viewing Angle

178° (H) / 178° (V)

Ekran renk sayısı

16.7M colors

Renk gamı

72% NTSC

screen Finish

Haze 25%, 3H

vesa Mount

75 mm × 75 mm (2.95" × 2.95")

power Supply Type

12 VDC, 2.5 A

Boyutlar

539.2 mm × 320.4 mm × 39.1 mm (21.23" × 12.61" × 1.54") (W × H × D), without wall-mount bracket

tilt

-5° / 15°

ports

1 × HDMI 1.4 (1920 × 1080@100 Hz), 1 × VGA

Ses çıkışı

1 × Audio out

Kutu içeriği

Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc.

Hoparlör özellikleri

2 × 1 W

Ekran boyutu

23.8 inç

Ekran yenileme hızı

100 Hz

Tepe parlaklık

250 nit

response Time

5

response Time Method

OD 5 ms

Ağırlık

2820 g

power Consumption

19

Ekran özellikleri

Standby power (literal limit): <0.5 W

resolution Conditions

1920 (H) × 1080 (V); 1 × HDMI 1.4 (1920 × 1080@100 Hz), 1 × VGA

maximum Refresh Rate Conditions

100 Hz; 1 × HDMI 1.4 (1920 × 1080@100 Hz), 1 × VGA

Üreticinin ayrıntılı teknik bilgileri

Display / Model: DHI-LM24-B201S, Display / LCD Technology: IPS, Display / Backlight: ELED, Display / Screen Size: 23.8 inch, Display / Aspect Ratio: 16:9, Display / Viewing Size: 527.04 (H) × 296.46 (V) mm, Display / Screen-to-Body Ratio: ≥90%, Display / Viewing Angle: 178° (H) / 178° (V), Display / Display Mode: Horizontal, Display / Pixel Pitch: 0.2745 mm × 0.2745 mm, Display / Pixels Per Inch: 92.56, Display / Resolution: 1920 (H) × 1080 (V), Display / Refresh Rate: 100 Hz, Display / Display Color: 16.7M colors, Display / Color Gamut: 72% NTSC, Display / Brightness: 250 cd/m² (max), Display / Contrast Ratio: 1000:1, Display / Response Time: OD 5 ms, Display / Lifespan: 30,000 hrs, Display / Surface Treatment: Haze 25%, 3H, Display / Low Blue Light: Software blue light protection, Device Ports / Input Port: 1 × HDMI 1.4 (1920 × 1080@100 Hz), 1 × VGA, Device Ports / Output Port: 1 × Audio out, Device Ports / Speaker: 2 × 1 W, Power & Environmental Conditions / Power Supply: 12 VDC, 2.5 A, Power & Environmental Conditions / Power Consumption: 17 W (basic), 19 W (typ.), 21 W (max), Power & Environmental Conditions / Standby Power Consumption: <0.5 W, Power & Environmental Conditions / Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F), Power & Environmental Conditions / Operating Humidity: 10%–85% (RH), Power & Environmental Conditions / Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F), Power & Environmental Conditions / Storage Humidity: 5%–90% (RH), General / Inclined Angle: -5° / 15°, General / Product Dimensions: 539.2 mm × 320.4 mm × 39.1 mm (21.23" × 12.61" × 1.54") (W × H × D), without wall-mount bracket, General / Package Size: 612 mm × 405 mm × 101 mm (24.09" × 15.94" × 3.98"） (W × H × D), General / Unilateral Splicing: U/L/R/D: 2.1 mm/2.1 mm/2.1 mm/15.9 mm, General / Net Weight: 2.82 kg (6.22 lb), General / Gross Weight: 3.84 kg (8.47 lb), General / Casing Color: Black, General / Control Mode: Five-button, General / Status Indicator Light: Yes, General / Wall Mount VESA: 75 mm × 75 mm (2.95" × 2.95"), General / Accessory: Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc., General / Optional Accessory: Wall mount, Certification / Certifications: CE EMC, CE LVD, CE ERP

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
