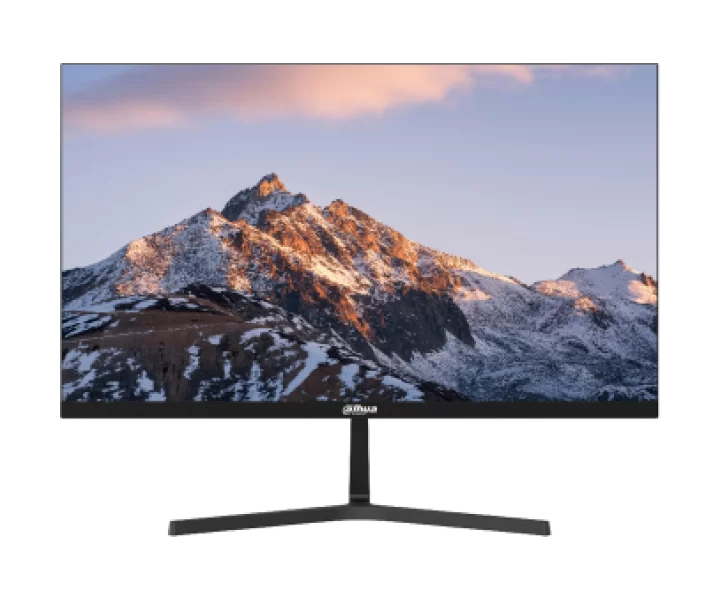

Dahua DHI-LM24-B221 özellikleri ve fiyatları

Dahua DHI-LM24-B221 teknik özellikleri

Model kodu

DHI-LM24-B221

part Number

DHI-LM24-B221

Ekran teknolojisi

IPS

Ekran çözünürlüğü

1920 x 1080

Ekran oranı

16:9

contrast Ratio

1200:1

viewing Angle

178° (H) / 178° (V)

Ekran renk sayısı

16.7M colors

Renk gamı

72% NTSC

screen Finish

Haze 25%, 3H

vesa Mount

75 mm × 75 mm (2.95" × 2.95")

power Supply Type

12 VDC, 2.5 A

Boyutlar

539.2 mm × 320.4 mm × 39.1 mm (21.23" × 12.61" × 1.54") (W × H × D), without wall-mount bracket

tilt

-5° / 15°

ports

1 × HDMI 2.0 (1920 × 1080@144 Hz), 1 ×DP 1.4 (1920 × 1080@144 Hz)

Ses çıkışı

1 × Audio out

Kutu içeriği

Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc.

Ekran boyutu

23.8 inç

Ekran yenileme hızı

144 Hz

Tepe parlaklık

250 nit

response Time

1

response Time Method

MPRT 1 ms

Ağırlık

2820 g

power Consumption

19

Ekran özellikleri

Standby power (literal limit): <0.5 W

resolution Conditions

1920 (H) × 1080 (V); 1 × HDMI 2.0 (1920 × 1080@144 Hz), 1 ×DP 1.4 (1920 × 1080@144 Hz)

maximum Refresh Rate Conditions

144 Hz; 1 × HDMI 2.0 (1920 × 1080@144 Hz), 1 ×DP 1.4 (1920 × 1080@144 Hz)

Üreticinin ayrıntılı teknik bilgileri

Display / Model: DHI-LM24-B221, Display / LCD Technology: IPS, Display / Backlight: ELED, Display / Screen Size: 23.8 inch, Display / Aspect Ratio: 16:9, Display / Viewing Size: 527.04 (H) × 296.46 (V) mm, Display / Screen-to-Body Ratio: ≥90%, Display / Viewing Angle: 178° (H) / 178° (V), Display / Display Mode: Horizontal, Display / Pixel Pitch: 0.2745 mm × 0.2745 mm, Display / Pixels Per Inch: 92.56, Display / Resolution: 1920 (H) × 1080 (V), Display / Refresh Rate: 144 Hz, Display / Display Color: 16.7M colors, Display / Color Gamut: 72% NTSC, Display / Brightness: 250 cd/m² (typ.), Display / Contrast Ratio: 1200:1, Display / Response Time: MPRT 1 ms, Display / Operation Hours: 7 × 16 H, Display / Lifespan: 30,000 hrs, Display / Surface Treatment: Haze 25%, 3H, Display / Low Blue Light: Software blue light protection, Device Ports / Input Port: 1 × HDMI 2.0 (1920 × 1080@144 Hz), 1 ×DP 1.4 (1920 × 1080@144 Hz), Device Ports / Output Port: 1 × Audio out, Power & Environmental Conditions / Power Supply: 12 VDC, 2.5 A, Power & Environmental Conditions / Power Consumption: 18 W (basic), 19 W (typ.), 21 W (max), Power & Environmental Conditions / Standby Power Consumption: <0.5 W, Power & Environmental Conditions / Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F), Power & Environmental Conditions / Operating Humidity: 10%–85% (RH), Power & Environmental Conditions / Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F), Power & Environmental Conditions / Storage Humidity: 5%–90% (RH), General / Inclined Angle: -5° / 15°, General / Product Dimensions: 539.2 mm × 320.4 mm × 39.1 mm (21.23" × 12.61" × 1.54") (W × H × D), without wall-mount bracket, General / Package Size: 612 mm × 405 mm × 101 mm (24.09" × 15.94" × 3.98"） (W × H × D), General / Frame Width: U/L/R/D: 2.1 mm/2.1 mm/2.1 mm/15.9 mm, General / Net Weight: 2.82 kg (6.22 lb), General / Gross Weight: 3.84 kg (8.47 lb), General / Casing Color: Black, General / Control Mode: Five-button, General / Status Indicator Light: Yes, General / Wall Mount VESA: 75 mm × 75 mm (2.95" × 2.95"), General / Accessory: Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc., General / Optional Accessory: Wall mount, Certification / Certifications: CE EMC, CE LVD, CE ERP
