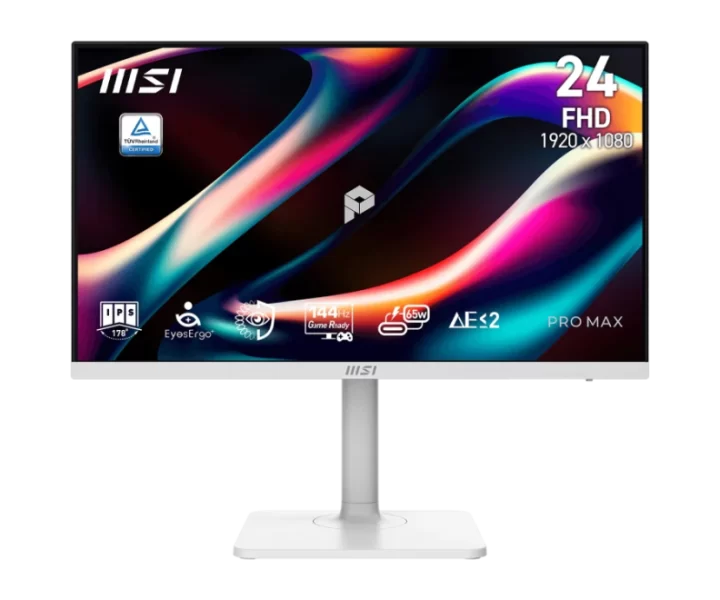

PRO MAX 241PHW E14 özellikleri ve fiyatları

PRO MAX 241PHW E14 teknik özellikleri

Model kodu

PRO MAX 241PHW E14

part Number

9S6-3PF44H-003

Ekran boyutu

23.8 inç

Ekran çözünürlüğü

1920 x 1080

Ekran teknolojisi

IPS

Ekran yenileme hızı

144 Hz

maximum Refresh Rate Conditions

Dynamic Refresh Rate technology: FreeSync; Dynamic Refresh Rate Activated Range: 48~144Hz; Signal Frequency: 54~169.78 KHz(H) /48~144 Hz(V); Refresh Rate: 144HZ

resolution Conditions

Resolution: 1920x1080 (FHD); Dynamic Refresh Rate technology: FreeSync; Dynamic Refresh Rate Activated Range: 48~144Hz; Signal Frequency: 54~169.78 KHz(H) /48~144 Hz(V); Refresh Rate: 144HZ

Ekran oranı

16:9

contrast Ratio

1500:1

screen Curvature

Flat

viewing Angle

178°(H)/178°(V)

screen Finish

Anti-glare with Circular Polarization

Renk derinliği

8 bits (6 bits + FRC)

Ekran renk sayısı

16.7M

power Supply Type

Internal Power Board

vesa Mount

75x75mm

tilt

-5° ~ 20°

swivel

-30° ~ 30°

pivot

-90° ~ 90°

height Adjustment

0 ~ 110 mm

Tepe parlaklık

300 nit

response Time

4

response Time Method

GtG

Renk gamı

NTSC (CIE1976 area percentage/overlap): 108%/88%; NTSC (CIE1931 area percentage/overlap): 89%/82%; sRGB (CIE1976 area percentage/overlap): 122%/99%; sRGB (CIE1931 area percentage/overlap): 126%/99%; Adobe RGB (CIE1976 area percentage/overlap): 104%/93%; Adobe RGB (CIE1931 area percentage/overlap): 93%/85%; DCI-P3 (CIE1976 area percentage/overlap): 99%/96%; DCI-P3 (CIE1931 area percentage/overlap): 93%/92%; Rec.709 (CIE1976 area percentage/overlap): 122%/99%; Rec.709 (CIE1931 area percentage/overlap): 126%/99%; Rec.2020 (CIE1976 area percentage/overlap): 71%/72%; Rec.2020 (CIE1931 area percentage/overlap): 66%/67%

adaptive Sync

Dynamic Refresh Rate technology: FreeSync

ports

USB Type C (DisplayPort Alternate): 1, Headphone-out: 1, USB 3.2 Gen 1 Type A: 2, USB 3.2 Gen 1 Type B: 1, HDMI: 1, HDMI version: 2.0b, HDMI HDCP version: 2.2, DisplayPort: 1, DisplayPort version: 1.2a, DisplayPort HDCP version: 2.2

HDMI bağlantı sayısı

1 adet

DisplayPort bağlantı sayısı

1 adet

HDMI sürümü

2.0b

DisplayPort sürümü

1.2a

Ses çıkışı

Headphone-out: 1

Boyutlar

Product Dimension with Stand (WxDxH) (mm): 541.93 x 200.81 x 381.11; Product Dimension without Stand (WxDxH) (mm): 541.93 x 65.44 x 322.28; Stand Dimension (WxDxH) (mm): 230.81 x 200.81 x 415.72

Ağırlık

5350 g

power Standby

0.5

Hoparlör özellikleri

3Wx 2

ergonomic Features

Adjustment (Tilt): -5° ~ 20°; Adjustment (Swivel): -30° ~ 30°; Adjustment (Height): 0 ~ 110 mm; Adjustment (Pivot): -90° ~ 90°

Kutu içeriği

Power Cord Type: C13, HDMI Cable: 1, USB Type A to Type B Cable: 1, USB Type C to Type C Cable: 1

Üreticinin ayrıntılı teknik bilgileri

Manufacturer technical table / Part No: 9S6-3PF44H-003; Manufacturer technical table / Color: ID1/White-White; Manufacturer technical table / Screen Size: 23.8" (60.45cm); Manufacturer technical table / Active Display Area (mm): 527.04(H) x 296.46(V); Manufacturer technical table / Curvature: Flat; Manufacturer technical table / Panel Type: IPS; Manufacturer technical table / Resolution: 1920x1080 (FHD); Manufacturer technical table / Pixel pitch (mm): 0.2745(H)x0.2745(V); Manufacturer technical table / Aspect Ratio: 16:9; Manufacturer technical table / Dynamic Refresh Rate technology: FreeSync; Manufacturer technical table / Dynamic Refresh Rate Activated Range: 48~144Hz; Manufacturer technical table / HDR (High dynamic range): HDR Ready; Manufacturer technical table / SDR Brightness (nits): 300; Manufacturer technical table / Contrast Ratio: 1500:1; Manufacturer technical table / DCR (Dynamic Contrast Ratio): 100000000:1; Manufacturer technical table / Signal Frequency: 54~169.78 KHz(H) /48~144 Hz(V); Manufacturer technical table / Refresh Rate: 144HZ; Manufacturer technical table / Response Time (MPRT): 1ms(MPRT); Manufacturer technical table / Response Time (GTG): 4ms; Manufacturer technical table / View Angles: 178°(H)/178°(V); Manufacturer technical table / NTSC (CIE1976 area percentage/overlap): 108%/88%; Manufacturer technical table / NTSC (CIE1931 area percentage/overlap): 89%/82%; Manufacturer technical table / sRGB (CIE1976 area percentage/overlap): 122%/99%, Manufacturer technical table / sRGB (CIE1931 area percentage/overlap): 126%/99%; Manufacturer technical table / Adobe RGB (CIE1976 area percentage/overlap): 104%/93%; Manufacturer technical table / Adobe RGB (CIE1931 area percentage/overlap): 93%/85%; Manufacturer technical table / DCI-P3 (CIE1976 area percentage/overlap): 99%/96%; Manufacturer technical table / DCI-P3 (CIE1931 area percentage/overlap): 93%/92%; Manufacturer technical table / Rec.709 (CIE1976 area percentage/overlap): 122%/99%; Manufacturer technical table / Rec.709 (CIE1931 area percentage/overlap): 126%/99%; Manufacturer technical table / Rec.2020 (CIE1976 area percentage/overlap): 71%/72%; Manufacturer technical table / Rec.2020 (CIE1931 area percentage/overlap): 66%/67%; Manufacturer technical table / Surface Treatment: Anti-glare with Circular Polarization; Manufacturer technical table / Display Colors: 16.7M; Manufacturer technical table / Color bit: 8 bits (6 bits + FRC); Manufacturer technical table / USB Type C (DisplayPort Alternate): 1; Manufacturer technical table / Headphone-out: 1; Manufacturer technical table / USB 3.2 Gen 1 Type A: 2; Manufacturer technical table / USB 3.2 Gen 1 Type B: 1; Manufacturer technical table / Lock type: Kensington Lock; Manufacturer technical table / Speaker: 3Wx 2; Manufacturer technical table / HDMI: 1; Manufacturer technical table / HDMI version: 2.0b; Manufacturer technical table / HDMI HDCP version: 2.2; Manufacturer technical table / DisplayPort: 1, Manufacturer technical table / DisplayPort version: 1.2a; Manufacturer technical table / DisplayPort HDCP version: 2.2; Manufacturer technical table / Warranty: 36M; Manufacturer technical table / Power Type: Internal Power Board; Manufacturer technical table / Power Input: 100~240V, 50/60Hz; Manufacturer technical table / On-mode Power Consumption (KWh/1000h): 14; Manufacturer technical table / Annual Energy Consumption (KWh): 14; Manufacturer technical table / Standby-mode Power Consumption (W): 0.5; Manufacturer technical table / Off-mode Power Consumption (W): 0.3; Manufacturer technical table / Energy Efficiency Rating: D; Manufacturer technical table / Power Cord Type: C13; Manufacturer technical table / DisplayPort Cable: 0; Manufacturer technical table / HDMI Cable: 1; Manufacturer technical table / DVI Cable: 0; Manufacturer technical table / USB Type A to Type B Cable: 1; Manufacturer technical table / USB Type C to Type A Cable: 0; Manufacturer technical table / USB Type C to Type C Cable: 1; Manufacturer technical table / Thunderbolt Cable: 0; Manufacturer technical table / VGA Cable: 0; Manufacturer technical table / 3.5mm audio Cable: 0; Manufacturer technical table / 3.5mm combo audio Cable: 0; Manufacturer technical table / 3.5mm Mic Cable: 0; Manufacturer technical table / Power Cord: 1; Manufacturer technical table / AC Adaptor: 0; Manufacturer technical table / Quick Guide: 1; Manufacturer technical table / Warranty Card: 0, Manufacturer technical table / Mouse Bungee Unit: 0; Manufacturer technical table / Adjustment (Tilt): -5° ~ 20°; Manufacturer technical table / Adjustment (Swivel): -30° ~ 30°; Manufacturer technical table / Adjustment (Height): 0 ~ 110 mm; Manufacturer technical table / Adjustment (Pivot): -90° ~ 90°; Manufacturer technical table / VESA Mounting: 75x75mm; Manufacturer technical table / Product Dimension with Stand (WxDxH) (mm): 541.93 x 200.81 x 381.11; Manufacturer technical table / Product Dimension without Stand (WxDxH) (mm): 541.93 x 65.44 x 322.28; Manufacturer technical table / Stand Dimension (WxDxH) (mm): 230.81 x 200.81 x 415.72; Manufacturer technical table / Weight (Net kg): 5.35; Manufacturer technical table / Weight Without Stand (kg): 3.45; Manufacturer technical table / Inside Carton Dimension (WxDxH) (cm): 81.4 x 14.9 x 41; Manufacturer technical table / Outer Carton Dimension (WxDxH) (cm): 82.9 x 16.2 x 43.4; Manufacturer technical table / Weight (Gross kg): 8.; Manufacturer technical table / EAN: 4711377396288
