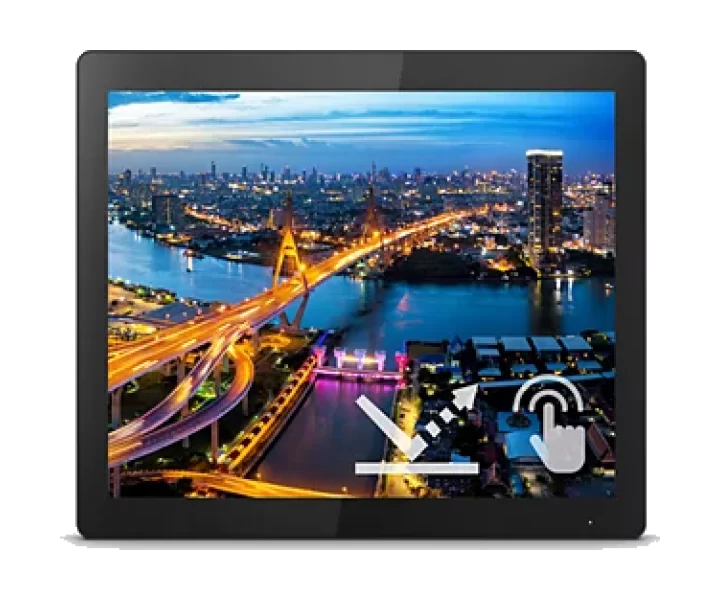

Philips Open-frame touch-screen monitor 152B1TFL/00 özellikleri ve fiyatları

Philips Open-frame touch-screen monitor 152B1TFL/00 teknik özellikleri

Model kodu

152B1TFL/00

Ekran boyutu

15 inç

Ekran teknolojisi

TFT-LCD (TN)

Ekran çözünürlüğü

1024 x 768

Ekran yenileme hızı

75 Hz

maximum Refresh Rate Conditions

Maximum resolution: 1024 x 768 @ 75Hz*, Scanning Frequency: 30 - 60 kHz (H) / 50 - 75 Hz (V), The maximum resolution works for either HDMI input or DP input.

resolution Conditions

Maximum resolution: 1024 x 768 @ 75Hz*, Scanning Frequency: 30 - 60 kHz (H) / 50 - 75 Hz (V), The maximum resolution works for either HDMI input or DP input.

Ekran oranı

4:3

Ekran renk sayısı

16.2 M

viewing Angle

160º (H)/150º (V), @ C/R > 10

contrast Ratio

800:1

power Supply Type

External, 100–240 VAC, 50–60 Hz

Piksel yoğunluğu

85 PPI

response Time

4

response Time Method

Response time (typical): 4 ms (Gray to Gray)*; Response time value equal to SmartResponse

Renk gamı

Colour gamut (typical): NTSC 60% (CIE 1931), sRGB: Yes

ports

Signal Input: VGA (Analogue), DVI-D (digital, HDCP), DisplayPort 1.2, HDMI 1.4, Sync Input: Separate Sync, Sync on Green, Audio (In/Out): Audio out, USB:: USB 3.2 x 1 (Upstream), USB 3.2 x 2 (Downstream with 1 fast charge B.C 1.2), mini USB x 1

Ses çıkışı

Audio out

Boyutlar

Packaging in mm (W x H x D): 465 x 350 x 123 mm, Product without stand (mm): 350 x 286 x 49 mm

power Consumption

9.6

power Standby

0.3

Ekran özellikleri

Panel Size: 15 inch / 38.1 cm, Aspect ratio: 4:3, LCD panel type: TFT-LCD (TN), Backlight type: W-LED system, Pixel pitch: 0.297 x 0.297 mm, Brightness: 450, Display colours: 16.2 M, Colour gamut (typical): NTSC 60% (CIE 1931), Contrast ratio (typical): 800:1, SmartContrast: 50,000,000:1, Response time (typical): 4 ms (Gray to Gray)*, Viewing angle: 160º (H)/150º (V), @ C/R > 10, Picture enhancement: SmartImage, Maximum resolution: 1024 x 768 @ 75Hz*, Effective viewing area: 304.128 (H) x 228.096 (V), Scanning Frequency: 30 - 60 kHz (H) / 50 - 75 Hz (V), sRGB: Yes, Flicker-free: Yes, Pixel Density: 85 PPI, LowBlue Mode: Yes, EasyRead: Yes

Kutu içeriği

Cables: HDMI cable, DP cable, USB-A to B cable, Power cable, Monitor: Yes, User Documentation: Yes, L-Brackets system: Yes, OSD keypad: Yes

Üreticinin ayrıntılı teknik bilgileri

Picture/Display / Panel Size: 15 inch / 38.1 cm; Picture/Display / Aspect ratio: 4:3; Picture/Display / LCD panel type: TFT-LCD (TN); Picture/Display / Backlight type: W-LED system; Picture/Display / Pixel pitch: 0.297 x 0.297 mm; Picture/Display / Brightness: 450; Picture/Display / Display colours: 16.2 M; Picture/Display / Colour gamut (typical): NTSC 60% (CIE 1931); Picture/Display / Contrast ratio (typical): 800:1; Picture/Display / SmartContrast: 50,000,000:1; Picture/Display / Response time (typical): 4 ms (Gray to Gray)*; Picture/Display / Viewing angle: 160º (H)/150º (V), @ C/R > 10; Picture/Display / Picture enhancement: SmartImage; Picture/Display / Maximum resolution: 1024 x 768 @ 75Hz*; Picture/Display / Effective viewing area: 304.128 (H) x 228.096 (V); Picture/Display / Scanning Frequency: 30 - 60 kHz (H) / 50 - 75 Hz (V); Picture/Display / sRGB: Yes; Picture/Display / Flicker-free: Yes; Picture/Display / Pixel Density: 85 PPI; Picture/Display / LowBlue Mode: Yes; Picture/Display / EasyRead: Yes; Touch / Brightness: 380 nits (typ); Touch / Ingress protection: IP65 - front only; Touch / Operating system: Windows 10 / 8.1 / 8 / 7; Android 11 / 10 / 9 / 8*; Touch / Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD; Touch / Touch active area: 304.128 mm (H) x 228.096 mm (V); Touch / Touch glass hardness: 7 H; Touch / Touch interface: USB; Touch / Touch method: Stylus, Finger, Glove*; Touch / Touchpoints: 10 point, Touch / Touch technology: Projected capacitive; Touch / Palm rejection area: >= 30 x 30 mm; Touch / Touch glass coating: AG coating (Haze: 5% -/+ 3%, Gloss: 80 -/+ 10); Connectivity / Signal Input: VGA (Analogue), DVI-D (digital, HDCP), DisplayPort 1.2, HDMI 1.4; Connectivity / Sync Input: Separate Sync, Sync on Green; Connectivity / Audio (In/Out): Audio out; Connectivity / USB:: USB 3.2 x 1 (Upstream), USB 3.2 x 2 (Downstream with 1 fast charge B.C 1.2), mini USB x 1; Convenience / Plug & Play Compatibility: DDC/CI, sRGB, Windows 10/8.1/8/7; Convenience / User convenience: SmartImage, Input, Brightness, Menu, Power On/Off; Convenience / OSD Languages: Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian; Convenience / Other convenience: Kensington lock, OSD keypad control, VESA mount (100 x 100 mm); Convenience / Control software: SmartControl; Power / ECO mode: 6.1 W (typ.); Power / Power supply: External, 100–240 VAC, 50–60 Hz; Power / Off mode: 0.3 W (typ.); Power / On mode: 9.6 W (typ.); Power / Standby mode: 0.3 W (typ.); Power / Power LED indicator: Operation - White, Standby mode - White (flashing); Power / Energy Label Class: D; Dimensions / Packaging in mm (W x H x D): 465 x 350 x 123 mm; Dimensions / Product without stand (mm): 350 x 286 x 49 mm; Weight / Product with packaging (kg): 4.13 kg, Weight / Product without stand (kg): 3.42 kg; Operating conditions / Altitude: Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m); Operating conditions / Temperature range (operation): 0°C to 40 °C; Operating conditions / Relative humidity: 20%-80 %; Operating conditions / Temperature range (storage): -20°C to 60 °C; Operating conditions / MTBF (demonstrated): 70,000 hrs (excluded backlight); Operating conditions / Installation or placement: Landscape / Portrait / Face up; Operating conditions / Operational time: 24/7; Sustainability / Environmental and energy: RoHS; Sustainability / Recyclable packaging material: 100; Sustainability / Specific Substances: PVC/BFR free housing, Mercury free; Compliance and standards / Regulatory Approvals: CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, TUV Eye Comfort certified; Cabinet / Finish: Texture; Cabinet / Front bezel: Black; Cabinet / Rear cover: Black; What's in the box? / Cables: HDMI cable, DP cable, USB-A to B cable, Power cable; What's in the box? / Monitor: Yes; What's in the box? / User Documentation: Yes; What's in the box? / L-Brackets system: Yes; What's in the box? / OSD keypad: Yes; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-152B1TFL_00-0: The maximum resolution works for either HDMI input or DP input.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-152B1TFL_00-1: Response time value equal to SmartResponse, Manufacturer model-specific notes / Note HCDIS-TPV_PRD-152B1TFL_00-2: NTSC area based on CIE 1976; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-152B1TFL_00-3: sRGB area based on CIE 1931; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-152B1TFL_00-4: Glove material and thickness: Nitrile (0.15 mm), Cotton (0.31 mm), CPE (0.03 mm), PVC (0.12 mm); Manufacturer model-specific notes / Note HCDIS-TPV_PRD-152B1TFL_00-5: Please refer to "SmoothTouch" in the user manual for more details on operating system support when using the touch function.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-152B1TFL_00-6: The monitor may look different from feature images.
