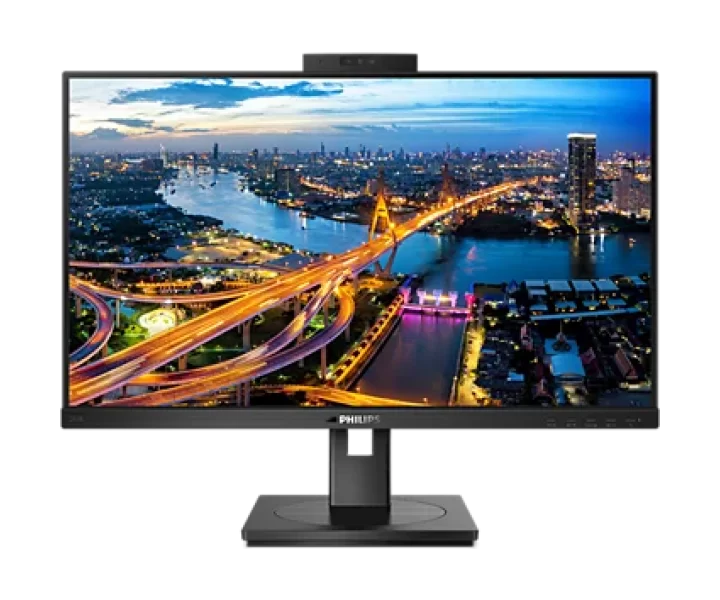

Philips Business Monitor LCD monitor with USB docking 243B1JH/00 özellikleri ve fiyatları

Philips Business Monitor LCD monitor with USB docking 243B1JH/00 teknik özellikleri

Model kodu

243B1JH/00

Ekran boyutu

23.8 inç

Ekran teknolojisi

IPS technology

Ekran çözünürlüğü

1920 x 1080

Ekran yenileme hızı

75 Hz

maximum Refresh Rate Conditions

Maximum resolution: 1920 x 1080 @ 75 Hz*, Scanning Frequency: 30–85 kHz (H) / 48–75 Hz (V), The maximum resolution works for either USB-C, DP or HDMI input., DisplayPort out works only under either DP in or USB-C in.

resolution Conditions

Maximum resolution: 1920 x 1080 @ 75 Hz*, Scanning Frequency: 30–85 kHz (H) / 48–75 Hz (V), The maximum resolution works for either USB-C, DP or HDMI input., DisplayPort out works only under either DP in or USB-C in.

Ekran oranı

16:9

screen Finish

Anti-Glare, 3H, Haze 25%

Ekran renk sayısı

16.7 M

viewing Angle

178º (H)/178º (V), @ C/R > 10

contrast Ratio

1000:1

tilt

-5~30 degree

swivel

-/+ 180 degree

pivot

-/+ 90 degree

height Adjustment

150 mm

power Supply Type

External, 100–240 VAC, 50–60 Hz

Piksel yoğunluğu

93 PPI

response Time

4

response Time Method

Response time (typical): 4 ms (Grey to Grey)*; Response time value equal to SmartResponse

Renk gamı

Colour gamut (typical): NTSC 88%*, sRGB 105%*, sRGB: Yes, sRGB Area based on CIE1931

ports

Signal Input: DisplayPort 1.4 x 1, HDMI 1.4 x 1, USB-C x 1 (DP Alt mode, DisplayLink)*, Sync Input: Separate Sync, Audio (In/Out): Audio out, RJ45: Ethernet LAN up to 1 G*, Wake on LAN, Signal Output: DisplayPort out*, USB:: Upstream: USB-C 3.2 Gen 1 x 1; Downstream: USB-C x 1 (PD 15 W), USB-A 3.2 x 4 (with 1 fast charge B.C 1.2), HDCP: HDCP 1.4 (HDMI/DP/USB-C video/DisplayLink), HBR3: for USB-C

HDMI bağlantı sayısı

1 adet

HDMI sürümü

HDMI 1.4 x 1

DisplayPort bağlantı sayısı

1 adet

DisplayPort sürümü

DisplayPort 1.4 x 1

Ses çıkışı

Audio out

USB bağlantısı

Power delivery: USB PD version 3.0, USB-C max. power delivery: Up to 100 W* (5 V/3 A; 7 V/3 A; 9 V/3 A; 10 V/3 A; 12 V/3 A; 15 V/3 A; 20 V/4.5 A), USB-C: Reversible plug connector

Hoparlör özellikleri

3 W x 2

Stereo hoparlör

Var

stand Adjustments

Pivot: -/+ 90 degree, Height adjustment: 150 mm, Swivel: -/+ 180 degree, Tilt: -5~30 degree

ergonomic Features

Pivot: -/+ 90 degree, Height adjustment: 150 mm, Swivel: -/+ 180 degree, Tilt: -5~30 degree

Boyutlar

Packaging in mm (W x H x D): 730 x 450 x 139 mm, Product without stand (mm): 540 x 323 x 51 mm, Product with stand (max height): 540 x 501 x 205 mm

Ağırlık

4880 g

power Standby

0.5

Ekran özellikleri

Panel Size: 23.8 inch/60.5 cm, Aspect ratio: 16:9, LCD panel type: IPS technology, Backlight type: W-LED system, Pixel pitch: 0.2745 x 0.2745 mm, Display colours: 16.7 M, Colour gamut (typical): NTSC 88%*, sRGB 105%*, Contrast ratio (typical): 1000:1, SmartContrast: 50,000,000:1, Response time (typical): 4 ms (Grey to Grey)*, Viewing angle: 178º (H)/178º (V), @ C/R > 10, Picture enhancement: SmartImage, Maximum resolution: 1920 x 1080 @ 75 Hz*, Effective viewing area: 578.04 (H) x 296.46 (V), Scanning Frequency: 30–85 kHz (H) / 48–75 Hz (V), sRGB: Yes, Flicker-free: Yes, Pixel Density: 93 PPI, LowBlue Mode: Yes, Display Screen Coating: Anti-Glare, 3H, Haze 25%, EasyRead: Yes

Kutu içeriği

Cables: HDMI cable, DP cable, USB-C/A Y cable, DC out cable, Power cable, Monitor with stand: Yes, User Documentation: Yes

Üreticinin ayrıntılı teknik bilgileri

Picture/Display / Panel Size: 23.8 inch/60.5 cm; Picture/Display / Aspect ratio: 16:9; Picture/Display / LCD panel type: IPS technology; Picture/Display / Backlight type: W-LED system; Picture/Display / Pixel pitch: 0.2745 x 0.2745 mm; Picture/Display / Display colours: 16.7 M; Picture/Display / Colour gamut (typical): NTSC 88%*, sRGB 105%*; Picture/Display / Contrast ratio (typical): 1000:1; Picture/Display / SmartContrast: 50,000,000:1; Picture/Display / Response time (typical): 4 ms (Grey to Grey)*; Picture/Display / Viewing angle: 178º (H)/178º (V), @ C/R > 10; Picture/Display / Picture enhancement: SmartImage; Picture/Display / Maximum resolution: 1920 x 1080 @ 75 Hz*; Picture/Display / Effective viewing area: 578.04 (H) x 296.46 (V); Picture/Display / Scanning Frequency: 30–85 kHz (H) / 48–75 Hz (V); Picture/Display / sRGB: Yes; Picture/Display / Flicker-free: Yes; Picture/Display / Pixel Density: 93 PPI; Picture/Display / LowBlue Mode: Yes; Picture/Display / Display Screen Coating: Anti-Glare, 3H, Haze 25%; Picture/Display / EasyRead: Yes; Connectivity / Signal Input: DisplayPort 1.4 x 1, HDMI 1.4 x 1, USB-C x 1 (DP Alt mode, DisplayLink)*; Connectivity / Sync Input: Separate Sync; Connectivity / Audio (In/Out): Audio out; Connectivity / RJ45: Ethernet LAN up to 1 G*, Wake on LAN; Connectivity / Signal Output: DisplayPort out*; Connectivity / USB:: Upstream: USB-C 3.2 Gen 1 x 1; Downstream: USB-C x 1 (PD 15 W), USB-A 3.2 x 4 (with 1 fast charge B.C 1.2), Connectivity / HDCP: HDCP 1.4 (HDMI/DP/USB-C video/DisplayLink); Connectivity / HBR3: for USB-C; USB / Power delivery: USB PD version 3.0; USB / Super speed: Data and Video transfer; USB / DP: Built-in Display Port Alt mode; USB / USB-C max. power delivery: Up to 100 W* (5 V/3 A; 7 V/3 A; 9 V/3 A; 10 V/3 A; 12 V/3 A; 15 V/3 A; 20 V/4.5 A); USB / USB-C: Reversible plug connector; Convenience / Built-in Speakers: 3 W x 2; Convenience / Plug & Play Compatibility: DDC/CI, Mac OS X, sRGB, Windows 10/8.1/8/7; Convenience / User convenience: SmartImage, Input, PowerSensor, Menu, Power On/Off; Convenience / OSD Languages: Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian; Convenience / Other convenience: Kensington lock, VESA mount (100 x 100 mm); Convenience / Control software: SmartControl; Convenience / Built-in webcam: Pop-up 2.0 megapixel FHD camera with microphone and LED indictor (for Windows 10 Hello); Stand / Pivot: -/+ 90 degree; Stand / Height adjustment: 150 mm; Stand / Swivel: -/+ 180 degree; Stand / Tilt: -5~30 degree; Power / ECO mode: 13.5 W (typ.); Power / Power supply: External, 100–240 VAC, 50–60 Hz; Power / Off mode: 0.3 W (typ.); Power / On mode: 14.2 W (typ.) (EnergyStar test method); Power / Standby mode: 0.5 W (typ.), Power / Power LED indicator: Operation - White, Standby mode - White (flashing); Power / Energy Label Class: E; Dimensions / Packaging in mm (W x H x D): 730 x 450 x 139 mm; Dimensions / Product without stand (mm): 540 x 323 x 51 mm; Dimensions / Product with stand (max height): 540 x 501 x 205 mm; Weight / Product with packaging (kg): 7.56 kg; Weight / Product with stand (kg): 4.88 kg; Weight / Product without stand (kg): 3.27 kg; Operating conditions / Altitude: Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m); Operating conditions / Temperature range (operation): 0°C to 40 °C; Operating conditions / Relative humidity: 20%-80 %; Operating conditions / Temperature range (storage): -20°C to 60 °C; Operating conditions / MTBF (demonstrated): 70,000 hrs (excluded backlight); Sustainability / Environmental and energy: PowerSensor, LightSensor, Energy Star 8.0, EPEAT*, RoHS, TCO Certified Edge; Sustainability / Post-consumer recycled plastic: 85%; Sustainability / Recyclable packaging material: 100; Sustainability / Specific Substances: PVC/BFR free housing, Mercury free; Compliance and standards / Regulatory Approvals: UKRAINIAN, CB, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified; Cabinet / Finish: Texture; Cabinet / Foot: Black; Cabinet / Front bezel: Black; Cabinet / Rear cover: Black; What's in the box? / Cables: HDMI cable, DP cable, USB-C/A Y cable, DC out cable, Power cable, What's in the box? / Monitor with stand: Yes; What's in the box? / User Documentation: Yes; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-0: "IPS" word mark / trademark and related patents on technologies belong to their respective owners.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-1: The maximum resolution works for either USB-C, DP or HDMI input.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-2: Response time value equal to SmartResponse; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-3: NTSC Area based on CIE 1976; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-4: sRGB Area based on CIE1931; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-5: DisplayPort out works only under either DP in or USB-C in.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-6: Mac OS does not support DP-Out MST extension function.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-7: USB-C DP Alt mode means USB-C to C cable, USB-C DisplayLink means USB-C to A cable.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-8: DC power out function only supports Intel NUC with 19 V@4.73 A, max 90 W. Only one PC or notebook should be connected to either USB-C or DC out port for power passthrough function), Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-9: If your Ethernet connection seems slow, please enter the OSD menu and select USB 3.0 or a higher version that can support the LAN speed up to 1G.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-10: For Video transmission via USB-C, your Notebook/device must support USB-C DP Alt mode; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-11: Activities such as screen sharing and online streaming over the Internet can impact your network performance. Your hardware and network bandwidth will determine the overall audio and video quality.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-12: For USB-C power and charging function, your Notebook/device must support USB-C standard Power Delivery specifications. Please check with your Notebook user manual or manufacturer for more details.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-13: USB-C max. power delivery is up to 100 W because of Smart Power function. User can adjust monitor brightness setting to get different levels of power delivery. 1st USB-C port can support up to 90 W max and 2nd USB-C port can support up to 15 W max. For more information, please refer to user manual.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-14: EPEAT rating is valid only where Philips registers the product. Please visit https://www.epeat.net/ for registration status in your country., Manufacturer model-specific notes / Note HCDIS-TPV_PRD-243B1JH_00-15: The monitor may look different from feature images.
