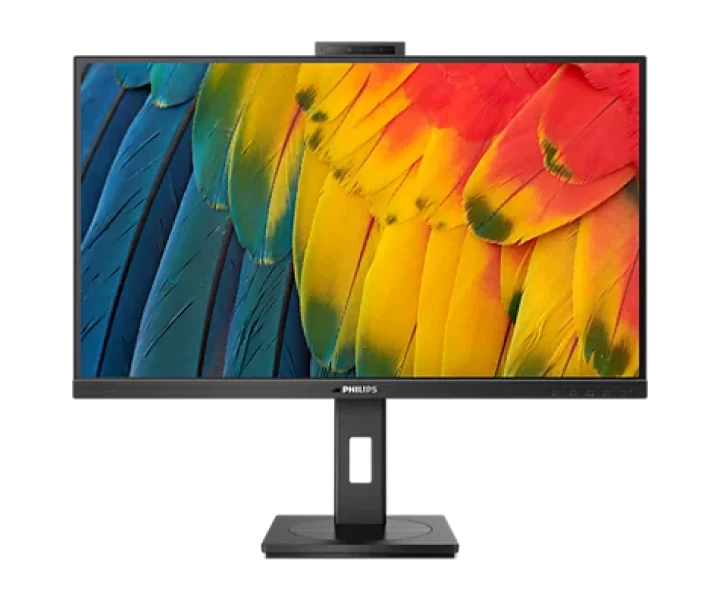

Philips Business Monitor LCD monitor with USB-C docking 24B1U5301H/00 özellikleri ve fiyatları

Philips Business Monitor LCD monitor with USB-C docking 24B1U5301H/00 teknik özellikleri

Model kodu

24B1U5301H/00

Ekran boyutu

23.8 inç

Ekran teknolojisi

IPS technology

Ekran çözünürlüğü

1920 x 1080

Ekran yenileme hızı

75 Hz

maximum Refresh Rate Conditions

Maximum resolution: 1920 x 1080 @ 75 Hz, Scanning Frequency: 30 - 85 kHz (H) / 48 - 75 Hz (V)

resolution Conditions

Maximum resolution: 1920 x 1080 @ 75 Hz, Scanning Frequency: 30 - 85 kHz (H) / 48 - 75 Hz (V)

Ekran oranı

16:9

screen Finish

Anti-Glare, 3H, Haze 25%

Ekran renk sayısı

16.7 M (8 bit)

viewing Angle

178º (H)/178º (V), @ C/R > 10

contrast Ratio

1000:1

tilt

-5/30 degree

swivel

-/+ 180 degree

pivot

-/+90 degree

height Adjustment

150 mm

power Supply Type

Built-in, 100–240 VAC, 50–60 Hz

Piksel yoğunluğu

93 PPI

response Time

4

response Time Method

Response time (typical): 4 ms (Gray to Gray)*; Response time value equal to SmartResponse

Renk gamı

Colour gamut (typical): NTSC 88%*, sRGB 105%*, sRGB: Yes

ports

Signal Input: HDMI 1.4 x 1, DisplayPort 1.4 x 1, USB-C x 1 (upstream, DP Alt mode, Data, PD up to 90W), Sync Input: Separate Sync, Audio (In/Out): Audio out / Microphone in combo jack, RJ45: Ethernet LAN up to 1G*, Wake on LAN, Signal Output: DisplayPort out x 1, HDCP: HDCP 1.4 (HDMI / DisplayPort / USB-C); HDCP 2.2 (HDMI / DisplayPort / USB-C), HBR3: HBR 3 (DisplayPort, USB-C), USB Hub: USB 3.2, Gen 2 / 10 Gbps, USB-C upstream x 1 (Data), USB-A downstream x 4 (with 1 for fast charge B.C 1.2), USB-C downstream x 1 (Data, PD 15W)

HDMI bağlantı sayısı

1 adet

HDMI sürümü

HDMI 1.4 x 1

DisplayPort bağlantı sayısı

1 adet

DisplayPort sürümü

DisplayPort 1.4 x 1

Ses çıkışı

Audio out / Microphone in combo jack

USB bağlantısı

Max power delivery: USB-C up to 90W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.5A)

Hoparlör özellikleri

5 W x 2

Stereo hoparlör

Var

stand Adjustments

Pivot: -/+90 degree, Height adjustment: 150 mm, Swivel: -/+ 180 degree, Tilt: -5/30 degree

ergonomic Features

Pivot: -/+90 degree, Height adjustment: 150 mm, Swivel: -/+ 180 degree, Tilt: -5/30 degree

Boyutlar

Packaging in mm (W x H x D): 600 x 406 x 198 mm, Product without stand (mm): 540 x 323 x 51 mm, Product with stand (max height): 540 x 500 x 205 mm

Ağırlık

5500 g

power Standby

0.3

Ekran özellikleri

Panel Size: 23.8 inch / 60.5 cm, Aspect ratio: 16:9, LCD panel type: IPS technology, Backlight type: W-LED system, Pixel pitch: 0.2745 x 0.2745 mm, Brightness: 300, Display colours: 16.7 M (8 bit), Colour gamut (typical): NTSC 88%*, sRGB 105%*, Contrast ratio (typical): 1000:1, SmartContrast: 50,000,000:1, Response time (typical): 4 ms (Gray to Gray)*, Viewing angle: 178º (H)/178º (V), @ C/R > 10, Picture enhancement: SmartImage, Maximum resolution: 1920 x 1080 @ 75 Hz, Effective viewing area: 527.04 (H) x 296.46 (V), Scanning Frequency: 30 - 85 kHz (H) / 48 - 75 Hz (V), sRGB: Yes, Flicker-free: Yes, Pixel Density: 93 PPI, LowBlue Mode: Yes, Display Screen Coating: Anti-Glare, 3H, Haze 25%, EasyRead: Yes

Kutu içeriği

Cables: HDMI cable, DP cable, USB-C to C cable, Power cable, Monitor with stand: Yes, User Documentation: Yes

Renk seçenekleri

Finish: Texture, Foot: Black, Front bezel: Black, Rear cover: Black

Üreticinin ayrıntılı teknik bilgileri

Picture/Display / Panel Size: 23.8 inch / 60.5 cm; Picture/Display / Aspect ratio: 16:9; Picture/Display / LCD panel type: IPS technology; Picture/Display / Backlight type: W-LED system; Picture/Display / Pixel pitch: 0.2745 x 0.2745 mm; Picture/Display / Brightness: 300; Picture/Display / Display colours: 16.7 M (8 bit); Picture/Display / Colour gamut (typical): NTSC 88%*, sRGB 105%*; Picture/Display / Contrast ratio (typical): 1000:1; Picture/Display / SmartContrast: 50,000,000:1; Picture/Display / Response time (typical): 4 ms (Gray to Gray)*; Picture/Display / Viewing angle: 178º (H)/178º (V), @ C/R > 10; Picture/Display / Picture enhancement: SmartImage; Picture/Display / Maximum resolution: 1920 x 1080 @ 75 Hz; Picture/Display / Effective viewing area: 527.04 (H) x 296.46 (V); Picture/Display / Scanning Frequency: 30 - 85 kHz (H) / 48 - 75 Hz (V); Picture/Display / sRGB: Yes; Picture/Display / Flicker-free: Yes; Picture/Display / Pixel Density: 93 PPI; Picture/Display / LowBlue Mode: Yes; Picture/Display / Display Screen Coating: Anti-Glare, 3H, Haze 25%; Picture/Display / EasyRead: Yes; Connectivity / Signal Input: HDMI 1.4 x 1, DisplayPort 1.4 x 1, USB-C x 1 (upstream, DP Alt mode, Data, PD up to 90W); Connectivity / Sync Input: Separate Sync; Connectivity / Audio (In/Out): Audio out / Microphone in combo jack; Connectivity / RJ45: Ethernet LAN up to 1G*, Wake on LAN; Connectivity / Signal Output: DisplayPort out x 1, Connectivity / HDCP: HDCP 1.4 (HDMI / DisplayPort / USB-C); HDCP 2.2 (HDMI / DisplayPort / USB-C); Connectivity / HBR3: HBR 3 (DisplayPort, USB-C); Connectivity / USB Hub: USB 3.2, Gen 2 / 10 Gbps, USB-C upstream x 1 (Data), USB-A downstream x 4 (with 1 for fast charge B.C 1.2), USB-C downstream x 1 (Data, PD 15W); Power Delivery / Max power delivery: USB-C up to 90W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.5A); Power Delivery / Version: USB PD version 3.0; Convenience / Built-in Speakers: 5 W x 2; Convenience / Plug & Play Compatibility: DDC/CI, Mac OS X, sRGB, Windows 11/10/8.1/8/7; Convenience / User convenience: SmartImage, Input, User, Menu, Power On/Off; Convenience / OSD Languages: Brazil Portuguese, Czech, Dutch, English, French, Finnish, German, Greek, Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian; Convenience / Other convenience: Kensington lock, VESA mount (100 x 100 mm); Convenience / Control software: SmartControl; Convenience / MultiView: PIP/PBP mode, 2 x devices; Convenience / Built-in webcam: Pop-up 5.0 megapixel camera with microphone and LED indicator (for Windows Hello); Convenience / KVM: Yes (USB-C/USB-C); Convenience / Noise cancellation: Yes; Stand / Pivot: -/+90 degree; Stand / Height adjustment: 150 mm; Stand / Swivel: -/+ 180 degree; Stand / Tilt: -5/30 degree; Power / Power supply: Built-in, 100–240 VAC, 50–60 Hz, Power / Off mode: Zero watts with AC switch; Power / On mode: 15.3 W (typ.) (EnergyStar test method); Power / Standby mode: 0.3 W (typ.); Power / Power LED indicator: Operation - White, Standby mode - White (flashing); Power / Energy Label Class: E; Dimensions / Packaging in mm (W x H x D): 600 x 406 x 198 mm; Dimensions / Product without stand (mm): 540 x 323 x 51 mm; Dimensions / Product with stand (max height): 540 x 500 x 205 mm; Weight / Product with packaging (kg): 8.32 kg; Weight / Product with stand (kg): 5.50 kg; Weight / Product without stand (kg): 3.90 kg; Operating conditions / Altitude: Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m); Operating conditions / Temperature range (operation): 0°C to 40* °C; Operating conditions / Relative humidity: 20%-80 %; Operating conditions / Temperature range (storage): -20°C to 60 °C; Operating conditions / MTBF (demonstrated): 70,000 hrs (excluded backlight); Sustainability / Environmental and energy: PowerSensor, LightSensor, Energy Star 8.0, EPEAT*, TCO Certified Edge, RoHS; Sustainability / Post-consumer recycled plastic: 85%; Sustainability / Recyclable packaging material: 100; Sustainability / Specific Substances: Mercury free, PVC/BFR free housing; Compliance and standards / Regulatory Approvals: CB, CE Mark, FCC Class B, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified, cETLus; Cabinet / Finish: Texture; Cabinet / Foot: Black; Cabinet / Front bezel: Black, Cabinet / Rear cover: Black; What's in the box? / Cables: HDMI cable, DP cable, USB-C to C cable, Power cable; What's in the box? / Monitor with stand: Yes; What's in the box? / User Documentation: Yes; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-0: "IPS" word mark / trademark and related patents on technologies belong to their respective owners.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-1: Response time value equal to SmartResponse; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-2: NTSC area based on CIE 1976; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-3: sRGB area based on CIE 1931; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-4: For Video transmission via USB-C, your notebook/device must support USB-C DP Alt Mode; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-5: Activities such as screen sharing, online streaming video and audio over the Internet can impact your network performance. Your hardware, network bandwidth and its performance will determine overall audio and video quality.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-6: For USB-C power and charging function, your Notebook/device must support USB-C standard Power Delivery specifications. Please check with your Notebook user manual or manufacturer for more details., Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-7: If your Ethernet connection seems slow, please enter the OSD menu and select USB 3.0 or a higher version that can support the LAN speed up to 1G.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-8: When calculating energy costs saving from PowerSensor, both USB and Power delivery are excluded.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-9: EPEAT rating is valid only where Philips registers the product. Please visit https://www.epeat.net/ for registration status in your country.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-24B1U5301H_00-10: The monitor may look different from the feature images.
