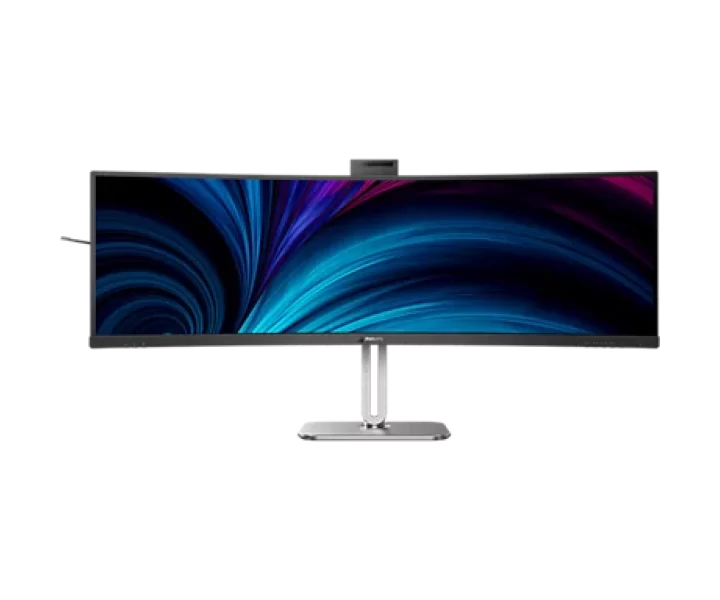

Philips Curved Business monitor 32:9 SuperWide Thunderbolt™ 4 monitor 49B2U6903CH/01 özellikleri ve fiyatları

Philips Curved Business monitor 32:9 SuperWide Thunderbolt™ 4 monitor 49B2U6903CH/01 teknik özellikleri

Model kodu

49B2U6903CH/01

Ekran boyutu

48.8 inç

Ekran teknolojisi

VA LCD

Ekran çözünürlüğü

5120 x 1440

Ekran yenileme hızı

100 Hz

maximum Refresh Rate Conditions

Maximum resolution: 5120x1440@60Hz (HDMI2.0)*, 5120x1440@100Hz(DP1.4)*, 5120x1440@75Hz (Thunderbolt)*, Scanning Frequency: HDMI: 30 - 140 kHz (H) / 48-75 Hz (V); DP/Thunderbolt: 30 - 200 kHz (H) / 48-120 Hz (V), The display colours reduce to 8 bits, the max resolution of HDMI can be 5120x1440@75Hz, and DisplayPort can be 5120x1440@120Hz, It’s for a laptop with DSC; if not, the maximum resolution of Thunderbolt 4 input and output can be 5120x1440@60Hz, 8-bit display colour, and with USB 3.2 Gen1.

resolution Conditions

Maximum resolution: 5120x1440@60Hz (HDMI2.0)*, 5120x1440@100Hz(DP1.4)*, 5120x1440@75Hz (Thunderbolt)*, Scanning Frequency: HDMI: 30 - 140 kHz (H) / 48-75 Hz (V); DP/Thunderbolt: 30 - 200 kHz (H) / 48-120 Hz (V), The display colours reduce to 8 bits, the max resolution of HDMI can be 5120x1440@75Hz, and DisplayPort can be 5120x1440@120Hz, It’s for a laptop with DSC; if not, the maximum resolution of Thunderbolt 4 input and output can be 5120x1440@60Hz, 8-bit display colour, and with USB 3.2 Gen1.

Ekran oranı

32:9

screen Finish

Anti-Glare, 3H, Haze 25%

Ekran renk sayısı

1.07 B

viewing Angle

178º (H)/178º (V), @ C/R > 10

contrast Ratio

3000:1

HDR

Display HDR 400 certified

tilt

-5/15 degree

swivel

-/+30 degree

height Adjustment

150 mm

power Supply Type

Built-in, 100–240 VAC, 50–60 Hz

Piksel yoğunluğu

109 PPI

response Time

4

response Time Method

Response time (typical): 4 ms (Grey to Grey)*; Response time value equal to SmartResponse

Renk gamı

Colour gamut (typical): NTSC: 97%*, sRGB: 119% *, sRGB: Yes, Delta E: < 2

ports

Signal Input: HDMI 2.1 TMDS x 2, DisplayPort 1.4 x 1, Thunderbolt 4 input x 1 (upstream, Data, Video, PD to 100W), Sync Input: Separate Sync, Sync on Green, Audio (In/Out): Audio out/Microphone in combo jack, RJ45: Ethernet LAN up to 2.5G*, Wake on LAN, Signal Output: Thunderbolt 4 out x 1 (downstream, Data, PD 15W), HDCP: HDCP 1.4 (HDMI / DisplayPort / Thunderbolt 4 ), HDCP 2.2 (HDMI / DisplayPort / Thunderbolt 4 ), HBR3: HBR 3 (Thunderbolt 4 ), USB Hub: USB 3.2 Gen 2 / 10 G, upstream: 1x Thunderbolt 4, 1x USB-C1 (data); downstream: 1x Thunderbolt 4, USB-A x4 (with x1 fast charge B.C 1.2), USB-C2x1 (data, 45W)

DisplayPort bağlantı sayısı

1 adet

DisplayPort sürümü

DisplayPort 1.4 x 1

Ses çıkışı

Audio out/Microphone in combo jack

USB bağlantısı

Max power delivery: Up to 90 W (5/V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.25A)

Hoparlör özellikleri

5 W x 2

Stereo hoparlör

Var

stand Adjustments

Height adjustment: 150 mm, Swivel: -/+30 degree, Tilt: -5/15 degree

ergonomic Features

Height adjustment: 150 mm, Swivel: -/+30 degree, Tilt: -5/15 degree

Boyutlar

Packaging in mm (W x H x D): 1290 x 300 x 475 mm, Product without stand (mm): 1193 x 373 x 164 mm, Product with stand (max height): 1193 x 586 x 268 mm

Ağırlık

15450 g

power Standby

0.5

adaptive Sync

Adaptive sync (VRR): Yes

Ekran özellikleri

Panel Size: 48.8inch/124cm, Aspect ratio: 32:9, LCD panel type: VA LCD, Backlight type: W-LED system, Pixel pitch: 0.2328x0.2328mm, Brightness: 450, Display colours: 1.07 B, Colour gamut (typical): NTSC: 97%*, sRGB: 119% *, Contrast ratio (typical): 3000:1, SmartContrast: 80,000,000:1, Response time (typical): 4 ms (Grey to Grey)*, Viewing angle: 178º (H)/178º (V), @ C/R > 10, Picture enhancement: SmartImage, Maximum resolution: 5120x1440@60Hz (HDMI2.0)*, 5120x1440@100Hz(DP1.4)*, 5120x1440@75Hz (Thunderbolt)*, Effective viewing area: 1191.936(H)x335.232(V)mm,1800R curvature*, Scanning Frequency: HDMI: 30 - 140 kHz (H) / 48-75 Hz (V); DP/Thunderbolt: 30 - 200 kHz (H) / 48-120 Hz (V), sRGB: Yes, Delta E: < 2, SoftBlue: Yes, Flicker-free: Yes, Pixel Density: 109 PPI, Display Screen Coating: Anti-Glare, 3H, Haze 25%, SmartUniformity: 93 ~ 105%, EasyRead: Yes, Adaptive sync (VRR): Yes, HDR: Display HDR 400 certified, EyeSafe: Yes

Kutu içeriği

Cables: HDMI cable, DisplayPort cable, TBT4 cable, Power cable, Monitor with stand: Yes, User Documentation: Yes

Renk seçenekleri

Finish: Texture, Foot: Silver, Front bezel: Charcoal, Rear cover: Charcoal

Üreticinin ayrıntılı teknik bilgileri

Picture/Display / Panel Size: 48.8inch/124cm; Picture/Display / Aspect ratio: 32:9; Picture/Display / LCD panel type: VA LCD; Picture/Display / Backlight type: W-LED system; Picture/Display / Pixel pitch: 0.2328x0.2328mm; Picture/Display / Brightness: 450; Picture/Display / Display colours: 1.07 B; Picture/Display / Colour gamut (typical): NTSC: 97%*, sRGB: 119% *; Picture/Display / Contrast ratio (typical): 3000:1; Picture/Display / SmartContrast: 80,000,000:1; Picture/Display / Response time (typical): 4 ms (Grey to Grey)*; Picture/Display / Viewing angle: 178º (H)/178º (V), @ C/R > 10; Picture/Display / Picture enhancement: SmartImage; Picture/Display / Maximum resolution: 5120x1440@60Hz (HDMI2.0)*, 5120x1440@100Hz(DP1.4)*, 5120x1440@75Hz (Thunderbolt)*; Picture/Display / Effective viewing area: 1191.936(H)x335.232(V)mm,1800R curvature*; Picture/Display / Scanning Frequency: HDMI: 30 - 140 kHz (H) / 48-75 Hz (V); DP/Thunderbolt: 30 - 200 kHz (H) / 48-120 Hz (V); Picture/Display / sRGB: Yes; Picture/Display / Delta E: < 2; Picture/Display / SoftBlue: Yes; Picture/Display / Flicker-free: Yes; Picture/Display / Pixel Density: 109 PPI; Picture/Display / Display Screen Coating: Anti-Glare, 3H, Haze 25%; Picture/Display / SmartUniformity: 93 ~ 105%; Picture/Display / EasyRead: Yes; Picture/Display / Adaptive sync (VRR): Yes; Picture/Display / HDR: Display HDR 400 certified; Picture/Display / EyeSafe: Yes, Connectivity / Signal Input: HDMI 2.1 TMDS x 2, DisplayPort 1.4 x 1, Thunderbolt 4 input x 1 (upstream, Data, Video, PD to 100W); Connectivity / Sync Input: Separate Sync, Sync on Green; Connectivity / Audio (In/Out): Audio out/Microphone in combo jack; Connectivity / RJ45: Ethernet LAN up to 2.5G*, Wake on LAN; Connectivity / Signal Output: Thunderbolt 4 out x 1 (downstream, Data, PD 15W); Connectivity / HDCP: HDCP 1.4 (HDMI / DisplayPort / Thunderbolt 4 ), HDCP 2.2 (HDMI / DisplayPort / Thunderbolt 4 ); Connectivity / HBR3: HBR 3 (Thunderbolt 4 ); Connectivity / USB Hub: USB 3.2 Gen 2 / 10 G, upstream: 1x Thunderbolt 4, 1x USB-C1 (data); downstream: 1x Thunderbolt 4, USB-A x4 (with x1 fast charge B.C 1.2), USB-C2x1 (data, 45W); Power Delivery / Max power delivery: Up to 90 W (5/V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.25A); Power Delivery / Version: USB PD version 3.0; Convenience / Built-in Speakers: 5 W x 2; Convenience / Plug & Play Compatibility: DDC/CI, Mac OS, sRGB, Windows 11/10; Convenience / User convenience: SmartImage, Input, User, Menu, Power On/Off, Mute, Handup; Convenience / OSD Languages: Brazil Portuguese, Czech, Dutch, English, French, Finnish, German, Greek, Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian; Convenience / Other convenience: Kensington lock, Earphone hook, VESA mount (100 x 100 mm); Convenience / Control software: SmartControl, Convenience / MultiView: PIP/PBP mode, 2 x devices; Convenience / Built-in webcam: Pop-up 5.0 megapixel camera with microphone and LED indicator; Convenience / Webcam with auto-framing: Yes; Convenience / Webcam tilt function: Yes, -/+30 degrees; Convenience / FocusSync light: Yes; Convenience / KVM: Yes (TBT4/USB-B); Convenience / Noise cancellation: Yes; Convenience / SmartKVM: Yes (Thunderbolt 4/USB-C1); Stand / Height adjustment: 150 mm; Stand / Swivel: -/+30 degree; Stand / Tilt: -5/15 degree; Power / ECO mode: 37.5 W (typ.); Power / Power supply: Built-in, 100–240 VAC, 50–60 Hz; Power / Off mode: Zero watts with AC switch; Power / On mode: 41.85 W (typ.) (EnergyStar test method); Power / Standby mode: 0.5 W (typ.); Power / Power LED indicator: Operation - White, Standby mode - White (flashing); Power / Energy Label Class: F; Dimensions / Packaging in mm (W x H x D): 1290 x 300 x 475 mm; Dimensions / Product without stand (mm): 1193 x 373 x 164 mm; Dimensions / Product with stand (max height): 1193 x 586 x 268 mm; Weight / Product with packaging (kg): 19.54 kg; Weight / Product with stand (kg): 15.45 kg; Weight / Product without stand (kg): 11.82 kg; Operating conditions / Altitude: Operating: +12,000ft (3,658m), Non-operating: +40,000ft (12,192m); Operating conditions / Temperature range (operation): 0°C to 40 °C; Operating conditions / Relative humidity: 20%-80 %; Operating conditions / Temperature range (storage): -20°C to 60 °C, Operating conditions / MTBF (demonstrated): 70,000 hrs (excluding backlight); Sustainability / Environmental and energy: Energy Star, EPEAT*, RoHS, LightSensor, PowerSensor 2*; Sustainability / Post-consumer recycled plastic: 85%+OBP 5%; Sustainability / Recyclable packaging material: 100; Sustainability / Specific Substances: Mercury free, PVC/BFR free housing; Compliance and standards / Regulatory Approvals: CB, CE Mark, TUV/GS, TCO Certified, EAC, EAEU RoHS, EMF, UKCA, MEPS, FCC, ICES-003, eyesafe® CERTIFIED 2.0, TÜV Rheinland Low Blue Light (Hardware Solution); Compliance and standards / Warranty: 5 years; Cabinet / Finish: Texture; Cabinet / Foot: Silver; Cabinet / Front bezel: Charcoal; Cabinet / Rear cover: Charcoal; What's in the box? / Cables: HDMI cable, DisplayPort cable, TBT4 cable, Power cable; What's in the box? / Monitor with stand: Yes; What's in the box? / User Documentation: Yes; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-0: Radius of the arc of the display curvature (mm); Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-1: Response time value equal to SmartResponse; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-2: NTSC area based on CIE 1976; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-3: sRGB area based on CIE 1931, Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-4: For Video transmission via USB-C, your notebook/device must support USB-C DP Alt Mode; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-5: Activities such as screen sharing, online streaming video and audio over the Internet can impact your network performance. Your hardware, network bandwidth and its performance will determine overall audio and video quality.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-6: For USB-C power and charging function, your notebook/device must support USB-C standard Power Delivery specifications. Please check your notebook user manual or manufacturer for more details.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-7: If your Ethernet connection seems slow, please open the OSD menu and select USB 3.0 or a later version, which can support LAN speeds up to 1G.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-8: The EPEAT rating is valid only where Philips registers the product. Please visit https://www.epeat.net/ for the registration status in your country., Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-9: The 5-year warranty is a voluntary manufacturer’s limited warranty. It applies only to the countries listed in this document: https://www.documents.philips.com/assets/20260122/d1c3559515ae482aa6cdb3da00b932a7.pdf. For consumers, it is provided in addition to, and without affecting, their legal rights under applicable national laws. For non-consumer (business/professional) end users, only the manufacturer’s limited warranty terms apply.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-10: The monitor may look different from the images shown for features.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-11: The display colours reduce to 8 bits, the max resolution of HDMI can be 5120x1440@75Hz, and DisplayPort can be 5120x1440@120Hz; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-12: It’s for a laptop with DSC; if not, the maximum resolution of Thunderbolt 4 input and output can be 5120x1440@60Hz, 8-bit display colour, and with USB 3.2 Gen1.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-13: Please note that the PowerSensor 2 only works with Windows 11 installed. When PowerSensor 2 is activated, WAL means Walk Away Lock and WOA means Wake On.; Manufacturer model-specific notes / Note HCDIS-TPV_PRD-49B2U6903CH_01-14: The products and accessories listed in this leaflet may vary by country and region.
