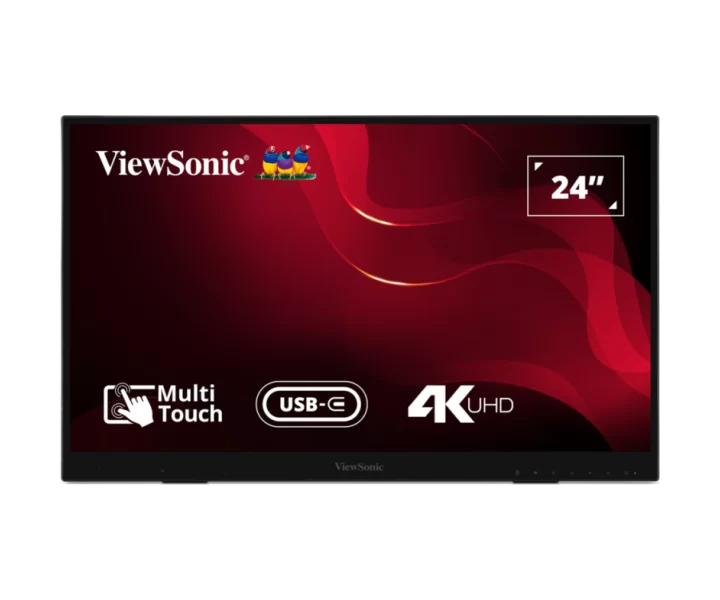

ID2456-4K özellikleri ve fiyatları

ID2456-4K teknik özellikleri

Model kodu

ID2456-4K

Ekran boyutu

23.7 inç

Ekran çözünürlüğü

3840 x 2160

Ekran teknolojisi

IPS Technology

Ekran yenileme hızı

60 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 60; Frequency Horizontal: 15 ~ 135KHz; Frequency Vertical: 24 ~ 60Hz; Digital Sync: TMDS - HDMI (v2.1), Micro-Packet - DisplayPort (v1.4), Micro-Packet - Type C

resolution Conditions

Resolution: 3840 x 2160; Refresh Rate (Hz): 60; Frequency Horizontal: 15 ~ 135KHz; Frequency Vertical: 24 ~ 60Hz; Digital Sync: TMDS - HDMI (v2.1), Micro-Packet - DisplayPort (v1.4), Micro-Packet - Type C

Çözünürlük standardı

UHD (Ultra HD)

contrast Ratio

1,300:1 (typ)

Ekran oranı

16:9

Ekran renk sayısı

1.07B

viewing Angle

178º horizontal, 178º vertical

screen Curvature

Flat

screen Finish

Anti-Glare, Hard Coating (7H)

Ekran koruması

7H

Renk gamı

NTSC: 84% size (Typ) sRGB: 119% size / 99% coverage (Typ)

vesa Mount

75 x 75 mm

tilt

15º / 70º

power Supply Type

Internal Power Supply

Tepe parlaklık

250 nit

Tipik parlaklık

250 nit

response Time

5

response Time Method

Typical GtG

power Consumption

31

power Standby

0.5

Ağırlık

4400 g

Boyutlar

Packaging (mm): 670 x 410 x 160; Physical (mm): 544.6 x 333.1 x 43.3; Physical Without Stand (mm): 544.6 x 333.1 x 43.3

ports

USB 3.2 Type A Down Stream: 4, USB 3.2 Type B Up Stream: 1, USB 3.2 Type C Up Stream; DisplayPort Alt mode: 1 (96W power charger), 3.5mm Audio Out: 1, HDMI 2.1: 1, HDMI 2.1 Out: 1, DisplayPort: 1, Power in: 3-pin Socket (IEC C14 / CEE22)

HDMI bağlantı sayısı

2 adet

HDMI sürümü

HDMI 2.1: 1; HDMI 2.1 Out: 1

DisplayPort bağlantı sayısı

1 adet

DisplayPort sürümü

Digital Sync: TMDS - HDMI (v2.1), Micro-Packet - DisplayPort (v1.4), Micro-Packet - Type C

usb Power Delivery Watts

96

Ses çıkışı

3.5mm Audio Out: 1

Hoparlör özellikleri

Internal Speakers: 2.5Watts x2

Stereo hoparlör

Var

stand Adjustments

Tilt (Forward/Back): 15º / 70º

ergonomic Features

Tilt (Forward/Back): 15º / 70º

Ekran özellikleri

Light Source: LED, Color Space Support: 10 bit (8 bit + FRC), Response Time (Typical GTG): 5ms, Response Time (GTG w/OD): 5ms, Backlight Life (Hours): 30000 Hrs (Min), Low Blue Light: Software solution, Flicker-Free: Yes, Pixel Size: 0.137 mm (H) x 0.137 mm (V), Touch Screen: Projected Capacitive, 10-point multi-touch

Kutu içeriği

ID2456-4K x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, MPP2.0 Active Pen x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 24; Display / Viewable Area (in.): 23.7; Display / Panel Type: IPS Technology; Display / Resolution: 3840 x 2160; Display / Resolution Type: UHD (Ultra HD); Display / Static Contrast Ratio: 1,300:1 (typ); Display / Dynamic Contrast Ratio: 50M:1; Display / Light Source: LED; Display / Brightness: 250 cd/m² (typ); Display / Colors: 1.07B; Display / Color Space Support: 10 bit (8 bit + FRC); Display / Aspect Ratio: 16:9; Display / Response Time (Typical GTG): 5ms; Display / Response Time (GTG w/OD): 5ms; Display / Viewing Angles: 178º horizontal, 178º vertical; Display / Backlight Life (Hours): 30000 Hrs (Min); Display / Glass Hardness: 7H; Display / Curvature: Flat; Display / Refresh Rate (Hz): 60; Display / Low Blue Light: Software solution; Display / Flicker-Free: Yes; Display / Color Gamut: NTSC: 84% size (Typ) sRGB: 119% size / 99% coverage (Typ); Display / Pixel Size: 0.137 mm (H) x 0.137 mm (V); Display / Touch Screen: Projected Capacitive, 10-point multi-touch; Display / Surface Treatment: Anti-Glare, Hard Coating (7H); Display / Cover Glass Thickness: 1.1±0.2; Compatibility / PC Resolution (max): 3840x2160; Compatibility / Mac® Resolution (max): 3840x2160; Compatibility / PC Operating System: Windows 10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 3840x2160; Connector / USB 3.2 Type A Down Stream: 4; Connector / USB 3.2 Type B Up Stream: 1, Connector / USB 3.2 Type C Up Stream; DisplayPort Alt mode: 1 (96W power charger); Connector / 3.5mm Audio Out: 1; Connector / HDMI 2.1: 1; Connector / HDMI 2.1 Out: 1; Connector / DisplayPort: 1; Connector / Power in: 3-pin Socket (IEC C14 / CEE22); Audio / Internal Speakers: 2.5Watts x2; Power / Eco Mode (Conserve): 25.72W; Power / Eco Mode (optimized): 29.22W; Power / Consumption (typical): 31W; Power / Consumption (max): 32W; Power / Voltage: AC 100-240V; Power / Stand-by: 0.5W; Power / Power Supply: Internal Power Supply; Additional Hardware / Kensington Lock Slot: 1; Controls / Physical Controls: Key 0 (touch enable/disable), Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power); Controls / On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Wall Mount / VESA Compatible: 75 x 75 mm; Input Signal / Frequency Horizontal: 15 ~ 135KHz; Input Signal / Frequency Vertical: 24 ~ 60Hz; Video Input / Digital Sync: TMDS - HDMI (v2.1), Micro-Packet - DisplayPort (v1.4), Micro-Packet - Type C; Ergonomics / Tilt (Forward/Back): 15º / 70º; Weight (imperial) / Net (lbs): 9.7; Weight (imperial) / Net Without Stand (lbs): 9.7; Weight (imperial) / Gross (lbs): 16.5; Weight (metric) / Net (kg): 4.4; Weight (metric) / Net Without Stand (kg): 4.4; Weight (metric) / Gross (kg): 7.5, Dimensions (imperial) (wxhxd) / Packaging (in.): 26.4 x 16.1 x 6.3; Dimensions (imperial) (wxhxd) / Physical (in.): 21.44 x 13.11 x 1.7; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 21.44 x 13.11 x 1.7; Dimensions (metric) (wxhxd) / Packaging (mm): 670 x 410 x 160; Dimensions (metric) (wxhxd) / Physical (mm): 544.6 x 333.1 x 43.3; Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 544.6 x 333.1 x 43.3; General / Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC; General / PACKAGE CONTENTS: ID2456-4K x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, MPP2.0 Active Pen x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market; General / Power Management: Energy Star standards, EPEAT

technical Details Continued

Overview heading: 24” 4K UHD Touch Monitor with MPP2.0 Active Pen for Digital Podium​, Manufacturer feature: 4K UHD (3840 x 2160) resolution for sharp, detailed visuals​, Manufacturer feature: 10-point PCAP touch with fast, accurate response and intuitive multi-touch gestures​, Manufacturer feature: USB-C with up to 98W power delivery for plug-and-play connectivity and reduced cable clutter​, Manufacturer feature: Ergonomic stand with wide tilt range for comfortable use in any setup​, Manufacturer feature: Full compatibility with Microsoft Pen Protocol 2.0 for precise active pen input
