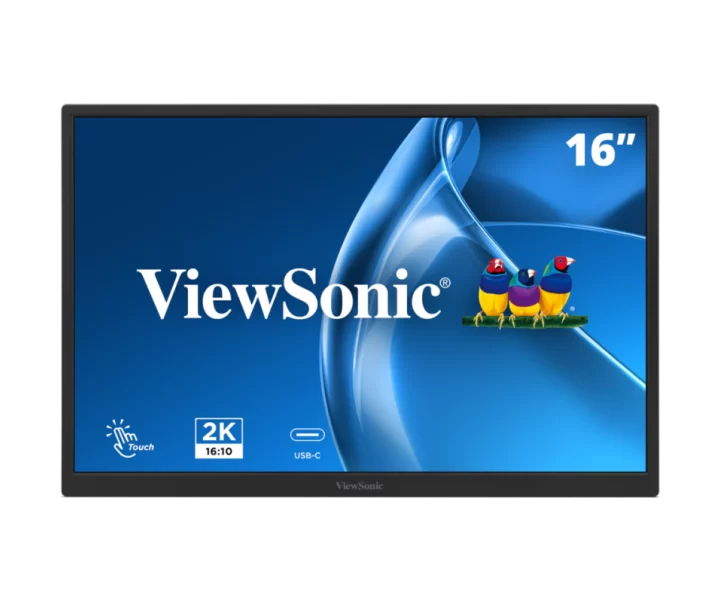

TD1617A-2K özellikleri ve fiyatları

TD1617A-2K teknik özellikleri

Model kodu

TD1617A-2K

Ekran boyutu

16 inç

Ekran çözünürlüğü

2560 x 1600

Ekran teknolojisi

IPS Technology

Ekran yenileme hızı

165 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 165; Frequency Horizontal: HDMI (v1.4): 15 ~ 200KHz, Type C: 30 ~ 510KHz; Frequency Vertical: HDMI (v1.4): 48 ~ 120Hz, Type C: 48 ~ 165Hz; Digital Sync: TMDS - HDMI (v1.4), Micro-Packet - Type C

resolution Conditions

Resolution: 2560 x 1600; Refresh Rate (Hz): 165; Frequency Horizontal: HDMI (v1.4): 15 ~ 200KHz, Type C: 30 ~ 510KHz; Frequency Vertical: HDMI (v1.4): 48 ~ 120Hz, Type C: 48 ~ 165Hz; Digital Sync: TMDS - HDMI (v1.4), Micro-Packet - Type C

Çözünürlük standardı

WQXGA (Wide QXGA)

contrast Ratio

1,200:1 (typ)

Ekran oranı

16:10

Ekran renk sayısı

1064.3M

viewing Angle

178º horizontal, 178º vertical

screen Curvature

Flat

screen Finish

Glossy, Hard Coating (≧6H)

Ekran koruması

≧6H

Renk gamı

NTSC: 76% size (Typ) sRGB: 107% size / 100% coverage (Typ)

tilt

20º / 60º

power Supply Type

External (Optional)

Tepe parlaklık

300 nit

Tipik parlaklık

300 nit

response Time

3

response Time Method

Typical GtG

power Consumption

9.3

power Standby

0.5

Ağırlık

800 g

Boyutlar

Packaging (mm): 448 x 307 x 74; Physical (mm): 360.26 x 239.09 x 16; Physical Without Stand (mm): 360.26 x 239.09 x 16

ports

USB 3.2 Type C DisplayPort Alt mode only: 2 (60W power charger), 3.5mm Audio Out: 1, HDMI 1.4: 1, Power in: USB Type C (with video & data)

HDMI bağlantı sayısı

1 adet

HDMI sürümü

HDMI 1.4: 1

usb Power Delivery Watts

60

Ses çıkışı

3.5mm Audio Out: 1

Hoparlör özellikleri

Internal Speakers: 0.8Watts x2

Stereo hoparlör

Var

stand Adjustments

Tilt (Forward/Back): 20º / 60º

ergonomic Features

Tilt (Forward/Back): 20º / 60º

Ekran özellikleri

Light Source: LED, Color Space Support: 10 bit (8 bit + FRC), Response Time (Typical GTG): 3ms, Response Time (GTG w/OD): 2.994ms, Backlight Life (Hours): 15000 Hrs (Min), Low Blue Light: Software solution, Pixel Size: 0.135 mm (H) x 0.135 mm (V), Touch Screen: Projected Capacitive, 10-point multi-touch

Kutu içeriği

TD1617A-2K x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1, Clean cloth x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 16; Display / Viewable Area (in.): 16; Display / Panel Type: IPS Technology; Display / Resolution: 2560 x 1600; Display / Resolution Type: WQXGA (Wide QXGA); Display / Static Contrast Ratio: 1,200:1 (typ); Display / Dynamic Contrast Ratio: 50M:1; Display / Light Source: LED; Display / Brightness: 300 cd/m² (typ); Display / Colors: 1064.3M; Display / Color Space Support: 10 bit (8 bit + FRC); Display / Aspect Ratio: 16:10; Display / Response Time (Typical GTG): 3ms; Display / Response Time (GTG w/OD): 2.994ms; Display / Viewing Angles: 178º horizontal, 178º vertical; Display / Backlight Life (Hours): 15000 Hrs (Min); Display / Glass thickness: 0.663mm; Display / Glass Hardness: ≧6H; Display / Curvature: Flat; Display / Refresh Rate (Hz): 165; Display / Low Blue Light: Software solution; Display / Color Gamut: NTSC: 76% size (Typ) sRGB: 107% size / 100% coverage (Typ); Display / Pixel Size: 0.135 mm (H) x 0.135 mm (V); Display / Touch Screen: Projected Capacitive, 10-point multi-touch; Display / Surface Treatment: Glossy, Hard Coating (≧6H); Display / Cover Glass Thickness: 0.663mm; Compatibility / PC Resolution (max): 2560x1600; Compatibility / Mac® Resolution (max): 2560x1600; Compatibility / PC Operating System: Windows 10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 2560x1600; Connector / USB 3.2 Type C DisplayPort Alt mode only: 2 (60W power charger); Connector / 3.5mm Audio Out: 1; Connector / HDMI 1.4: 1, Connector / Power in: USB Type C (with video & data); Audio / Internal Speakers: 0.8Watts x2; Power / Eco Mode (Conserve): 7.5W; Power / Eco Mode (optimized): 8.5W; Power / Consumption (typical): 9.3W; Power / Consumption (max): 10.3W; Power / Voltage: DC 5V/9V/12V/15V/20V; Power / Stand-by: 0.5W; Power / Power Supply: External (Optional); Controls / Physical Controls: Up, Right, Down, Left, Power; Controls / On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Input Signal / Frequency Horizontal: HDMI (v1.4): 15 ~ 200KHz, Type C: 30 ~ 510KHz; Input Signal / Frequency Vertical: HDMI (v1.4): 48 ~ 120Hz, Type C: 48 ~ 165Hz; Video Input / Digital Sync: TMDS - HDMI (v1.4), Micro-Packet - Type C; Ergonomics / Tilt (Forward/Back): 20º / 60º; Weight (imperial) / Net (lbs): 1.8; Weight (imperial) / Net Without Stand (lbs): 1.8; Weight (imperial) / Gross (lbs): 3.5; Weight (metric) / Net (kg): 0.8; Weight (metric) / Net Without Stand (kg): 0.8; Weight (metric) / Gross (kg): 1.6; Dimensions (imperial) (wxhxd) / Packaging (in.): 17.6 x 12.1 x 2.9; Dimensions (imperial) (wxhxd) / Physical (in.): 14.18 x 9.41 x 0.63; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 14.18 x 9.41 x 0.63; Dimensions (metric) (wxhxd) / Packaging (mm): 448 x 307 x 74, Dimensions (metric) (wxhxd) / Physical (mm): 360.26 x 239.09 x 16; Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 360.26 x 239.09 x 16; General / PACKAGE CONTENTS: TD1617A-2K x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1, Clean cloth x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market
