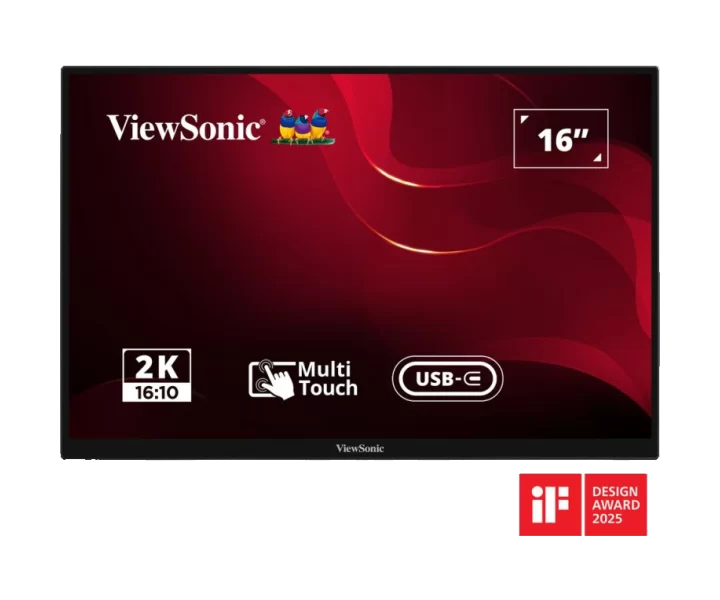

TD1656-2K özellikleri ve fiyatları

TD1656-2K teknik özellikleri

Model kodu

TD1656-2K

Ekran boyutu

16 inç

Ekran çözünürlüğü

2560 x 1600

Ekran teknolojisi

IPS Technology

Ekran yenileme hızı

60 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 60; Frequency Horizontal: 15 ~ 100KHz; Frequency Vertical: 50 ~ 75Hz; Digital Sync: Micro-Packet - Type C

resolution Conditions

Resolution: 2560 x 1600; Refresh Rate (Hz): 60; Frequency Horizontal: 15 ~ 100KHz; Frequency Vertical: 50 ~ 75Hz; Digital Sync: Micro-Packet - Type C

Çözünürlük standardı

WQXGA (Wide QXGA)

contrast Ratio

1,200:1 (typ)

Ekran oranı

16:10

Ekran renk sayısı

16.7M

viewing Angle

178º horizontal, 178º vertical

screen Curvature

Flat

screen Finish

Anti-Glare w/ anti-finger print, Hard Coating (≧6H)

Ekran koruması

≧6H

Renk gamı

NTSC: 72% size (Typ) sRGB: 103% size / 99% coverage (Typ)

tilt

20º / 70 (by smart cover)º

pivot

90º / 0º

height Adjustment

50 (by smart cover)

power Supply Type

External (Optional)

Tepe parlaklık

330 nit

Tipik parlaklık

330 nit

response Time

11.6

response Time Method

Typical GtG

power Consumption

7.8

power Standby

0.5

Ağırlık

800 g

Boyutlar

Packaging (mm): 438 x 300 x 61; Physical (mm): 356.68 x 234.92 x 9.9; Physical Without Stand (mm): 356.68 x 234.92 x 9.9

ports

USB 3.2 Type C DisplayPort Alt mode only: 2 (65W power charger), Power in: USB Type C (with video & data)

usb Power Delivery Watts

65

Hoparlör özellikleri

Internal Speakers: 2Watts x2

Stereo hoparlör

Var

stand Adjustments

Height Adjust (mm): 50 (by smart cover); Tilt (Forward/Back): 20º / 70 (by smart cover)º; Pivot (Right/Left): 90º / 0º

ergonomic Features

Height Adjust (mm): 50 (by smart cover); Tilt (Forward/Back): 20º / 70 (by smart cover)º; Pivot (Right/Left): 90º / 0º

Ekran özellikleri

Light Source: LED, Color Space Support: 8 bit true, Response Time (Typical GTG): 11.6ms, Response Time (GTG w/OD): 11.61ms, Response Time (Typical Tr+Tf): 20ms, Backlight Life (Hours): 15000 Hrs (Min), Low Blue Light: Software solution, Pixel Size: 0.135 mm (H) x 0.135 mm (V), Touch Screen: Projected Capacitive, 10-point multi-touch

Kutu içeriği

TD1656-2K x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Smart cover x1, Passive touch pen x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 16; Display / Viewable Area (in.): 16; Display / Panel Type: IPS Technology; Display / Resolution: 2560 x 1600; Display / Resolution Type: WQXGA (Wide QXGA); Display / Static Contrast Ratio: 1,200:1 (typ); Display / Dynamic Contrast Ratio: 50M:1; Display / Light Source: LED; Display / Brightness: 330 cd/m² (typ); Display / Colors: 16.7M; Display / Color Space Support: 8 bit true; Display / Aspect Ratio: 16:10; Display / Response Time (Typical GTG): 11.6ms; Display / Response Time (GTG w/OD): 11.61ms; Display / Response Time (Typical Tr+Tf): 20ms; Display / Viewing Angles: 178º horizontal, 178º vertical; Display / Backlight Life (Hours): 15000 Hrs (Min); Display / Glass thickness: 0.55mm; Display / Glass Hardness: ≧6H; Display / Curvature: Flat; Display / Refresh Rate (Hz): 60; Display / Low Blue Light: Software solution; Display / Color Gamut: NTSC: 72% size (Typ) sRGB: 103% size / 99% coverage (Typ); Display / Pixel Size: 0.135 mm (H) x 0.135 mm (V); Display / Touch Screen: Projected Capacitive, 10-point multi-touch; Display / Surface Treatment: Anti-Glare w/ anti-finger print, Hard Coating (≧6H); Display / Cover Glass Thickness: 0.55mm; Compatibility / PC Resolution (max): 2560x1600; Compatibility / Mac® Resolution (max): 2560x1600; Compatibility / PC Operating System: Windows 10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 2560x1600; Connector / USB 3.2 Type C DisplayPort Alt mode only: 2 (65W power charger), Connector / Power in: USB Type C (with video & data); Audio / Internal Speakers: 2Watts x2; Power / Consumption (typical): 7.8W; Power / Consumption (max): 8.8W; Power / Voltage: DC 5V/9V/12V/15V/20V; Power / Stand-by: 0.5W; Power / Power Supply: External (Optional); Controls / Physical Controls: Up; Down, Power; Controls / On Screen Display: Contrast, Brightness, Volume, Audio Mode, Information, Memory Recall; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Input Signal / Frequency Horizontal: 15 ~ 100KHz; Input Signal / Frequency Vertical: 50 ~ 75Hz; Video Input / Digital Sync: Micro-Packet - Type C; Ergonomics / Height Adjust (mm): 50 (by smart cover); Ergonomics / Tilt (Forward/Back): 20º / 70 (by smart cover)º; Ergonomics / Pivot (Right/Left): 90º / 0º; Weight (imperial) / Net (lbs): 1.8; Weight (imperial) / Net Without Stand (lbs): 1.8; Weight (imperial) / Gross (lbs): 4; Weight (metric) / Net (kg): 0.8; Weight (metric) / Net Without Stand (kg): 0.8; Weight (metric) / Gross (kg): 1.8; Dimensions (imperial) (wxhxd) / Packaging (in.): 17.2 x 11.8 x 2.4; Dimensions (imperial) (wxhxd) / Physical (in.): 14.04 x 9.25 x 0.39; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 14.04 x 9.25 x 0.39; Dimensions (metric) (wxhxd) / Packaging (mm): 438 x 300 x 61; Dimensions (metric) (wxhxd) / Physical (mm): 356.68 x 234.92 x 9.9, Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 356.68 x 234.92 x 9.9; General / Regulations: cTUVus, FCC-B, ICES002, Energy Star, EPEAT, NOM, Mexico Energy; General / PACKAGE CONTENTS: TD1656-2K x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Smart cover x1, Passive touch pen x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market; General / Power Management: Energy Star standards, EPEAT

technical Details Continued

Overview heading: 16” WQXGA/QHD+ Multi-Touch Portable Monitor with USB-C, Manufacturer feature: 16:10 WQXGA (2560x1600) with 99% SRGB coverage, Manufacturer feature: 2K QHD+ resolution enhances screen mapping for extended displays, Manufacturer feature: 10-point multitouch* technology provides intuitive screen control, Manufacturer feature: Ergonomic smart cover doubles as an adjustable stand and protects the monitor while on-the-go, Manufacturer feature: USB-C ports located on both the right and left sides for versatile connectivity options, Manufacturer feature: Auto-screen rotation for portrait and landscape layouts
