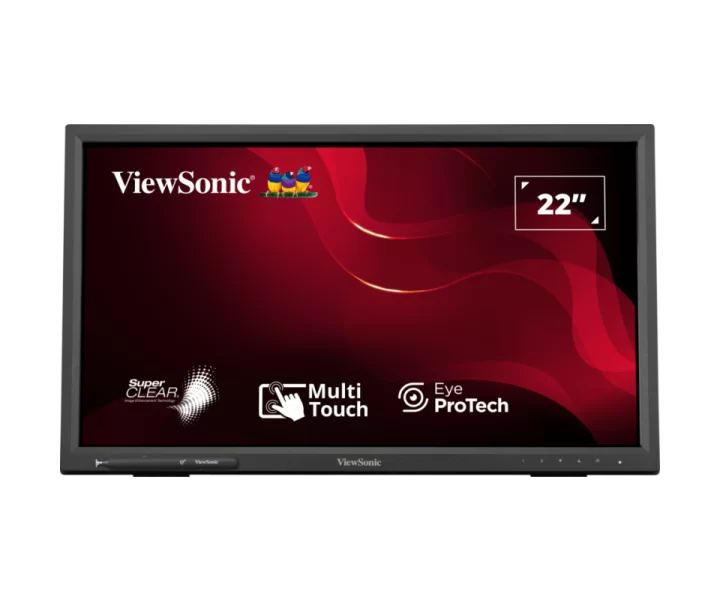

TD2223-2 özellikleri ve fiyatları

TD2223-2 teknik özellikleri

Model kodu

TD2223-2

Ekran boyutu

21.5 inç

Ekran çözünürlüğü

1920 x 1080

Ekran teknolojisi

VA Technology

Ekran yenileme hızı

75 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 75; Frequency Horizontal: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz; Frequency Vertical: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz; Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4); Analog Sync: Separate/Composite/SOG - RGB Analog

resolution Conditions

Resolution: 1920 x 1080; Refresh Rate (Hz): 75; Frequency Horizontal: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz; Frequency Vertical: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz; Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4); Analog Sync: Separate/Composite/SOG - RGB Analog

Çözünürlük standardı

FHD (Full HD)

contrast Ratio

3,000:1 (typ)

Ekran oranı

16:9

Ekran renk sayısı

16.7M

viewing Angle

178º horizontal, 178º vertical

screen Curvature

Flat

screen Finish

Glossy, Hard Coating (7H)

Ekran koruması

7H

Renk gamı

NTSC: 72% size (Typ) sRGB: 104% size (Typ)

vesa Mount

100 x 100 mm

tilt

20º / 40º

power Supply Type

Internal Power Supply

Tepe parlaklık

250 nit

Tipik parlaklık

250 nit

response Time

6.5

response Time Method

Typical GtG

power Consumption

18.5

power Standby

0.5

Ağırlık

4200 g

Boyutlar

Packaging (mm): 580 x 405 x 162; Physical (mm): 519 x 329 x 101; Physical Without Stand (mm): 519 x 308 x 61

ports

VGA: 1, USB 2.0 Type A: 2, USB 2.0 Type B: 1, 3.5mm Audio In: 1, 3.5mm Audio Out: 1, HDMI 1.4: 1, DVI-D: 1, Power in: 3-pin Socket (IEC C14 / CEE22)

HDMI bağlantı sayısı

1 adet

HDMI sürümü

HDMI 1.4: 1

Ses çıkışı

3.5mm Audio Out: 1

Hoparlör özellikleri

Internal Speakers: 2Watts x2

Stereo hoparlör

Var

stand Adjustments

Tilt (Forward/Back): 20º / 40º

ergonomic Features

Tilt (Forward/Back): 20º / 40º

Ekran özellikleri

Light Source: LED, Color Space Support: 8 bit true, Response Time (Typical GTG): 6.5ms, Response Time (GTG w/OD): 6.5ms, Backlight Life (Hours): 30000 Hrs (Min), Low Blue Light: Software solution, Flicker-Free: Yes, Pixel Size: 0.249 mm (H) x 0.241 mm (V), Touch Screen: IR, 10-point multi-touch

Kutu içeriği

TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 22; Display / Viewable Area (in.): 21.5; Display / Panel Type: VA Technology; Display / Resolution: 1920 x 1080; Display / Resolution Type: FHD (Full HD); Display / Static Contrast Ratio: 3,000:1 (typ); Display / Dynamic Contrast Ratio: 20M:1; Display / Light Source: LED; Display / Brightness: 250 cd/m² (typ); Display / Colors: 16.7M; Display / Color Space Support: 8 bit true; Display / Aspect Ratio: 16:9; Display / Response Time (Typical GTG): 6.5ms; Display / Response Time (GTG w/OD): 6.5ms; Display / Viewing Angles: 178º horizontal, 178º vertical; Display / Backlight Life (Hours): 30000 Hrs (Min); Display / Glass thickness: 2mm; Display / Glass Hardness: 7H; Display / Curvature: Flat; Display / Refresh Rate (Hz): 75; Display / Low Blue Light: Software solution; Display / Flicker-Free: Yes; Display / Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ); Display / Pixel Size: 0.249 mm (H) x 0.241 mm (V); Display / Touch Screen: IR, 10-point multi-touch; Display / Surface Treatment: Glossy, Hard Coating (7H); Display / Cover Glass Thickness: 2mm; Compatibility / PC Resolution (max): 1920x1080; Compatibility / Mac® Resolution (max): 1920x1080; Compatibility / PC Operating System: Windows 10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 1920x1080; Connector / VGA: 1; Connector / USB 2.0 Type A: 2; Connector / USB 2.0 Type B: 1; Connector / 3.5mm Audio In: 1; Connector / 3.5mm Audio Out: 1; Connector / HDMI 1.4: 1, Connector / DVI-D: 1; Connector / Power in: 3-pin Socket (IEC C14 / CEE22); Audio / Internal Speakers: 2Watts x2; Power / Eco Mode (Conserve): 13W; Power / Eco Mode (optimized): 16W; Power / Consumption (typical): 18.5W; Power / Consumption (max): 21.8W; Power / Voltage: AC 100-240V; Power / Stand-by: 0.5W; Power / Power Supply: Internal Power Supply; Additional Hardware / Kensington Lock Slot: 1; Additional Hardware / Cable Organization: Yes; Controls / Physical Controls: 1, 2, Up, Down, Power; Controls / On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Wall Mount / VESA Compatible: 100 x 100 mm; Input Signal / Frequency Horizontal: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz; Input Signal / Frequency Vertical: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz; Video Input / Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4); Video Input / Analog Sync: Separate/Composite/SOG - RGB Analog; Ergonomics / Tilt (Forward/Back): 20º / 40º; Weight (imperial) / Net (lbs): 9.3; Weight (imperial) / Net Without Stand (lbs): 8; Weight (imperial) / Gross (lbs): 12.6; Weight (metric) / Net (kg): 4.2; Weight (metric) / Net Without Stand (kg): 3.7; Weight (metric) / Gross (kg): 5.7, Dimensions (imperial) (wxhxd) / Packaging (in.): 22.8 x 15.9 x 6.4; Dimensions (imperial) (wxhxd) / Physical (in.): 20.4 x 12.9 x 4; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 20.4 x 12.1 x 2.4; Dimensions (metric) (wxhxd) / Packaging (mm): 580 x 405 x 162; Dimensions (metric) (wxhxd) / Physical (mm): 519 x 329 x 101; Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 519 x 308 x 61; General / Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP; General / PACKAGE CONTENTS: TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market; General / Power Management: Energy Star standards, EPEAT
