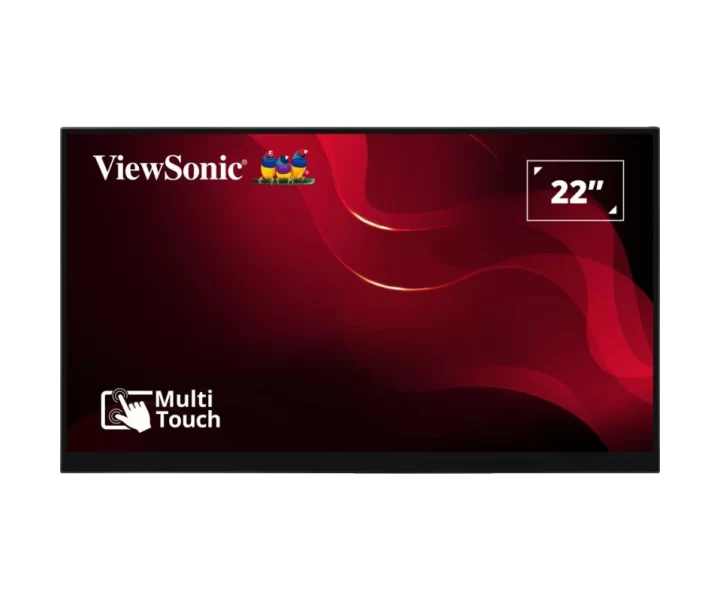

TD2265 özellikleri ve fiyatları

TD2265 teknik özellikleri

Model kodu

TD2265

Ekran boyutu

21.5 inç

Ekran çözünürlüğü

1920 x 1080

Ekran teknolojisi

IPS Technology

Ekran yenileme hızı

60 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 60; Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz; Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz, DisplayPort (v1.2): 50 ~ 75Hz; Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2); Analog Sync: Separate/Composite/SOG - RGB Analog

resolution Conditions

Resolution: 1920 x 1080; Refresh Rate (Hz): 60; Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz; Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz, DisplayPort (v1.2): 50 ~ 75Hz; Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2); Analog Sync: Separate/Composite/SOG - RGB Analog

Çözünürlük standardı

FHD (Full HD)

contrast Ratio

1,000:1 (typ)

Ekran oranı

16:9

Ekran renk sayısı

16.7M

viewing Angle

178º horizontal, 178º vertical

screen Curvature

Flat

screen Finish

Glossy, Hard Coating (7H)

Renk gamı

NTSC: 72% size (Typ) sRGB: 102% size (Typ)

vesa Mount

100 x 100 mm

tilt

-5º / 20º

power Supply Type

Internal Power Supply

Tepe parlaklık

250 nit

Tipik parlaklık

250 nit

response Time

6

response Time Method

Typical GtG

power Consumption

17

power Standby

0.5

Ağırlık

4200 g

Boyutlar

Packaging (mm): 623 x 383 x 148; Physical (mm): 492 x 367 x 198; Physical Without Stand (mm): 492 x 285 x 48

ports

VGA: 1, USB 3.2 Type A Down Stream: 2, USB 3.2 Type B Up Stream: 1, 3.5mm Audio In: 1, 3.5mm Audio Out: 1, HDMI 1.4: 1, DisplayPort: 1, Power in: 3-pin Socket (IEC C14 / CEE22)

HDMI bağlantı sayısı

1 adet

HDMI sürümü

HDMI 1.4: 1

DisplayPort bağlantı sayısı

1 adet

DisplayPort sürümü

Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz; Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz, DisplayPort (v1.2): 50 ~ 75Hz; Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

Ses çıkışı

3.5mm Audio Out: 1

Hoparlör özellikleri

Internal Speakers: 2Watts x2

Stereo hoparlör

Var

stand Adjustments

Tilt (Forward/Back): -5º / 20º

ergonomic Features

Tilt (Forward/Back): -5º / 20º

Ekran özellikleri

Light Source: LED, Color Space Support: 8 bit (6 bit + FRC), Response Time (Typical GTG): 6ms, Response Time (GTG w/OD): 5.913ms, Backlight Life (Hours): 30000 Hrs (Min), Low Blue Light: Software solution, Flicker-Free: Yes, Pixel Size: 0.249 mm (H) x 0.241 mm (V), Touch Screen: Projected Capacitive, 10-point multi-touch

Kutu içeriği

TD2265 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 22; Display / Viewable Area (in.): 21.5; Display / Panel Type: IPS Technology; Display / Resolution: 1920 x 1080; Display / Resolution Type: FHD (Full HD); Display / Static Contrast Ratio: 1,000:1 (typ); Display / Dynamic Contrast Ratio: 20M:1; Display / Light Source: LED; Display / Brightness: 250 cd/m² (typ); Display / Colors: 16.7M; Display / Color Space Support: 8 bit (6 bit + FRC); Display / Aspect Ratio: 16:9; Display / Response Time (Typical GTG): 6ms; Display / Response Time (GTG w/OD): 5.913ms; Display / Viewing Angles: 178º horizontal, 178º vertical; Display / Backlight Life (Hours): 30000 Hrs (Min); Display / Curvature: Flat; Display / Refresh Rate (Hz): 60; Display / Low Blue Light: Software solution; Display / Flicker-Free: Yes; Display / Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ); Display / Pixel Size: 0.249 mm (H) x 0.241 mm (V); Display / Touch Screen: Projected Capacitive, 10-point multi-touch; Display / Surface Treatment: Glossy, Hard Coating (7H); Display / Cover Glass Thickness: 0.7mm; Compatibility / PC Resolution (max): 1920x1080; Compatibility / Mac® Resolution (max): 1920x1080; Compatibility / PC Operating System: Windows 10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 1920x1080; Connector / VGA: 1; Connector / USB 3.2 Type A Down Stream: 2; Connector / USB 3.2 Type B Up Stream: 1; Connector / 3.5mm Audio In: 1; Connector / 3.5mm Audio Out: 1; Connector / HDMI 1.4: 1, Connector / DisplayPort: 1; Connector / Power in: 3-pin Socket (IEC C14 / CEE22); Audio / Internal Speakers: 2Watts x2; Power / Eco Mode (Conserve): 14W; Power / Eco Mode (optimized): 16W; Power / Consumption (typical): 17W; Power / Consumption (max): 18W; Power / Voltage: AC 100-240V; Power / Stand-by: 0.5W; Power / Power Supply: Internal Power Supply; Additional Hardware / Kensington Lock Slot: 1; Additional Hardware / Cable Organization: Yes; Controls / Physical Controls: 1, 2, Up, Down, Power; Controls / On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Wall Mount / VESA Compatible: 100 x 100 mm; Input Signal / Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz; Input Signal / Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz, DisplayPort (v1.2): 50 ~ 75Hz; Video Input / Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2); Video Input / Analog Sync: Separate/Composite/SOG - RGB Analog; Ergonomics / Tilt (Forward/Back): -5º / 20º; Weight (imperial) / Net (lbs): 9.3; Weight (imperial) / Net Without Stand (lbs): 7.1; Weight (imperial) / Gross (lbs): 12.3; Weight (metric) / Net (kg): 4.2; Weight (metric) / Net Without Stand (kg): 3.2, Weight (metric) / Gross (kg): 5.6; Dimensions (imperial) (wxhxd) / Packaging (in.): 24.5 x 15.1 x 5.8; Dimensions (imperial) (wxhxd) / Physical (in.): 19.4 x 14.4 x 7.8; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 19.4 x 11.2 x 1.9; Dimensions (metric) (wxhxd) / Packaging (mm): 623 x 383 x 148; Dimensions (metric) (wxhxd) / Physical (mm): 492 x 367 x 198; Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 492 x 285 x 48; General / Regulations: RoHS, WEEE, BSMI; General / PACKAGE CONTENTS: TD2265 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market

technical Details Continued

Overview heading: 22” Frameless Touch Monitor with 10 Points PCAP, Manufacturer feature: Touch function for wet hands and multiple types of glove, Manufacturer feature: Pen clicks & Palm rejection technology, Manufacturer feature: 4-sides frameless design and optional stand for flexibility, Manufacturer feature: Friendly touch mode setting, Manufacturer feature: Intuitive touch OSD with ViewSonic Touch Controller
