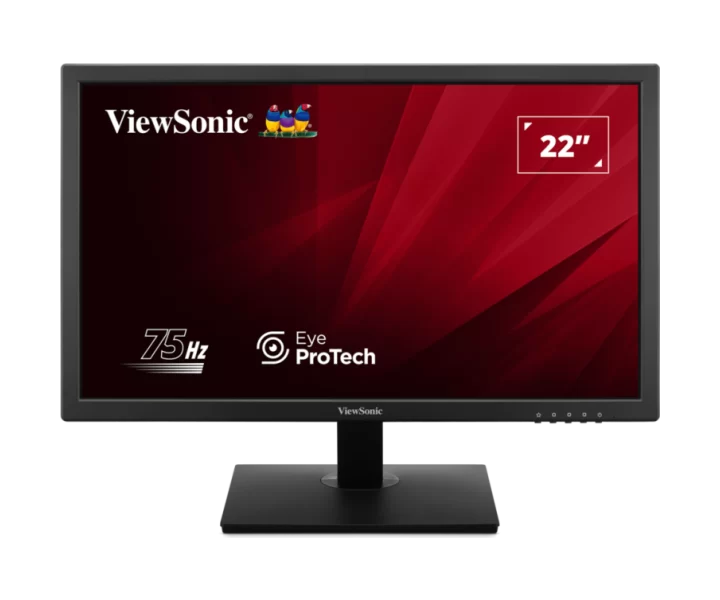

VA22E1-H özellikleri ve fiyatları

VA22E1-H teknik özellikleri

Model kodu

VA22E1-H

Ekran boyutu

21.5 inç

Ekran çözünürlüğü

1920 x 1080

Ekran teknolojisi

TN Technology

Ekran yenileme hızı

75 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 75; Frequency Horizontal: RGB Analog: 30 ~ 83KHz, HDMI (v1.4): 30 ~ 85KHz; Frequency Vertical: RGB Analog: 56 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz; Digital Sync: TMDS - HDMI (v1.4); Analog Sync: Separate - RGB Analog

resolution Conditions

Resolution: 1920 x 1080; Refresh Rate (Hz): 75; Frequency Horizontal: RGB Analog: 30 ~ 83KHz, HDMI (v1.4): 30 ~ 85KHz; Frequency Vertical: RGB Analog: 56 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz; Digital Sync: TMDS - HDMI (v1.4); Analog Sync: Separate - RGB Analog

Çözünürlük standardı

FHD (Full HD)

contrast Ratio

1,000:1 (typ)

Ekran oranı

16:9

Ekran renk sayısı

16.7M

viewing Angle

170º horizontal, 160º vertical

screen Curvature

Flat

screen Finish

Anti-Glare, Hard Coating (3H)

Renk gamı

NTSC: 72% size (Typ) sRGB: 101% size (Typ)

vesa Mount

100 x 100 mm

tilt

-5º / 20º

power Supply Type

External Power Adaptor

Tepe parlaklık

250 nit

Tipik parlaklık

250 nit

power Consumption

18

power Standby

0.5

Ağırlık

3200 g

Boyutlar

Packaging (mm): 583 x 383 x 109; Physical (mm): 511.9 x 387.2 x 185; Physical Without Stand (mm): 511.9 x 305.9 x 38.9

ports

VGA: 1, 3.5mm Audio Out: 1, HDMI 1.4: 1, Power in: DC Socket (Center Positive)

HDMI bağlantı sayısı

1 adet

HDMI sürümü

HDMI 1.4: 1

Ses çıkışı

3.5mm Audio Out: 1

stand Adjustments

Tilt (Forward/Back): -5º / 20º

ergonomic Features

Tilt (Forward/Back): -5º / 20º

Ekran özellikleri

Light Source: LED, Color Space Support: 8 bit (6 bit + FRC), Response Time (Typical Tr+Tf): 5ms, Backlight Life (Hours): 30000 Hrs (Min), Low Blue Light: Software solution, Flicker-Free: Yes, Pixel Size: 0.248 mm (H) x 0.248 mm (V)

Kutu içeriği

VA22E1-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 22; Display / Viewable Area (in.): 21.5; Display / Panel Type: TN Technology; Display / Resolution: 1920 x 1080; Display / Resolution Type: FHD (Full HD); Display / Static Contrast Ratio: 1,000:1 (typ); Display / Dynamic Contrast Ratio: 50M:1; Display / Light Source: LED; Display / Brightness: 250 cd/m² (typ); Display / Colors: 16.7M; Display / Color Space Support: 8 bit (6 bit + FRC); Display / Aspect Ratio: 16:9; Display / Response Time (Typical Tr+Tf): 5ms; Display / Viewing Angles: 170º horizontal, 160º vertical; Display / Backlight Life (Hours): 30000 Hrs (Min); Display / Curvature: Flat; Display / Refresh Rate (Hz): 75; Display / Low Blue Light: Software solution; Display / Flicker-Free: Yes; Display / Color Gamut: NTSC: 72% size (Typ) sRGB: 101% size (Typ); Display / Pixel Size: 0.248 mm (H) x 0.248 mm (V); Display / Surface Treatment: Anti-Glare, Hard Coating (3H); Compatibility / PC Resolution (max): 1920x1080; Compatibility / Mac® Resolution (max): 1920x1080; Compatibility / PC Operating System: Windows 10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 1920x1080; Connector / VGA: 1; Connector / 3.5mm Audio Out: 1; Connector / HDMI 1.4: 1; Connector / Power in: DC Socket (Center Positive); Power / Eco Mode (Conserve): 14W; Power / Eco Mode (optimized): 16W; Power / Consumption (typical): 18W; Power / Consumption (max): 20W; Power / Voltage: AC 100-240V; Power / Stand-by: 0.5W, Power / Power Supply: External Power Adaptor; Additional Hardware / Kensington Lock Slot: 1; Controls / Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power); Controls / On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Wall Mount / VESA Compatible: 100 x 100 mm; Input Signal / Frequency Horizontal: RGB Analog: 30 ~ 83KHz, HDMI (v1.4): 30 ~ 85KHz; Input Signal / Frequency Vertical: RGB Analog: 56 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz; Video Input / Digital Sync: TMDS - HDMI (v1.4); Video Input / Analog Sync: Separate - RGB Analog; Ergonomics / Tilt (Forward/Back): -5º / 20º; Weight (imperial) / Net (lbs): 7; Weight (imperial) / Net Without Stand (lbs): 6.2; Weight (imperial) / Gross (lbs): 9.1; Weight (metric) / Net (kg): 3.2; Weight (metric) / Net Without Stand (kg): 2.8; Weight (metric) / Gross (kg): 4.1; Dimensions (imperial) (wxhxd) / Packaging (in.): 23 x 15.1 x 4.3; Dimensions (imperial) (wxhxd) / Physical (in.): 20.15 x 15.24 x 7.28; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 20.15 x 12.04 x 1.53; Dimensions (metric) (wxhxd) / Packaging (mm): 583 x 383 x 109; Dimensions (metric) (wxhxd) / Physical (mm): 511.9 x 387.2 x 185; Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 511.9 x 305.9 x 38.9; General / Regulations: RoHS, WEEE, General / PACKAGE CONTENTS: VA22E1-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market
