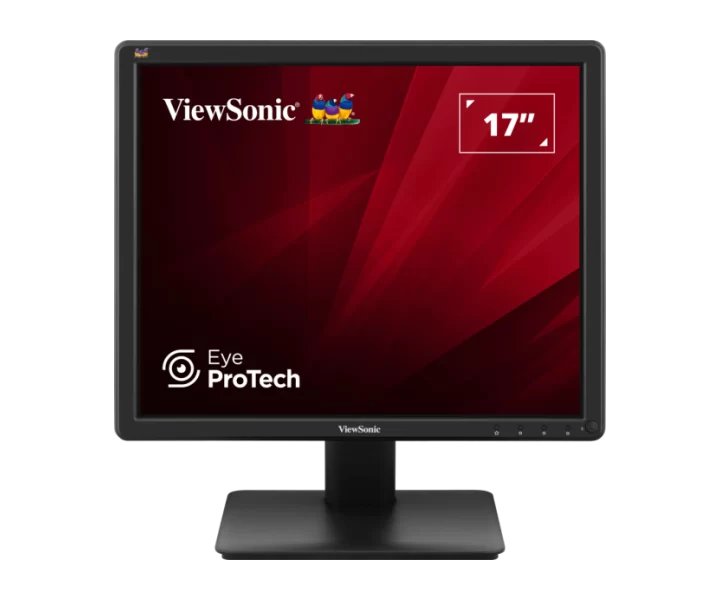

VA709 özellikleri ve fiyatları

VA709 teknik özellikleri

Model kodu

VA709

Ekran boyutu

17 inç

Ekran çözünürlüğü

1280 x 1024

Ekran teknolojisi

TN Technology

Ekran yenileme hızı

75 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 75; Frequency Horizontal: 30 ~ 83KHz; Frequency Vertical: 50 ~ 76Hz; Digital Sync: TMDS - DVI-D; Analog Sync: Separate - RGB Analog

resolution Conditions

Resolution: 1280 x 1024; Refresh Rate (Hz): 75; Frequency Horizontal: 30 ~ 83KHz; Frequency Vertical: 50 ~ 76Hz; Digital Sync: TMDS - DVI-D; Analog Sync: Separate - RGB Analog

Çözünürlük standardı

SXGA (Super XGA)

contrast Ratio

1,000:1 (typ)

Ekran oranı

5:4

Ekran renk sayısı

16.7M

viewing Angle

170º horizontal, 160º vertical

screen Curvature

Flat

screen Finish

Anti-Glare, Hard Coating (3H)

Renk gamı

NTSC: 72% size (Typ) sRGB: 103% size (Typ)

vesa Mount

100 x 100 mm

tilt

-5º / 20º

power Supply Type

Internal Power Supply

Tepe parlaklık

250 nit

Tipik parlaklık

250 nit

power Consumption

14

power Standby

0.5

Ağırlık

2500 g

Boyutlar

Packaging (mm): 446 x 382 x 138; Physical (mm): 373.8 x 385.7 x 184.8; Physical Without Stand (mm): 373.8 x 307.1 x 47

ports

VGA: 1, DVI-D (Dual Link): 1, Power in: 3-pin Socket (IEC C14 / CEE22)

stand Adjustments

Tilt (Forward/Back): -5º / 20º

ergonomic Features

Tilt (Forward/Back): -5º / 20º

Ekran özellikleri

Light Source: LED, Color Space Support: 8 bit (6 bit + Hi-FRC), Response Time (Typical Tr+Tf): 5ms, Backlight Life (Hours): 30000 Hrs (Min), Low Blue Light: Software solution, Flicker-Free: Yes, Pixel Size: 0.264 mm (H) x 0.264 mm (V)

Kutu içeriği

VA709 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 17; Display / Viewable Area (in.): 17; Display / Panel Type: TN Technology; Display / Resolution: 1280 x 1024; Display / Resolution Type: SXGA (Super XGA); Display / Static Contrast Ratio: 1,000:1 (typ); Display / Dynamic Contrast Ratio: 50M:1; Display / Light Source: LED; Display / Brightness: 250 cd/m² (typ); Display / Colors: 16.7M; Display / Color Space Support: 8 bit (6 bit + Hi-FRC); Display / Aspect Ratio: 5:4; Display / Response Time (Typical Tr+Tf): 5ms; Display / Viewing Angles: 170º horizontal, 160º vertical; Display / Backlight Life (Hours): 30000 Hrs (Min); Display / Curvature: Flat; Display / Refresh Rate (Hz): 75; Display / Low Blue Light: Software solution; Display / Flicker-Free: Yes; Display / Color Gamut: NTSC: 72% size (Typ) sRGB: 103% size (Typ); Display / Pixel Size: 0.264 mm (H) x 0.264 mm (V); Display / Surface Treatment: Anti-Glare, Hard Coating (3H); Compatibility / PC Resolution (max): 1280x1024; Compatibility / Mac® Resolution (max): 1280x1024; Compatibility / PC Operating System: Windows 10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 1280x1024; Connector / VGA: 1; Connector / DVI-D (Dual Link): 1; Connector / Power in: 3-pin Socket (IEC C14 / CEE22); Power / Eco Mode (Conserve): 10W; Power / Eco Mode (optimized): 12W; Power / Consumption (typical): 14W; Power / Consumption (max): 16W; Power / Voltage: AC 100-240V; Power / Stand-by: 0.5W; Power / Power Supply: Internal Power Supply, Additional Hardware / Kensington Lock Slot: 1; Controls / Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power); Controls / On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Wall Mount / VESA Compatible: 100 x 100 mm; Input Signal / Frequency Horizontal: 30 ~ 83KHz; Input Signal / Frequency Vertical: 50 ~ 76Hz; Video Input / Digital Sync: TMDS - DVI-D; Video Input / Analog Sync: Separate - RGB Analog; Ergonomics / Tilt (Forward/Back): -5º / 20º; Weight (imperial) / Net (lbs): 5.5; Weight (imperial) / Net Without Stand (lbs): 4.6; Weight (imperial) / Gross (lbs): 7.7; Weight (metric) / Net (kg): 2.5; Weight (metric) / Net Without Stand (kg): 2.1; Weight (metric) / Gross (kg): 3.5; Dimensions (imperial) (wxhxd) / Packaging (in.): 17.6 x 15 x 5.4; Dimensions (imperial) (wxhxd) / Physical (in.): 14.72 x 15.19 x 7.28; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 14.72 x 12.09 x 1.85; Dimensions (metric) (wxhxd) / Packaging (mm): 446 x 382 x 138; Dimensions (metric) (wxhxd) / Physical (mm): 373.8 x 385.7 x 184.8; Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 373.8 x 307.1 x 47; General / Regulations: RoHS, WEEE, BSMI, CCC, China RoHS, China Energy Label, CECP, General / PACKAGE CONTENTS: VA709 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market
