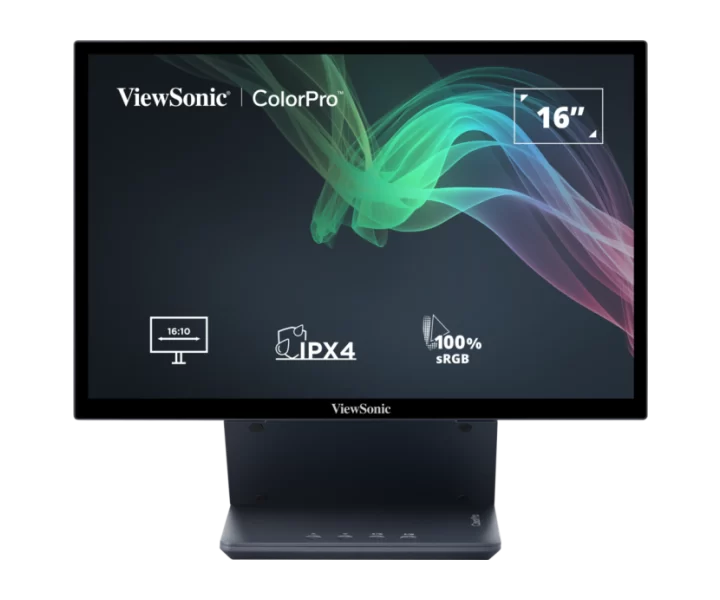

VP1656 özellikleri ve fiyatları

VP1656 teknik özellikleri

Model kodu

VP1656

Ekran boyutu

16 inç

Ekran çözünürlüğü

1920 x 1200

Ekran teknolojisi

IPS Technology

Ekran yenileme hızı

75 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 75; Frequency Horizontal: 24 ~ 95KHz; Frequency Vertical: 24 ~ 75Hz; Digital Sync: TMDS - micro HDMI (v1.4), Micro-Packet - Type C

resolution Conditions

Resolution: 1920 x 1200; Refresh Rate (Hz): 75; Frequency Horizontal: 24 ~ 95KHz; Frequency Vertical: 24 ~ 75Hz; Digital Sync: TMDS - micro HDMI (v1.4), Micro-Packet - Type C

Çözünürlük standardı

WUXGA (Wide UXGA)

contrast Ratio

1,200:1 (typ)

Ekran oranı

16:10

Ekran renk sayısı

16.7M

viewing Angle

170º horizontal, 170º vertical

screen Curvature

Flat

screen Finish

Anti-Glare, Hard Coating (3H)

Ekran koruması

3H

Renk gamı

Adobe RGB: 77% size / 77% coverage (Typ) DCI-P3: 77% size / 77% coverage (Typ) EBU: 103% size / 100% coverage (Typ) REC709: 104% size / 100% coverage (Typ) SMPTE-C: 113% size / 100% coverage (Typ) NTSC: 72% size (Typ) sRGB: 104% size / 100% coverage (Typ)

tilt

-55º / 20º

power Supply Type

External Power Adaptor

Tepe parlaklık

300 nit

Tipik parlaklık

300 nit

response Time

6.5

response Time Method

Typical GtG

power Consumption

8

power Standby

0.5

Ağırlık

1600 g

Boyutlar

Packaging (mm): 425 x 316 x 129; Physical (mm): 363.88 x 239.52~327.32 x 23.15; Physical Without Stand (mm): 363.88 x 239.52 x 9.7

ports

USB 3.2 Type C Up Stream; DisplayPort Alt mode: 2 (40W power charger), 3.5mm Audio Out: 1, Micro HDMI 1.4 In: 1, Power in: USB Type C (with video & data)

usb Power Delivery Watts

40

Ses çıkışı

3.5mm Audio Out: 1

Hoparlör özellikleri

Internal Speakers: 1Watts x2

Stereo hoparlör

Var

stand Adjustments

Tilt (Forward/Back): -55º / 20º

ergonomic Features

Tilt (Forward/Back): -55º / 20º

Ekran özellikleri

Light Source: LED, Color Space Support: 8 bit true, Response Time (Typical GTG): 6.5ms, Response Time (GTG w/OD): 6.551ms, Backlight Life (Hours): 15000 Hrs (Min), Low Blue Light: Software solution, Pixel Size: 0.18 mm (H) x 0.18 mm (V)

Kutu içeriği

VP1656 x1, micro HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protective bag x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 16; Display / Viewable Area (in.): 16; Display / Panel Type: IPS Technology; Display / Resolution: 1920 x 1200; Display / Resolution Type: WUXGA (Wide UXGA); Display / Static Contrast Ratio: 1,200:1 (typ); Display / Dynamic Contrast Ratio: 20M:1; Display / Light Source: LED; Display / Brightness: 300 cd/m² (typ); Display / Colors: 16.7M; Display / Color Space Support: 8 bit true; Display / Aspect Ratio: 16:10; Display / Response Time (Typical GTG): 6.5ms; Display / Response Time (GTG w/OD): 6.551ms; Display / Viewing Angles: 170º horizontal, 170º vertical; Display / Backlight Life (Hours): 15000 Hrs (Min); Display / Glass Hardness: 3H; Display / Curvature: Flat; Display / Refresh Rate (Hz): 75; Display / Low Blue Light: Software solution; Display / Color Gamut: Adobe RGB: 77% size / 77% coverage (Typ) DCI-P3: 77% size / 77% coverage (Typ) EBU: 103% size / 100% coverage (Typ) REC709: 104% size / 100% coverage (Typ) SMPTE-C: 113% size / 100% coverage (Typ) NTSC: 72% size (Typ) sRGB: 104% size / 100% coverage (Typ); Display / Pixel Size: 0.18 mm (H) x 0.18 mm (V); Display / Surface Treatment: Anti-Glare, Hard Coating (3H); Compatibility / PC Resolution (max): 1920x1200; Compatibility / Mac® Resolution (max): 1920x1200; Compatibility / PC Operating System: Windows 10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 1920x1200; Connector / USB 3.2 Type C Up Stream; DisplayPort Alt mode: 2 (40W power charger), Connector / 3.5mm Audio Out: 1; Connector / Micro HDMI 1.4 In: 1; Connector / Power in: USB Type C (with video & data); Audio / Internal Speakers: 1Watts x2; Power / Eco Mode (Conserve): 6.4W; Power / Eco Mode (optimized): 7.2W; Power / Consumption (typical): 8W; Power / Consumption (max): 15W; Power / Voltage: AC 100-240V; Power / Stand-by: 0.5W; Power / Power Supply: External Power Adaptor; Controls / Physical Controls: Up, Down, Left/Return, Right/Confirmed, Power; Controls / On Screen Display: Input Select, Color Mode, ViewMode, Audio Adjust, Setup Menu; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Input Signal / Frequency Horizontal: 24 ~ 95KHz; Input Signal / Frequency Vertical: 24 ~ 75Hz; Video Input / Digital Sync: TMDS - micro HDMI (v1.4), Micro-Packet - Type C; Ergonomics / Tilt (Forward/Back): -55º / 20º; Weight (imperial) / Net (lbs): 3.4; Weight (imperial) / Net Without Stand (lbs): 3.4; Weight (imperial) / Gross (lbs): 7.1; Weight (metric) / Net (kg): 1.6; Weight (metric) / Net Without Stand (kg): 1.6; Weight (metric) / Gross (kg): 3.2; Dimensions (imperial) (wxhxd) / Packaging (in.): 16.7 x 12.4 x 5.1; Dimensions (imperial) (wxhxd) / Physical (in.): 14.33 x 9.43~12.89 x 0.91; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 14.33 x 9.43 x 0.38; Dimensions (metric) (wxhxd) / Packaging (mm): 425 x 316 x 129, Dimensions (metric) (wxhxd) / Physical (mm): 363.88 x 239.52~327.32 x 23.15; Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 363.88 x 239.52 x 9.7; General / Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, NRCan, RoHS, REACH, WEEE; General / PACKAGE CONTENTS: VP1656 x1, micro HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protective bag x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market; General / Power Management: Energy Star standards, EPEAT

technical Details Continued

Overview heading: 16" Factory Calibrated Portable Monitor with 16:10 Aspect Ratio and 100% sRGB Coverage, Manufacturer feature: 16:10 Aspect Ratio: Maximizes vertical space for a cleaner interface in creative software to enhance productivity.​, Manufacturer feature: Precise Colors: Achieves Delta E <2 color fidelity with 100% sRGB color space coverage and Pantone validation.​, Manufacturer feature: Water Resistance: Withstands splashes with its screen-side IPX4 rating, ensuring adaptability to diverse environments.​, Manufacturer feature: Flexible Positioning: Enhances comfort with adjustable viewing angles thanks to its foldable stand and tripod compatibility.​, Manufacturer feature: Versatile Connectivity: Features dual 40W USB-C ports and a micro-HDMI port for hassle-free camera connections.
