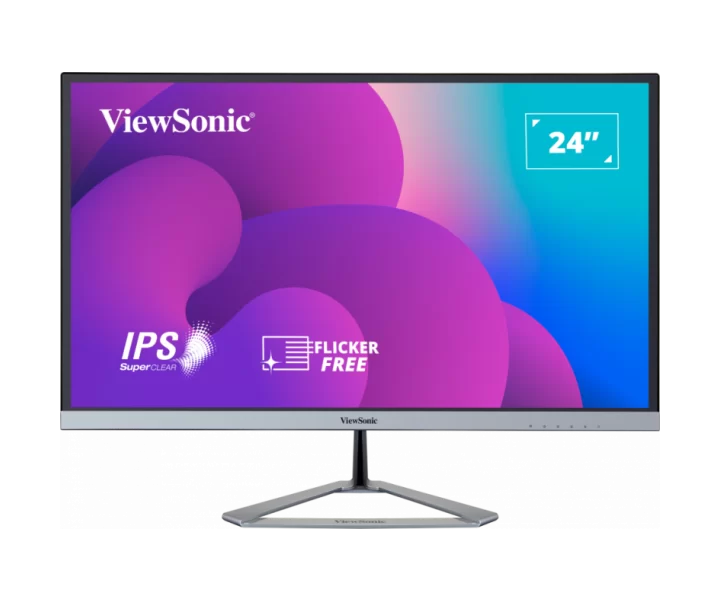

VX2476-smhd özellikleri ve fiyatları

VX2476-smhd teknik özellikleri

Model kodu

VX2476-smhd

Ekran boyutu

23.8 inç

Ekran çözünürlüğü

1920 x 1080

Ekran teknolojisi

IPS Technology

Ekran yenileme hızı

75 Hz

maximum Refresh Rate Conditions

Refresh Rate (Hz): 75; Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz; Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz; Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2); Analog Sync: Separate - RGB Analog

resolution Conditions

Resolution: 1920 x 1080; Refresh Rate (Hz): 75; Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz; Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz; Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2); Analog Sync: Separate - RGB Analog

Çözünürlük standardı

FHD (Full HD)

contrast Ratio

1,000:1 (typ)

Ekran oranı

16:9

Ekran renk sayısı

16.7M

viewing Angle

178º horizontal, 178º vertical

screen Curvature

Flat

screen Finish

Anti-Glare, Hard Coating (3H)

Renk gamı

NTSC: 72% size (Typ) sRGB: 102% size (Typ)

tilt

-5º / 17º

power Supply Type

External Power Adaptor

Tepe parlaklık

250 nit

Tipik parlaklık

250 nit

response Time

4

response Time Method

Typical GtG

power Consumption

18

power Standby

0.5

Ağırlık

3000 g

Boyutlar

Packaging (mm): 604 x 395 x 115; Physical (mm): 540 x 414 x 209; Physical Without Stand (mm): 540 x 323 x 34

ports

VGA: 1, 3.5mm Audio In: 1, 3.5mm Audio Out: 1, HDMI 1.4: 1, DisplayPort: 1, Power in: DC Socket (Center Positive)

HDMI bağlantı sayısı

1 adet

HDMI sürümü

HDMI 1.4: 1

DisplayPort bağlantı sayısı

1 adet

DisplayPort sürümü

Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz; Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz; Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

Ses çıkışı

3.5mm Audio Out: 1

Hoparlör özellikleri

Internal Speakers: 2Watts x2

Stereo hoparlör

Var

stand Adjustments

Tilt (Forward/Back): -5º / 17º

ergonomic Features

Tilt (Forward/Back): -5º / 17º

Ekran özellikleri

Light Source: LED, Color Space Support: 8 bit (6 bit + A-FRC), Response Time (Typical GTG): 4ms, Backlight Life (Hours): 30000 Hrs (Min), Low Blue Light: Software solution, Flicker-Free: Yes, Pixel Size: 0.275 mm (H) x 0.275 mm (V)

Kutu içeriği

B01GV9H1RS xVX2476-SMHD x1, 3-pin Mickey Mouse Plug (IEC C5) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1

Üreticinin ayrıntılı teknik bilgileri

Display / Display Size (in.): 24; Display / Viewable Area (in.): 23.8; Display / Panel Type: IPS Technology; Display / Resolution: 1920 x 1080; Display / Resolution Type: FHD (Full HD); Display / Static Contrast Ratio: 1,000:1 (typ); Display / Dynamic Contrast Ratio: 80M:1; Display / Light Source: LED; Display / Brightness: 250 cd/m² (typ); Display / Colors: 16.7M; Display / Color Space Support: 8 bit (6 bit + A-FRC); Display / Aspect Ratio: 16:9; Display / Response Time (Typical GTG): 4ms; Display / Viewing Angles: 178º horizontal, 178º vertical; Display / Backlight Life (Hours): 30000 Hrs (Min); Display / Curvature: Flat; Display / Refresh Rate (Hz): 75; Display / Low Blue Light: Software solution; Display / Flicker-Free: Yes; Display / Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ); Display / Pixel Size: 0.275 mm (H) x 0.275 mm (V); Display / Surface Treatment: Anti-Glare, Hard Coating (3H); Compatibility / PC Resolution (max): 1920x1080; Compatibility / Mac® Resolution (max): 1920x1080; Compatibility / PC Operating System: Windows 7/8.1/10/11 certified; macOS tested; Compatibility / Mac® Resolution (min): 1920x1080; Connector / VGA: 1; Connector / 3.5mm Audio In: 1; Connector / 3.5mm Audio Out: 1; Connector / HDMI 1.4: 1; Connector / DisplayPort: 1; Connector / Power in: DC Socket (Center Positive); Audio / Internal Speakers: 2Watts x2; Power / Eco Mode (Conserve): 13W; Power / Eco Mode (optimized): 15W; Power / Consumption (typical): 18W, Power / Consumption (max): 20W; Power / Voltage: AC 100-240V; Power / Stand-by: 0.5W; Power / Power Supply: External Power Adaptor; Additional Hardware / Kensington Lock Slot: 1; Controls / Physical Controls: Key 1 (game mode), Key 2, Key 3, Key 4, Key 5, Key 6 (power); Controls / On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu; Operating Conditions / Temperature: 32°F to 104°F (0°C to 40°C); Operating Conditions / Humidity (non-condensing): 20% to 90%; Input Signal / Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz; Input Signal / Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz; Video Input / Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2); Video Input / Analog Sync: Separate - RGB Analog; Ergonomics / Tilt (Forward/Back): -5º / 17º; Weight (imperial) / Net (lbs): 6.5; Weight (imperial) / Net Without Stand (lbs): 5.6; Weight (imperial) / Gross (lbs): 9.9; Weight (metric) / Net (kg): 3; Weight (metric) / Net Without Stand (kg): 2.5; Weight (metric) / Gross (kg): 4.5; Dimensions (imperial) (wxhxd) / Packaging (in.): 23.8 x 15.6 x 4.5; Dimensions (imperial) (wxhxd) / Physical (in.): 21.3 x 16.3 x 8.2; Dimensions (imperial) (wxhxd) / Physical Without Stand (in.): 21.3 x 12.7 x 1.3; Dimensions (metric) (wxhxd) / Packaging (mm): 604 x 395 x 115; Dimensions (metric) (wxhxd) / Physical (mm): 540 x 414 x 209, Dimensions (metric) (wxhxd) / Physical Without Stand (mm): 540 x 323 x 34; General / Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, REACH, WEEE, VCCI, PSE, CCC, China RoHS, China Energy Label; General / PACKAGE CONTENTS: B01GV9H1RS xVX2476-SMHD x1, 3-pin Mickey Mouse Plug (IEC C5) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1; General / Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.; General / Warranty: *Warranty offered may differ from market to market; General / Power Management: Energy Star standards, EPEAT

technical Details Continued

Overview heading: 24" Frameless Entertainment Monitor, Manufacturer feature: SuperClear® IPS technology, Manufacturer feature: Frameless bezel and metallic triangle stand, Manufacturer feature: Full HD 1080p resolution, Manufacturer feature: Flicker-Free and Blue Light Filter, Manufacturer feature: HDMI, DisplayPort and VGA inputs
