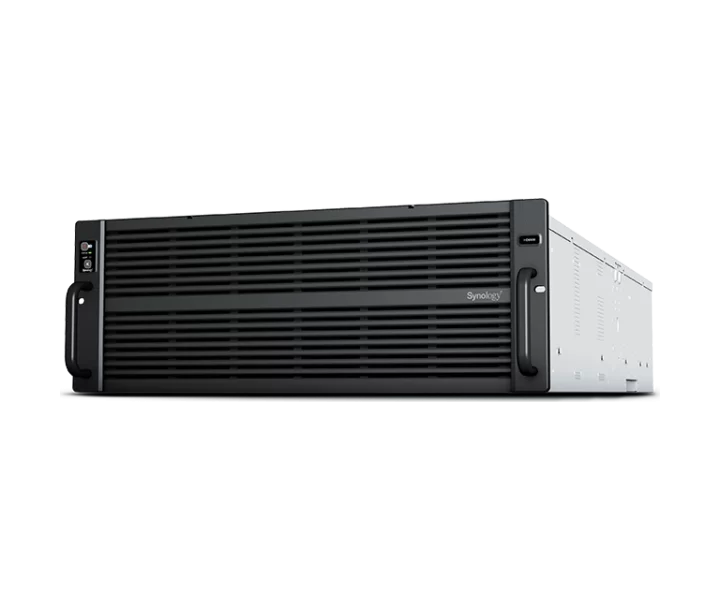

Synology HD6500 özellikleri ve fiyatları

Synology HD6500 teknik özellikleri

Model kodu

HD6500

Depolama cihazı türü

NAS

İşlemci

Intel Xeon Silver 4210R

İşlemci çekirdek sayısı

10

İşlemci mimarisi

64-bit

cpu Frequency Conditions

2.4 (base) / 3.2 (turbo) GHz

Takılı sistem belleği

64 GB DDR4 ECC RDIMM

Bellek yuvaları

16

Desteklenen azami bellek

512 GB (32 GB × 16)

Yerleşik ağ bağlantıları

RJ-45 1GbE LAN Port: 2; RJ-45 10GbE LAN Port: 2; Out-of-Band Management LAN Port: 1

Ağ bağlantısı koşulları

15

USB bağlantıları

USB 3.2 Gen 1 Port: 2

Harici genişletme bağlantıları

Expansion Port: 2; Expansion Port Type: Mini-SAS HD

PCIe yuvaları

PCIe Expansion: 2 × Gen3 x16 slot (x16 link) 2 × Gen3 x8 slots (x8 link)

Üreticinin belirttiği boyutlar

176 mm × 482 mm × 1020 mm

Üreticinin belirttiği ağırlık

37.9 kg

Soğutma fanları

80 mm × 80 mm × 4 pcs

Fan gürültü koşulları

60.8 dB(A); Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with Synology 8TB HAS5300-8T hard drive(s).

Güç kaynağı

Power Supply Unit / Adapter: 1600 watts; AC Input Power Voltage: 200V to 240V AC; Power Frequency: 50/60 Hz, Single Phase

power Consumption Conditions

Power Consumption: 1025.2 watts (Access) 418 watts (HDD Hibernation); Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with Synology 8TB HAS5300-8T hard drive(s).

Çalışma sıcaklığı

0°C to 35°C (32°F to 95°F)

Saklama sıcaklığı

-20°C to 60°C (-5°F to 140°F)

Çalışma nemi

8% to 80% RH

drive Bays

60

Bellek kapasitesi ve modül koşulları

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Sürücü ve çalışırken değiştirme koşulları

To install 2.5" SATA SSDs, optional 2.5" drive trays (R5) must be purchased separately. Learn more Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability. Two Synology SATA SSDs are included in the accessory pack for use as system drives.

Garanti koşulları

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Sürücü yuvası koşulları

60 × 3.5" SAS HDD or 2.5" SATA SSD

Üreticinin ayrıntılı teknik bilgileri

CPU Model: Intel Xeon Silver 4210R, CPU Cores: 10, CPU Architecture: 64-bit, CPU Frequency: 2.4 (base) / 3.2 (turbo) GHz, System Memory: 64 GB DDR4 ECC RDIMM, Total Memory Slots: 16, Maximum Memory Capacity: 512 GB (32 GB × 16), RJ-45 1GbE LAN Port: 2, RJ-45 10GbE LAN Port: 2, Out-of-Band Management LAN Port: 1, Max. Number of LAN Ports: 15, USB 3.2 Gen 1 Port: 2, Expansion Port: 2, Expansion Port Type: Mini-SAS HD, PCIe Expansion: 2 × Gen3 x16 slot (x16 link) 2 × Gen3 x8 slots (x8 link), Size (Height × Width × Depth): 176 mm × 482 mm × 1020 mm, Weight: 37.9 kg, System Fan: 80 mm × 80 mm × 4 pcs, Noise Level: 60.8 dB(A), Notes: Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with Synology 8TB HAS5300-8T hard drive(s)., Power Supply Unit / Adapter: 1600 watts, AC Input Power Voltage: 200V to 240V AC, Power Frequency: 50/60 Hz, Single Phase, Power Consumption: 1025.2 watts (Access) 418 watts (HDD Hibernation), Operating Temperature: 0°C to 35°C (32°F to 95°F), Storage Temperature: -20°C to 60°C (-5°F to 140°F), Operating Humidity: 8% to 80% RH, Drive bays: 60 bays, Notes: Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations., Notes: To install 2.5" SATA SSDs, optional 2.5" drive trays (R5) must be purchased separately. Learn more Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability. Two Synology SATA SSDs are included in the accessory pack for use as system drives., Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more), Drive Bays (See all supported drives): 60 × 3.5" SAS HDD or 2.5" SATA SSD
