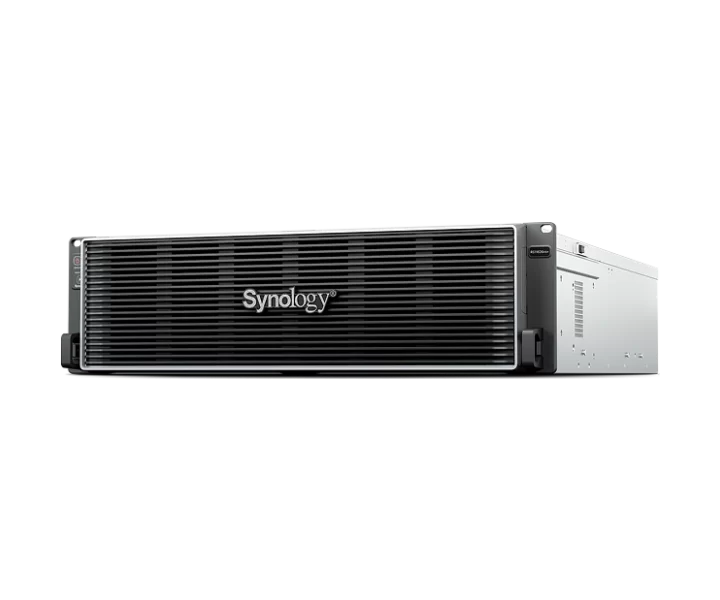

Synology RS11626xs+ özellikleri ve fiyatları

Synology RS11626xs+ teknik özellikleri

Model kodu

RS11626xs+

Depolama cihazı türü

NAS

İşlemci

AMD EPYC 7303

İşlemci çekirdek sayısı

16

İşlemci mimarisi

64-bit

cpu Frequency Conditions

2.4 (base) / 3.4 (turbo) GHz

Takılı sistem belleği

64 GB DDR4 ECC RDIMM

Bellek yuvaları

16

Desteklenen azami bellek

1024 GB (64 GB × 16)

Yerleşik ağ bağlantıları

RJ-45 10GbE LAN Port: 2; Out-of-Band Management LAN Port: 1

USB bağlantıları

USB 3.2 Gen 1 Port: 2

Harici genişletme bağlantıları

Expansion Port: 8; Expansion Port Type: Mini-SAS HD

PCIe yuvaları

PCIe Expansion: 2 × Gen4 x16 slot (x16 link)

Üreticinin belirttiği boyutlar

132.3 mm × 482 mm × 724 mm

Üreticinin belirttiği ağırlık

19.68 kg

Soğutma fanları

80 mm × 80 mm × 4 pcs

Fan gürültü koşulları

52.9 dB(A); For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Güç kaynağı

Power Supply Unit / Adapter: 800 watts; AC Input Power Voltage: 100V to 240V AC; Power Frequency: 50/60 Hz, Single Phase

power Consumption Conditions

Power Consumption: 238.4 watts (Access) 127.26 watts (HDD Hibernation); For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Çalışma sıcaklığı

0°C to 35°C (32°F to 95°F)

Saklama sıcaklığı

-20°C to 60°C (-5°F to 140°F)

Çalışma nemi

8% to 80% RH

drive Bays

20

Bellek kapasitesi ve modül koşulları

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Sürücü ve çalışırken değiştirme koşulları

Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article . SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately.

Montaj ve birlikte verilmeyen parçalar

The rail kit is sold separately

Garanti koşulları

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Sürücü yuvası koşulları

16 × 3.5" SATA HDD or 2.5" SATA SSD 4 × 2.5" SATA SSD

Üreticinin ayrıntılı teknik bilgileri

CPU Model: AMD EPYC 7303, CPU Cores: 16, CPU Architecture: 64-bit, CPU Frequency: 2.4 (base) / 3.4 (turbo) GHz, System Memory: 64 GB DDR4 ECC RDIMM, Total Memory Slots: 16, Maximum Memory Capacity: 1024 GB (64 GB × 16), RJ-45 10GbE LAN Port: 2, Out-of-Band Management LAN Port: 1, USB 3.2 Gen 1 Port: 2, Expansion Port: 8, Expansion Port Type: Mini-SAS HD, PCIe Expansion: 2 × Gen4 x16 slot (x16 link), Size (Height × Width × Depth): 132.3 mm × 482 mm × 724 mm, Weight: 19.68 kg, System Fan: 80 mm × 80 mm × 4 pcs, Noise Level: 52.9 dB(A), Notes: For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%., Power Supply Unit / Adapter: 800 watts, AC Input Power Voltage: 100V to 240V AC, Power Frequency: 50/60 Hz, Single Phase, Power Consumption: 238.4 watts (Access) 127.26 watts (HDD Hibernation), Operating Temperature: 0°C to 35°C (32°F to 95°F), Storage Temperature: -20°C to 60°C (-5°F to 140°F), Operating Humidity: 8% to 80% RH, Drive bays: 20 bays, Notes: Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations., Notes: Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article . SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately., Notes: The rail kit is sold separately, Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more), Drive Bays (See all supported drives): 16 × 3.5" SATA HDD or 2.5" SATA SSD 4 × 2.5" SATA SSD
