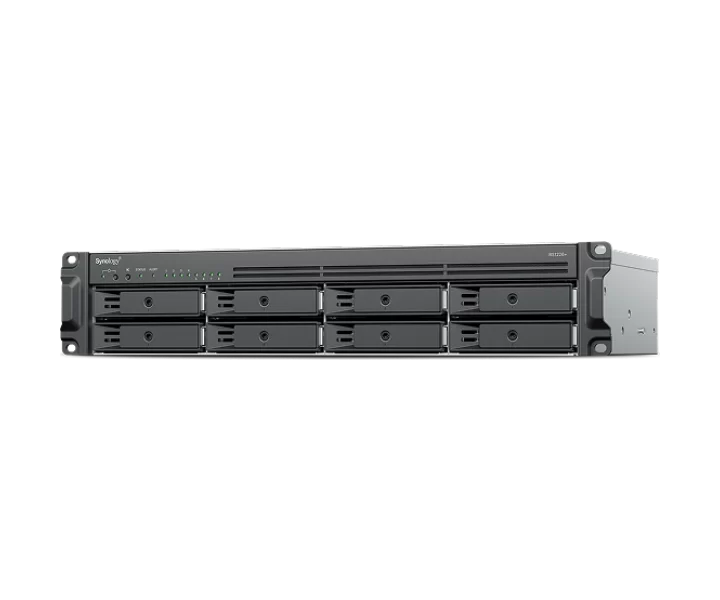

Synology RS1226+ özellikleri ve fiyatları

Synology RS1226+ teknik özellikleri

Model kodu

RS1226+

Depolama cihazı türü

NAS

İşlemci

AMD Ryzen V1500B

İşlemci çekirdek sayısı

4

İşlemci mimarisi

64-bit

cpu Frequency Conditions

2.2 GHz

Takılı sistem belleği

4 GB DDR4 ECC SODIMM

Bellek yuvaları

2

Desteklenen azami bellek

32 GB (16 GB × 2)

Yerleşik ağ bağlantıları

RJ-45 2.5GbE LAN Port: 2

USB bağlantıları

USB 3.2 Gen 1 Port: 2

Harici genişletme bağlantıları

Expansion Port: 1; Expansion Port Type: USB Type-C

PCIe yuvaları

PCIe Expansion: 1 × Gen3 x8 slot (x4 link)

Üreticinin belirttiği boyutlar

88 mm × 482 mm × 306.6 mm

Üreticinin belirttiği ağırlık

6.8 kg

Soğutma fanları

80 mm × 80 mm × 2 pcs

Fan gürültü koşulları

23.3 dB(A); For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Güç kaynağı

Power Supply Unit / Adapter: 250 watts; Redundant Power Supply: -; AC Input Power Voltage: 100 V to 240 V AC; Power Frequency: 50/60 Hz, Single Phase

power Consumption Conditions

Power Consumption: 72.33 watts (Access) 20.74 watts (HDD Hibernation); For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Çalışma sıcaklığı

0°C to 35°C (32°F to 95°F)

Saklama sıcaklığı

-20°C to 60°C (-5°F to 140°F)

Çalışma nemi

8% to 80% RH

Garanti koşulları

3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus; The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.

drive Bays

8

Bellek kapasitesi ve modül koşulları

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Sürücü ve çalışırken değiştirme koşulları

The hot swappable drive feature is not supported by M.2 SSD slots. Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article . SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately.

Montaj ve birlikte verilmeyen parçalar

The rail kit is sold separately

Sürücü yuvası koşulları

8 × 3.5" SATA HDD or 2.5" SATA SSD 2 × M.2 2280 NVMe SSD

Üreticinin ayrıntılı teknik bilgileri

CPU Model: AMD Ryzen V1500B, CPU Cores: 4, CPU Architecture: 64-bit, CPU Frequency: 2.2 GHz, System Memory: 4 GB DDR4 ECC SODIMM, Total Memory Slots: 2, Maximum Memory Capacity: 32 GB (16 GB × 2), RJ-45 2.5GbE LAN Port: 2, USB 3.2 Gen 1 Port: 2, Expansion Port: 1, Expansion Port Type: USB Type-C, PCIe Expansion: 1 × Gen3 x8 slot (x4 link), Size (Height × Width × Depth): 88 mm × 482 mm × 306.6 mm, Weight: 6.8 kg, System Fan: 80 mm × 80 mm × 2 pcs, Noise Level: 23.3 dB(A), Notes: For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%., Power Supply Unit / Adapter: 250 watts, Redundant Power Supply: -, AC Input Power Voltage: 100 V to 240 V AC, Power Frequency: 50/60 Hz, Single Phase, Power Consumption: 72.33 watts (Access) 20.74 watts (HDD Hibernation), Operating Temperature: 0°C to 35°C (32°F to 95°F), Storage Temperature: -20°C to 60°C (-5°F to 140°F), Operating Humidity: 8% to 80% RH, Warranty: 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus, Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites., Drive bays: 8 bays, Notes: Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations., Notes: The hot swappable drive feature is not supported by M.2 SSD slots. Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article . SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately., Notes: The rail kit is sold separately, Drive Bays (See all supported drives): 8 × 3.5" SATA HDD or 2.5" SATA SSD 2 × M.2 2280 NVMe SSD
