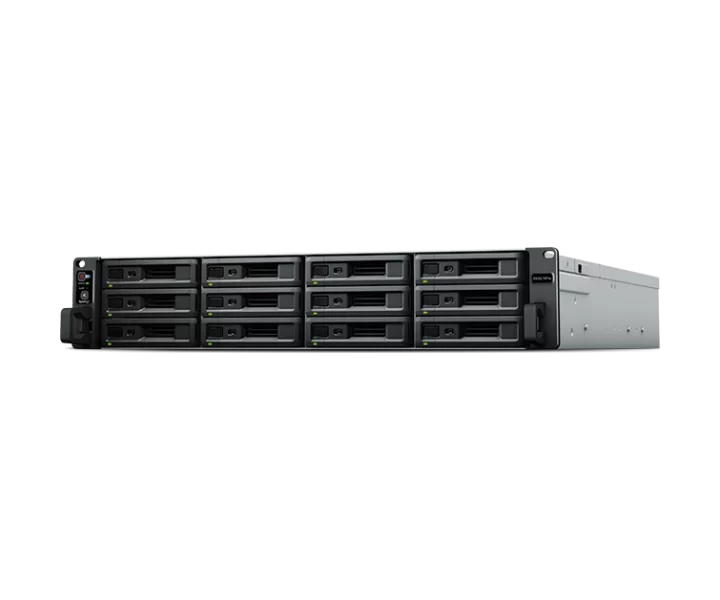

Synology RS3621RPxs özellikleri ve fiyatları

Synology RS3621RPxs teknik özellikleri

Model kodu

RS3621RPxs

Depolama cihazı türü

NAS

İşlemci

Intel Xeon D-1531

İşlemci çekirdek sayısı

6

İşlemci mimarisi

64-bit

cpu Frequency Conditions

2.2 (base) / 2.7 (turbo) GHz

Takılı sistem belleği

8 GB DDR4 ECC UDIMM

Bellek yuvaları

4

Desteklenen azami bellek

64 GB (16 GB × 4)

Yerleşik ağ bağlantıları

RJ-45 1GbE LAN Port: 4

USB bağlantıları

USB 3.2 Gen 1 Port: 2

Harici genişletme bağlantıları

Expansion Port: 2; Expansion Port Type: Infiniband

PCIe yuvaları

PCIe Expansion: 2 × Gen3 x8 slots (x8 link)

Üreticinin belirttiği boyutlar

88 mm × 482 mm × 724 mm

Üreticinin belirttiği ağırlık

14.5 kg

Soğutma fanları

80 mm × 80 mm × 4 pcs

Fan gürültü koşulları

50.2 dB(A); For more information on how power consumption is measured, refer to this article . Power supply specifications vary by hardware revision. A 500 W PSU is used in devices with serial numbers containing SYR (5th to 7th digits), while a 550 W PSU is in devices with UTR and VR2 serial numbers. For more information, refer to the Product Change Notice . Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Güç kaynağı

Power Supply Unit / Adapter: 500 watts 550 watts*; AC Input Power Voltage: 100 V to 240 V AC; Power Frequency: 50/60 Hz, Single Phase

power Consumption Conditions

Power Consumption: 140.01 watts (Access) 65.94 watts (HDD Hibernation); For more information on how power consumption is measured, refer to this article . Power supply specifications vary by hardware revision. A 500 W PSU is used in devices with serial numbers containing SYR (5th to 7th digits), while a 550 W PSU is in devices with UTR and VR2 serial numbers. For more information, refer to the Product Change Notice . Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Çalışma sıcaklığı

0°C to 35°C (32°F to 95°F)

Saklama sıcaklığı

-20°C to 60°C (-5°F to 140°F)

Çalışma nemi

8% to 80% RH

drive Bays

12

Bellek kapasitesi ve modül koşulları

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Sürücü ve çalışırken değiştirme koşulları

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability.

Montaj ve birlikte verilmeyen parçalar

The rail kit is sold separately

Garanti koşulları

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Sürücü yuvası koşulları

12 × 3.5" SATA HDD or 2.5" SATA SSD

Üreticinin ayrıntılı teknik bilgileri

CPU Model: Intel Xeon D-1531, CPU Cores: 6, CPU Architecture: 64-bit, CPU Frequency: 2.2 (base) / 2.7 (turbo) GHz, System Memory: 8 GB DDR4 ECC UDIMM, Total Memory Slots: 4, Maximum Memory Capacity: 64 GB (16 GB × 4), RJ-45 1GbE LAN Port: 4, USB 3.2 Gen 1 Port: 2, Expansion Port: 2, Expansion Port Type: Infiniband, PCIe Expansion: 2 × Gen3 x8 slots (x8 link), Size (Height × Width × Depth): 88 mm × 482 mm × 724 mm, Weight: 14.5 kg, System Fan: 80 mm × 80 mm × 4 pcs, Noise Level: 50.2 dB(A), Notes: For more information on how power consumption is measured, refer to this article . Power supply specifications vary by hardware revision. A 500 W PSU is used in devices with serial numbers containing SYR (5th to 7th digits), while a 550 W PSU is in devices with UTR and VR2 serial numbers. For more information, refer to the Product Change Notice . Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%, Power Supply Unit / Adapter: 500 watts 550 watts*, AC Input Power Voltage: 100 V to 240 V AC, Power Frequency: 50/60 Hz, Single Phase, Power Consumption: 140.01 watts (Access) 65.94 watts (HDD Hibernation), Operating Temperature: 0°C to 35°C (32°F to 95°F), Storage Temperature: -20°C to 60°C (-5°F to 140°F), Operating Humidity: 8% to 80% RH, Drive bays: 12 bays, Notes: Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations., Notes: Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability., Notes: The rail kit is sold separately, Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more), Drive Bays (See all supported drives): 12 × 3.5" SATA HDD or 2.5" SATA SSD
