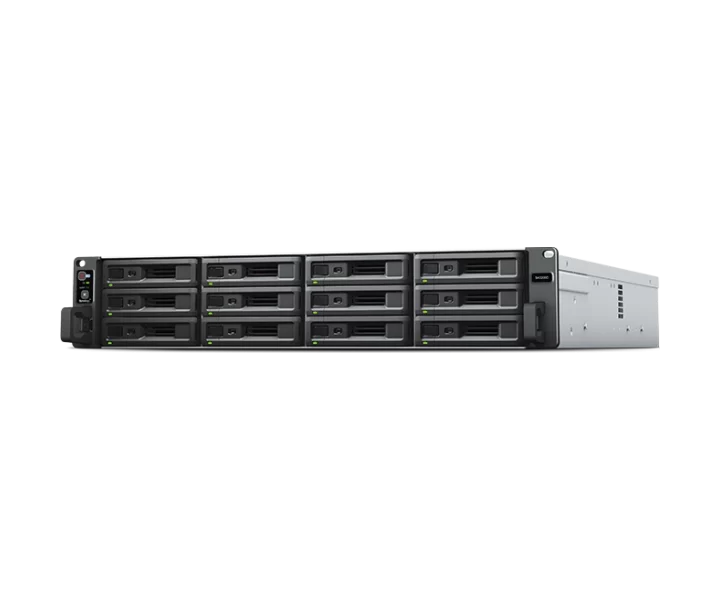

Synology SA3200D özellikleri ve fiyatları

Synology SA3200D teknik özellikleri

Model kodu

SA3200D

Depolama cihazı türü

NAS

İşlemci

Intel Xeon D-1521

İşlemci çekirdek sayısı

4

İşlemci mimarisi

64-bit

cpu Frequency Conditions

2.4 (base) / 2.7 (turbo) GHz

Takılı sistem belleği

8 GB DDR4 ECC UDIMM (per controller)

Bellek yuvaları

4 (per controller)

Desteklenen azami bellek

64 GB (16 GB × 4) (per controller)

Yerleşik ağ bağlantıları

RJ-45 1GbE LAN Port: 2 (per controller); RJ-45 10GbE LAN Port: 1 (per controller)

Harici genişletme bağlantıları

Expansion Port: 1 (per controller); Expansion Port Type: Mini-SAS HD

PCIe yuvaları

PCIe Expansion: 1 × Gen3 x8 slot (x8 link) (per controller)

Üreticinin belirttiği boyutlar

88 mm × 482 mm × 724 mm

Üreticinin belirttiği ağırlık

19.7 kg

Soğutma fanları

60 mm × 60 mm × 2 pcs

Fan gürültü koşulları

51.3 dB(A); Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Güç kaynağı

Power Supply Unit / Adapter: 500 watts; AC Input Power Voltage: 100V to 240V AC; Power Frequency: 50/60 Hz, Single Phase

power Consumption Conditions

Power Consumption: 417.48 watts (Access); Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Çalışma sıcaklığı

0°C to 35°C (32°F to 95°F)

Saklama sıcaklığı

-20°C to 60°C (-5°F to 140°F)

Çalışma nemi

8% to 80% RH

drive Bays

12

Bellek kapasitesi ve modül koşulları

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Montaj ve birlikte verilmeyen parçalar

The rail kit is sold separately

Garanti koşulları

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Sürücü yuvası koşulları

12 × 3.5" dual-port SAS HDD or 2.5" dual-port SAS HDD/SSD

Üreticinin ayrıntılı teknik bilgileri

CPU Model: Intel Xeon D-1521, CPU Cores: 4, CPU Architecture: 64-bit, CPU Frequency: 2.4 (base) / 2.7 (turbo) GHz, System Memory: 8 GB DDR4 ECC UDIMM (per controller), Total Memory Slots: 4 (per controller), Maximum Memory Capacity: 64 GB (16 GB × 4) (per controller), RJ-45 1GbE LAN Port: 2 (per controller), RJ-45 10GbE LAN Port: 1 (per controller), Expansion Port: 1 (per controller), Expansion Port Type: Mini-SAS HD, PCIe Expansion: 1 × Gen3 x8 slot (x8 link) (per controller), Size (Height × Width × Depth): 88 mm × 482 mm × 724 mm, Weight: 19.7 kg, System Fan: 60 mm × 60 mm × 2 pcs, Noise Level: 51.3 dB(A), Notes: Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%., Power Supply Unit / Adapter: 500 watts, AC Input Power Voltage: 100V to 240V AC, Power Frequency: 50/60 Hz, Single Phase, Power Consumption: 417.48 watts (Access), Operating Temperature: 0°C to 35°C (32°F to 95°F), Storage Temperature: -20°C to 60°C (-5°F to 140°F), Operating Humidity: 8% to 80% RH, Drive bays: 12 bays, Notes: Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations., Notes: The rail kit is sold separately, Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more), Drive Bays (See all supported drives): 12 × 3.5" dual-port SAS HDD or 2.5" dual-port SAS HDD/SSD

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
