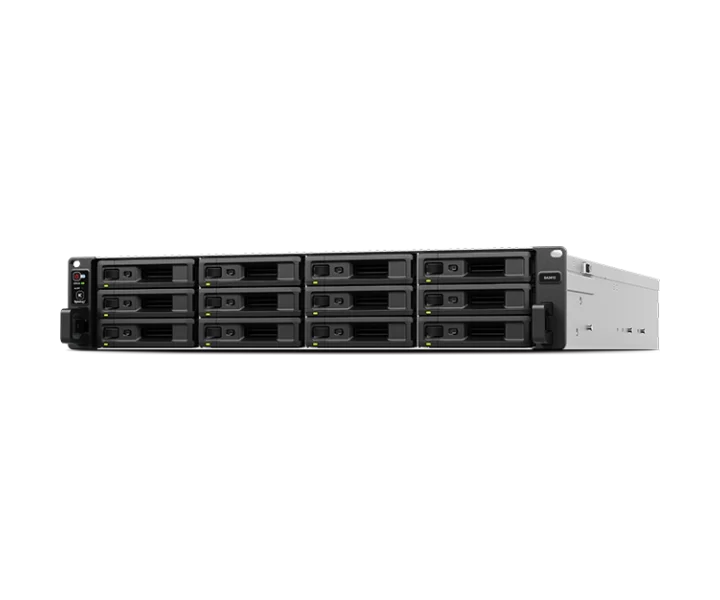

Synology SA3410 özellikleri ve fiyatları

Synology SA3410 teknik özellikleri

Model kodu

SA3410

Depolama cihazı türü

NAS

İşlemci

Intel Xeon D-1541

İşlemci çekirdek sayısı

8

İşlemci mimarisi

64-bit

cpu Frequency Conditions

2.1 (base) / 2.7 (turbo) GHz

Takılı sistem belleği

16 GB DDR4 ECC RDIMM

Bellek yuvaları

4

Desteklenen azami bellek

128 GB (32 GB × 4)

Yerleşik ağ bağlantıları

RJ-45 1GbE LAN Port: 4; RJ-45 10GbE LAN Port: 2; Out-of-Band Management LAN Port: 1

Ağ bağlantısı koşulları

15

USB bağlantıları

USB 3.2 Gen 1 Port: 2

Harici genişletme bağlantıları

Expansion Port: 1; Expansion Port Type: Mini-SAS HD

PCIe yuvaları

PCIe Expansion: 2 × Gen3 x8 slots (x8 link)

Üreticinin belirttiği boyutlar

88 mm × 482 mm × 724 mm

Üreticinin belirttiği ağırlık

14.5 kg

Soğutma fanları

80 mm × 80 mm × 4 pcs

Fan gürültü koşulları

49.8 dB(A); For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Güç kaynağı

Power Supply Unit / Adapter: 550 watts; AC Input Power Voltage: 100V to 240V AC; Power Frequency: 50/60 Hz, Single Phase

power Consumption Conditions

Power Consumption: 136.15 watts (Access) 58.48 watts (HDD Hibernation); For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Çalışma sıcaklığı

0°C to 35°C (32°F to 95°F)

Saklama sıcaklığı

-20°C to 60°C (-5°F to 140°F)

Çalışma nemi

8% to 80% RH

Garanti koşulları

5 Years; The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

drive Bays

12

Bellek kapasitesi ve modül koşulları

Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Sürücü ve çalışırken değiştirme koşulları

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability.

Montaj ve birlikte verilmeyen parçalar

The rail kit is sold separately

Sürücü yuvası koşulları

12 × 3.5" SAS/SATA HDD or 2.5" SAS/SATA SSD

Üreticinin ayrıntılı teknik bilgileri

CPU Model: Intel Xeon D-1541, CPU Cores: 8, CPU Architecture: 64-bit, CPU Frequency: 2.1 (base) / 2.7 (turbo) GHz, System Memory: 16 GB DDR4 ECC RDIMM, Total Memory Slots: 4, Maximum Memory Capacity: 128 GB (32 GB × 4), RJ-45 1GbE LAN Port: 4, RJ-45 10GbE LAN Port: 2, Out-of-Band Management LAN Port: 1, Max. Number of LAN Ports: 15, USB 3.2 Gen 1 Port: 2, Expansion Port: 1, Expansion Port Type: Mini-SAS HD, PCIe Expansion: 2 × Gen3 x8 slots (x8 link), Size (Height × Width × Depth): 88 mm × 482 mm × 724 mm, Weight: 14.5 kg, System Fan: 80 mm × 80 mm × 4 pcs, Noise Level: 49.8 dB(A), Notes: For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%., Power Supply Unit / Adapter: 550 watts, AC Input Power Voltage: 100V to 240V AC, Power Frequency: 50/60 Hz, Single Phase, Power Consumption: 136.15 watts (Access) 58.48 watts (HDD Hibernation), Operating Temperature: 0°C to 35°C (32°F to 95°F), Storage Temperature: -20°C to 60°C (-5°F to 140°F), Operating Humidity: 8% to 80% RH, Warranty: 5 Years, Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more), Drive bays: 12 bays, Notes: Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations., Notes: Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability., Notes: The rail kit is sold separately, Drive Bays (See all supported drives): 12 × 3.5" SAS/SATA HDD or 2.5" SAS/SATA SSD
