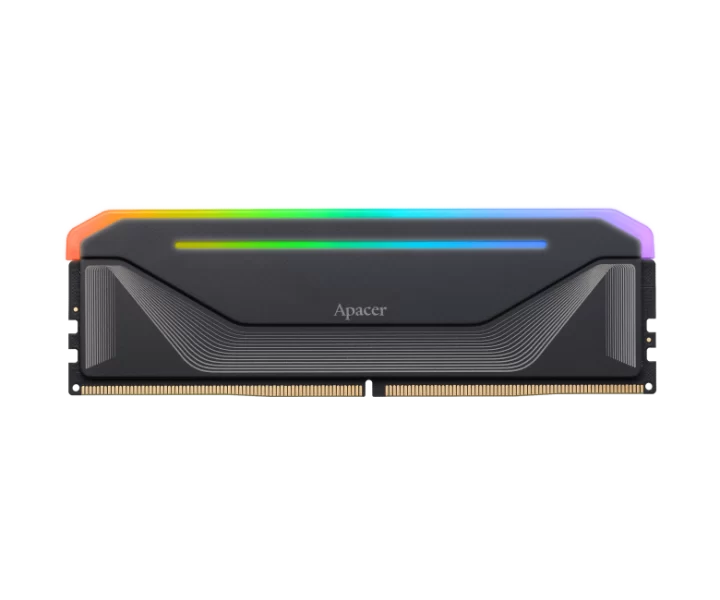

Apacer NOX RGB DDR5 16 GB 5200 MT/s CL40 AH5U16G52C522NBAA-1 özellikleri ve fiyatları

Apacer NOX RGB DDR5 16 GB 5200 MT/s CL40 AH5U16G52C522NBAA-1 teknik özellikleri

Model kodu

AH5U16G52C522NBAA-1

part Number

AH5U16G52C522NBAA-1

RAM kapasitesi

16 GB

module Count

1

module Capacity

16

RAM türü

DDR5

ram Speed MTs

5200

memory Timings

40-40-40-80

cas Latency

40

memory Voltage

1.25

memory Organization

2048x8

memory Form Factor

DIMM

pin Count

288

Boyutlar

(L)133.49 x (W)7.46 x (H)42.67 mm

En

133.49 mm

device Depth

7.46

Boy

42.67 mm

memory Profiles

Intel XMP 3.0 / AMD EXPO

xmp

Var

expo

Var

rgb

Var

Garanti

3 Years

memory Features

True Overclocking Power up to 8000 MT/s; Less than 44mm in height —Ambitious builds; Aluminum alloy heat sink engineered for superior heat dissipation; Equipped with PMIC redefines power stability and efficiency; Supports Intel® XMP 3.0 and AMD EXPO™ one-click overclocking technologies; Ultra-Wide Angle RGB Lighting Diffuser Technology

Üreticinin ayrıntılı teknik bilgileri

Manufacturer family specification — Product Name: NOX RGB DDR5, Manufacturer family specification — Memory Technology: DDR5, Manufacturer family specification — Desktop/Laptop Memory: Desktop Memory, Manufacturer family specification — Capacity: 16GB / 32GB / 24GB / 48GB 16GBx2 / 32GBx2 / 24GBx2 / 48GBx2, Manufacturer family specification — Frequency: 5200 MT/s / 5600 MT/s / 6000 MT/s / 6200 MT/s / 6400 MT/s / 6800 MT/s / 7200 MT/s / 7600 MT/s / 8000 MT/s It is recommended to use a 14th-generation CPU from the Intel® 700 series or higher and DRAM with a frequency rate above 7000 MT/s., Manufacturer family specification — Voltage: 1.25V/1.35V/1.4V/ 1.45V, Manufacturer family specification — Cas Latency: 40-40-40-80/ 38-48-48-96/ 30-40-40-96/ 36-48-48-104/ 32-39-39-84/ 36-46-46-84/ 34-42-42-84/ 38-48-48-84, Manufacturer family specification — Memory Architecture: x8 FBGA DRAM chip, Manufacturer family specification — AMD EXPO: YES, Manufacturer family specification — Intel XMP 3.0: YES, Manufacturer family specification — PIN: 288-pin, Manufacturer family specification — Package: Single package Dual package, Manufacturer family specification — LED: YES, Manufacturer family specification — Certificate: RoHS, CE, FCC, RCM, VCCI, UKCA, JEDEC, Manufacturer family specification — Warranty: 3 Years, Manufacturer feature — True Overclocking Power up to 8000 MT/s, Manufacturer feature — Less than 44mm in height —Ambitious builds, Manufacturer feature — Aluminum alloy heat sink engineered for superior heat dissipation, Manufacturer feature — Equipped with PMIC redefines power stability and efficiency, Manufacturer feature — Supports Intel® XMP 3.0 and AMD EXPO™ one-click overclocking technologies, Manufacturer feature — Ultra-Wide Angle RGB Lighting Diffuser Technology

technical Details Continued

Exact selected factory ordering row — Part No: AH5U16G52C522NBAA-1; EAN Code: 4712389931740; LED: RGB; Speed: DDR5-5200; Capacity: 16GB; Density: 16GBx1; Package: Single; IC Config: 2048x8; Voltage: 1.25V; Timing: 40-40-40-80; H.S Color: Black, Manufacturer family PDF specification/options — ● Model : NOX RGB DDR5, Manufacturer family PDF specification/options — ● Color : Black/Silver, Manufacturer family PDF specification/options — ● Capacity : 16GB/32GB/64GB, Manufacturer family PDF specification/options — ● CL : 40-40-40-80/38-48-48-96/40-40-40-76/32-39-39-84/36-46-46-84/34-42-42-84/36-48-48-84/38-48-48-84, Manufacturer family PDF specification/options — ● Voltage : 1.25V/1.35V/1.4V/1.45V, Manufacturer family PDF specification/options — ● Memory Architecture : x8 FBGA DRAM chip, Manufacturer family PDF specification/options — ● Package : Single package/Dual package, Manufacturer family PDF specification/options — ● Pin : 288-pin, Manufacturer family PDF specification/options — ● Dimensions : (L)133.49 x (W)7.46 x (H)42.67 mm, Manufacturer family PDF specification/options — ● Weight : 46.5g, Manufacturer family PDF specification/options — ● Certificate : RoHS ,CE, FCC, RCM, VCCI, UKCA, JEDEC, Manufacturer family PDF specification/options — ● Warranty : 3 years

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
