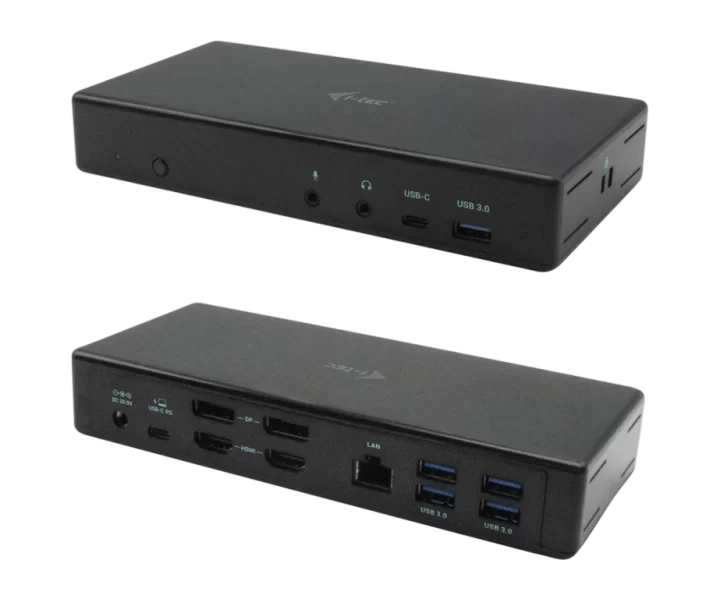

i-tec USB-C Quattro Display Docking Station with Power Delivery 85 W özellikleri ve fiyatları

i-tec USB-C Quattro Display Docking Station with Power Delivery 85 W teknik özellikleri

Model kodu

C31QUATTRODOCKPD

Üretici parça kodu

C31QUATTRODOCKPD

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

1x USB-C port for connecting to a device

USB bağlantıları

1x USB-C 3.2 Gen 1 port (5 Gbps) (data only) | 4x USB-A 3.2 Gen 1 port (5 Gbps) | 1x USB-A 3.2 Gen 1 port (5 Gbps) with Fast Charge support (BC 1.2)

Dock teknolojisi

Docking station technology: USB-C (MST) + DisplayLink 3900

Ana cihaza güç aktarımı ve koşulları

Power Delivery: 85W

Görüntü çıkışları

Video ports: 2x DisplayPort (DP++ support) 2x HDMI

Görüntü kipleri ve bağlantı koşulları

Resolution:

Ethernet bağlantıları

1x Ethernet GLAN RJ-45 port (Realtek RTL8153)

Ses bağlantıları

1x 3.5mm Audio port | 1x 3.5mm Mic port

Güç anahtarı

ON/OFF switch for the docking station

LED göstergeleri

LED indication

MAC adresi kopyalama

MAC Address cloning: Yes (using i-tec Docker Pro software)

Wake-on-LAN

WOL: S1, S2, S3

Güvenlik kilidi

Kensington lock support

Montaj desteği

VESA mount support

Desteklenen işletim sistemleri

OS: Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux | Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux

Cihaz gereksinimleri

Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port | Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port with Power Delivery support | Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or a Thunderbolt™ 3/4/5 port

Verilen kablolar ve uzunlukları

USB-C cable (100 cm)

Üreticinin kullanım koşulları

* macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image. ** iPadOS, Android do not support multi-screen video transfer technology, nor the extended screen option. This means that when connected to an external monitor, only the mirrored screen will be displayed. (Not valid for androids with DEX and Easy Projection extension)

Boyutlar

Product dimensions: 197 x 85 x 34 mm

Paket boyutları

Package dimensions: 260 x 215 x 48 mm

Paket ağırlığı tanımı

Package weight: 1167 g

Ağırlık

296 g

Kutu içeriği

Product | USB-C cable (100 cm) | Charging adapter (output: 20 V/6.75 A, 160 cm DC cable) | Instruction manual

Üreticinin ayrıntılı teknik bilgileri

Specifications / 1x USB-C port for connecting to a device, Specifications / Docking station technology: USB-C (MST) + DisplayLink 3900, Specifications / Power Delivery: 85W, Specifications / Video ports: 2x DisplayPort (DP++ support) 2x HDMI, Specifications / Resolution:, Specifications / DisplayLink ports (2x HDMI): 1 monitor: up to 1440p/50Hz 2 monitors: up to 1152p/60Hz, Specifications / USB-C DisplayPort Alt mode ports (2x DP): Host device with DisplayPort 1.2 support: 1 monitor: up to 4K/30Hz up to 1080p/120Hz 2 monitors: up to 2x 1080p/60Hz* Host device with DisplayPort 1.4 support: 1 monitor: up to 4K/60Hz up to 1440p/144Hz or 1080p/240Hz 2 monitors: up to 2x 1440p/60Hz* Host device with DisplayPort 1.4 with DSC support: 1 monitor: up to 5K/60Hz up to 4K/144Hz or 1440p/240Hz or 1080p/360Hz 2 monitors: up to 2x 4K/60Hz* up to 2x 1440p/144Hz*, Specifications / (Four monitor combination): Up to 2x 2048×1152/60Hz and 2x 4K/60Hz, Specifications / 1x USB-C 3.2 Gen 1 port (5 Gbps) (data only), Specifications / 4x USB-A 3.2 Gen 1 port (5 Gbps), Specifications / 1x USB-A 3.2 Gen 1 port (5 Gbps) with Fast Charge support (BC 1.2), Specifications / 1x Ethernet GLAN RJ-45 port (Realtek RTL8153), Specifications / 1x 3.5mm Audio port, Specifications / 1x 3.5mm Mic port, Specifications / 1x port for power supply (DC 20 V/6.75 A), Specifications / MAC Address cloning: Yes (using i-tec Docker Pro software), Specifications / WOL: S1, S2, S3, Specifications / ON/OFF switch for the docking station, Specifications / LED indication, Specifications / Kensington lock support, Specifications / VESA mount support, Specifications / USB-C cable (100 cm), Specifications / OS: Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux, Specifications / Product dimensions: 197 x 85 x 34 mm, Specifications / Product weight: 296 g, Specifications / Package dimensions: 260 x 215 x 48 mm, Specifications / Package weight: 1167 g, Hardware Requirements: / Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port, Power Delivery Requirements: / Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port with Power Delivery support, Video Output Requirements: / Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or a Thunderbolt™ 3/4/5 port, Operating System: / Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux, Operating System: / * macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image. ** iPadOS, Android do not support multi-screen video transfer technology, nor the extended screen option. This means that when connected to an external monitor, only the mirrored screen will be displayed. (Not valid for androids with DEX and Easy Projection extension), Package contents / Product, Package contents / USB-C cable (100 cm), Package contents / Charging adapter (output: 20 V/6.75 A, 160 cm DC cable), Package contents / Instruction manual
