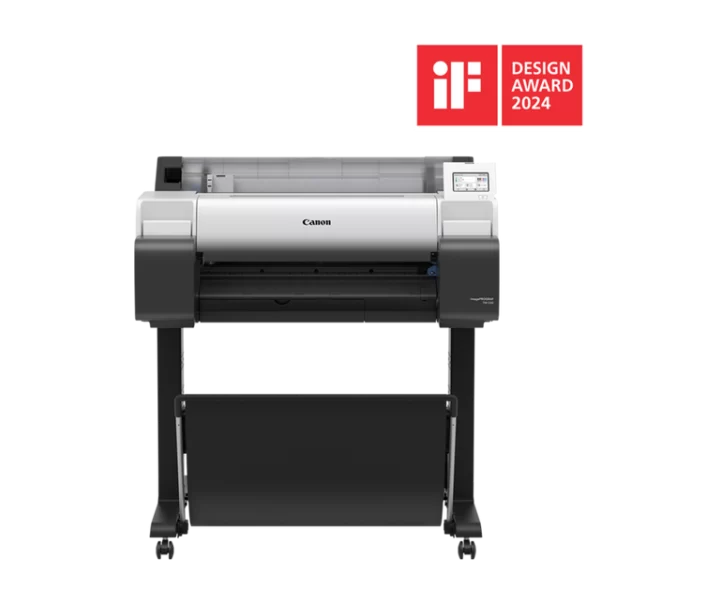

Canon imagePROGRAF TM-240 özellikleri ve fiyatları

Canon imagePROGRAF TM-240 teknik özellikleri

Model kodu

imagePROGRAF TM-240

part Number

6242C003

printing Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

functions

Print (manufacturer product classification: Large Format Printers)

print Resolution

2,400 x 1,200 dpi

print Languages

HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

consumables

Pigment inks: 5 colours MBK/BK/C/M/Y

power Supply Type

AC 100-240V (50-60Hz)

operating Temperature

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

noise Conditions

Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) / (Measured based on ISO7779 standard) / / Standby: 35 dB(A) or less / / Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) / (Measured based on ISO7779 standard)

power Consumption Conditions

Power and Operating Requirements / Power Consumption: Operation: 59W or less / Sleep mode: 2.2W or less / Default setting for the time to enter the Sleep mode: Approx. 5 minutes / Power off: 0.1W or less

color Printing

Var

Boyutlar

W x D x H / Main unit + Stand + Basket (SD-24) / 978 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened) / 978 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed) / 50.9 kg (including Roll Holder Set, excluding ink and print head)

paper Formats

Media Width: Roll paper: 203.2 - 610mm / Cut sheet: 210 - 610mm

Üreticinin ayrıntılı teknik bilgileri

Printer Technology / Printer Type: 5 Colours 24" | Printer Technology / Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head) | Printer Technology / Print Resolution: 2,400 x 1,200 dpi | Printer Technology / Number of Nozzles: Total: 15360 nozzles / MBK: 5120 nozzles / BK, C, M, Y: 2560 nozzles each | Printer Technology / Line Accuracy: ±0.1% or less / User adjustments necessary. Printing environment and media must match those used for the adjustments. | Printer Technology / Nozzle Pitch: 1,200 dpi x 2 lines | Printer Technology / Ink Droplet Size: minimum 5pl per colour | Printer Technology / Ink Capacity: Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y) / Sales Ink: 55ml (MBK, BK, C, M, Y) | Printer Technology / Ink Type: Pigment inks: 5 colours MBK/BK/C/M/Y | Printer Technology / OS Compatibility: 32 Bit: Windows7, Windows 8.1, Windows 10 / 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 / Apple Macintosh: macOS 10.15.7～macOS 13 | Printer Technology / Other Supported Job Submission Protocols: Apple AirPrint | Printer Technology / Printer Languages: HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only) | Printer Technology / Standard Interfaces: USB A Port: N/A / USB B Port: Hi-Speed USB / Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T) /, Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b / / *Please refer to user manual how to activate/deactivate the wireless LAN | Memory / Standard Memory: 2GB / Expansion slot: No | Memory / Hard Drive: N/A | Print Speed / CAD Drawing: Plain Paper (A1): / 0:23 (Fast Economy Mode) / 0:25 (Fast) / 0:51 (Standard) | Print Speed / Poster: Plain Paper (A1) / 0:25 (Fast Economy Mode) / 0:25 (Fast) / 0:49 (Standard) / / Heavy Coated Paper (A1) / 0:56 (Fast) / 1:45 (Standard) | Media Handling / Media Feed and Output: Roll Paper: One Roll, Upper-loading, Front Output / Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever) | Media Handling / Media Width: Roll paper: 203.2 - 610mm / Cut sheet: 210 - 610mm | Media Handling / Media Thickness: Roll/Cut: 0.07mm - 0.8mm | Media Handling / Minimum Printable Length: Roll paper: 203.2mm / Cut sheet: 279.4mm | Media Handling / Maximum Printable Length: Roll paper: 18m (varies according to the OS and application) / Cut sheet: 1.6m | Media Handling / Maximum Media Roll Diameter: 150mm | Media Handling / Media Core Size: Internal diameter of roll core: 2"/3" (Optional) | Media Handling / Margins Recommended Area: Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm / Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm / Cut sheet (Others): Top: 20mm, Bottom: 20mm, Side: 3mm | Media Handling / Margins Printable Area: Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm / Roll, paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm / Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm / Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm | Media Handling / Media Feed Capacity: Roll Paper: One roll / Cut Sheet: 1 sheet | Media Handling / Borderless Printing Width (Roll Only): [Recommended]515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24" / [Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm / Other than above, free size borderless printing is supported on only roll paper by user definition | Media Handling / Maximum Number of Delivered Prints: Standard position - 1 sheet | Power and Operating Requirements / Power Supply: AC 100-240V (50-60Hz) | Power and Operating Requirements / Power Consumption: Operation: 59W or less / Sleep mode: 2.2W or less / Default setting for the time to enter the Sleep mode: Approx. 5 minutes / Power off: 0.1W or less | Power and Operating Requirements / Operating Environment: Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation) | Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) / (Measured based on ISO7779 standard) / / Standby: 35 dB(A) or less / / Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) / (Measured based on, ISO7779 standard) | Power and Operating Requirements / Regulations: CE mark, UKCA mark | Power and Operating Requirements / Environment Certificates: CB certfication, EPEAT GOLD | Dimensions and Weight / Physical Dimensions and Weight: W x D x H / Main unit + Stand + Basket (SD-24) / 978 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened) / 978 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed) / 50.9 kg (including Roll Holder Set, excluding ink and print head) | Dimensions and Weight / Packaged Dimensions and Weight: Printer (Main unit with pallet): 1152 x 912 x 679 mm, 71kg / Stand + Basket (SD-24): 1058 x 826 x 270 mm, 20kg | What's Included / What's in the Box?: Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, 1 Roll holder (spool), Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Notice for PosterArtist WEB | What's Included / Software Included: Software available as Download from Web | Options / Optional Items: Stand Basket (Simple Basket): SD-24 / 2"/3" Roll Holder: RH2-28 / IC Card Reader Holder: RA-02 | Consumables / User Replaceable Items: Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y: PFI-030(55ml) / Print Head: PF-06 / Cutter Blade: CT-08 / Maintenance Cartridge: MC-31 | Manufacturer technical note / footnote-1: EPEAT Gold registered in the U.S.
