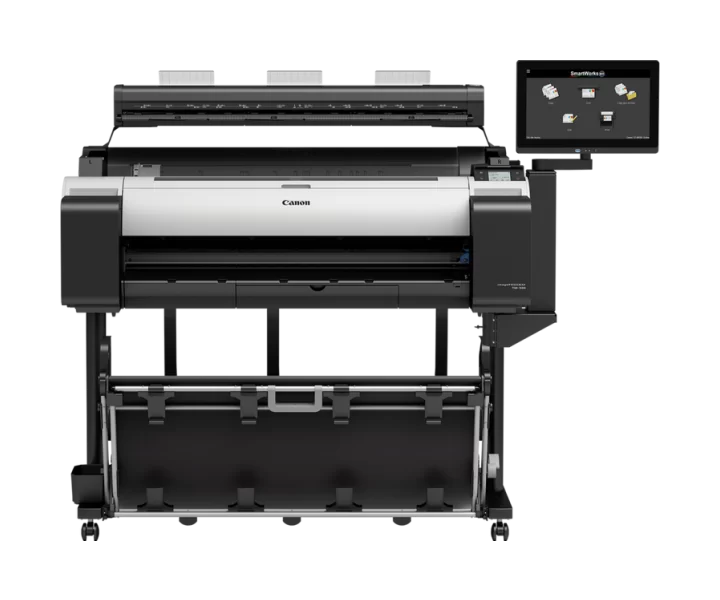

Canon imagePROGRAF TM-300 MFP Z36 özellikleri ve fiyatları

Canon imagePROGRAF TM-300 MFP Z36 teknik özellikleri

Model kodu

imagePROGRAF TM-300 MFP Z36

printing Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

functions

Print, Scan, Copy (manufacturer paired printer technology, scan technology and Copy operation specifications)

print Resolution

2,400 x 1,200 dpi

print Languages

SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)

consumables

Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow

power Supply Type

AC 100-240V (50-60Hz)

operating Temperature

Temperature: 15~30℃, / Humidity: 10~80% RH (no dew condensation)

scan Speed Conditions

Scanner Technology / Scan Speed 8-bit Grayscale & Mono @200dpi: 13ips | Scanner Technology / Scan to PC: Scan Speed 24-bit Color @200dpi: 3ips | Scanner Technology / Copy: Scan Speed 24-bit Color @200dpi: 6ips

noise Conditions

Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: 44 dB (A) (Plain paper, line drawing, standard mode) / Standby: 35 dB (A) or less / Operation: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard)

power Consumption Conditions

Power and Operating Requirements / Power Consumption: Operation: 69 W or less / Sleep mode: 3.6 W or less / Default setting for the time to enter the Sleep mode: Approx. 5 Minutes / Power off: 0.3 W or less

color Printing

Var

Boyutlar

Main Unit, Stand and Basket / 1289 x 887 x 1060 mm (Basket Open) / 1289 x 757 x 1060 mm (Basket Closed) / 60 kg (including Roll Holder Set, excluding ink and print head)

paper Formats

Media Width: Roll paper: 203.2 -917 mm / Cut sheet: 203.2 - 917 mm

Üreticinin ayrıntılı teknik bilgileri

Scanner Technology / Scan Technology: SingleSensor | Scanner Technology / Maximum Resolution (dpi): 1200dpi | Scanner Technology / Paper Path: Flat | Scanner Technology / Maximum Scan Width: 36" (914mm) | Scanner Technology / Minimum Scan Width: 6" (150mm) | Scanner Technology / Maximum Document Width: 38" (965mm) | Scanner Technology / Maximum Scan Length: 8m (JPEG/PDF), 15.2m (TIFF) | Scanner Technology / Weight of Scanner: 7.8Kg | Scanner Technology / Dimensions (W x D x L): 1056 x 199 x 118mm / 1056 x 251 x 156mm with Doc return guide | Scanner Technology / Compliances: Europe: CE mark, Other Countries : CB certfication | Scanner Technology / Front/Rear Exit: Rear (front eject via Document Return Guide) | Scanner Technology / Document Handling - Face Up/Down: Up | Scanner Technology / Document Thickness: 0.07 – 1.0mm | Scanner Technology / Scan Speed 8-bit Grayscale & Mono @200dpi: 13ips | Scanner Technology / Scan to PC: Scan Speed 24-bit Color @200dpi: 3ips | Scanner Technology / Copy: Scan Speed 24-bit Color @200dpi: 6ips | Scanner Technology / Interface USB: 3.0 (backward compatible to USB2) | Scanner Technology / Scanner Controls: Stop, Advance, Rewind, LED status | Scanner Technology / Branding/Colour: None / Canon black | Scanner Technology / Software Included: SmartWorks MFP V6 | Scanner Technology / What's in the Box?: Z36 scanner / Suspension mount for printer and system controller mount / 2 paper edge guides / 3, Document return guides / Calibration target / Assembly & Start Up Guide / USB3 cable (2 meter) / Power Supply / 15.6" system controller / 3:1 Trident power cord - requires 1 local mains cable (not included). | Scanner Technology / System Controller: Windows 10 Enterprise LTSC 64 bit. CPU: Intel Pentium G5400T. SSD: 256GB, / RAM: 8GB DDR4. / Display: Multi touch 15.6”, 1366 x 768. 3 x USB3 & 1 x USB2, 1 x GbE (rear). Power / button and 1 x USB3 (Front). | Printer Technology / Printer Type: 5 Colour 36"/914mm | Printer Technology / Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head) | Printer Technology / Print Resolution: 2,400 x 1,200 dpi | Printer Technology / Number of Nozzles: 15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each) | Printer Technology / Line Accuracy: ±0.1% or less / User adjustments necessary. Printing environment and media must match those used for the adjustments. / CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only | Printer Technology / Nozzle Pitch: 1,200 dpi (2 lines) | Printer Technology / Ink Droplet Size: minimum 5 pl per colour | Printer Technology / Ink Capacity: Sales Ink: 130ml/300ml / Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow) | Printer Technology / Ink Type: Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow, Printer Technology / OS Compatibility: Microsoft Windows 32 Bit: Windows 7, 8.1, 10, / 64 Bit: Windows 7, 8.1, 10, Server 2008R2, Server 2012/2012R2, Server 2016 / Apple Macintosh: OS X 10.10.5 ~ OS X 10.11, macOS 10.13 | Printer Technology / Printer Languages: SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02) | Printer Technology / Standard Interfaces: USB B Port: Built-in Hi-Speed USB / Ethernet: IEEE 802.3 10-base-T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex / Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b / *Please refer to user manual how to activate/deactivate the wireless LAN | Memory / Standard Memory: 2 GB | Print Speed / CAD Drawing: Plain Paper (A0 page size): / 0:40 (Fast Economy Mode) / 0:46 (Fast) / 1:14 (Standard) | Print Speed / Poster: Plain Paper (A0 page size): / 0:44 (Fast) / 1:18 (Standard) / / Coated Paper (A0 page size): / 1:41 (Fast) / 2:36 (Standard) | Media Handling / Media Feed and Output: Roll paper: One Roll, Upper-loading, Front Output / Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever) | Media Handling / Media Width: Roll paper: 203.2 -917 mm / Cut sheet: 203.2 - 917 mm | Media Handling / Media Thickness: Roll/Cut: 0.07 - 0.8 mm | Media Handling / Minimum Printable Length: Roll paper: 203.2 mm / Cut sheet: 279.4 mm | Media Handling / Maximum Printable Length: Roll paper: 18 m (Varies according to the OS and, application) / Cut sheet: 1.6 m | Media Handling / Maximum Media Roll Diameter: 150 mm | Media Handling / Media Core Size: Internal diameter of roll core: 2"/3" | Media Handling / Margins Recommended Area: Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm / Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm | Media Handling / Margins Printable Area: Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm / Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm / Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm / Cut sheet for thers: Top: 3 mm, Bottom: 20 mm, Side: 3 mm | Media Handling / Media Feed Capacity: Manually switchable by user | Media Handling / Borderless Printing Width (Roll Only): 515mm(JIS B2), 728mm(BIS B1), 594mm(ISO A1), 841mm(ISO A0),10",14",17",24",36" / [Printable]257mm(JIS B4),297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2),8", 12", / 16", 20", 30", 300mm, 500mm, 600mm, 800mm | Media Handling / Maximum Number of Delivered Prints: Stand/Basket - Standard position: 1 sheet / Stand/Basket - Flat position: 20 sheets on A1, A2 landscape (excludes strong curled condition) | Power and Operating Requirements / Power Supply: AC 100-240V (50-60Hz) | Power and Operating Requirements / Power Consumption: Operation: 69 W or less / Sleep mode: 3.6 W or less / Default setting for the time to enter the Sleep mode: Approx. 5 Minutes / Power off: 0.3 W or less, Power and Operating Requirements / Operating Environment: Temperature: 15~30℃, / Humidity: 10~80% RH (no dew condensation) | Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: 44 dB (A) (Plain paper, line drawing, standard mode) / Standby: 35 dB (A) or less / Operation: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard) | Power and Operating Requirements / Regulations: Europe: CE mark, Russia: EAC | Power and Operating Requirements / Environment Certificates: TUV, CB | Dimensions and Weight / Physical Dimensions and Weight: Main Unit, Stand and Basket / 1289 x 887 x 1060 mm (Basket Open) / 1289 x 757 x 1060 mm (Basket Closed) / 60 kg (including Roll Holder Set, excluding ink and print head) | Dimensions and Weight / Packaged Dimensions and Weight: Printer (Main unit with stand (SD-32) and pallet): 1462 x 913 x 961 mm, 105 kg | What's Included / What's in the Box?: Printer, printer stand: SD-32, 1 x print head, 3-inch paper core attachment, Power Cable, / UK Power cord (240V,3P), 1 set of starter ink tanks, Set up guide, Safety/Standard / Environment leaflet User software CD-ROM (Win) / PosterArtist Lite CD-ROM, EU Biocide Sheet, Eurasian Economic Union Sheet, / Important Information Sheet | What's Included / Software Included: imagePROGRAF TM-Series Printer Driver, Print Plug-In for Office, Quick Utility Toolbox / and PosterArtist Lite / Other software available as, Download from Web. | What's Included / LCD Flat Panel - PC Included: LCD Type: All in One: 15.6" TFT Display, Multi-touch / PC (included): System: Windows 10 Enterprise LTSB, CPU: Intel / Celeron G3900 2.3GHz, RAM: 4GB DDR4, HDD: SATA 500GB, 3 x / USB3 & 1 USB2 & 1 x GbE (rear), 1 x USB3 (Front) | What's Included / LCD Flat Panel - PC Excluded: LCD Type: 15.6" Flat Panel Touch-Screen Display | Options / Optional Items: 2/3" Roll Holder: RH2-35 | Consumables / User Replaceable Items: Ink Tank: PFI-120 (130ml), PFI-320 (300ml) / Print Head: PF-06 / Cutter Blade: CT-08 / Maintenance Cartridge: MC-31 | Manufacturer technical note / footnote-1: Thicker documents must be flexible and the paper return guides removed and may require additional support. Some media should be scanned at reduced speeds. It is not possible to guarantee to be able to scan all media types and sizes. | Manufacturer technical note / footnote-2: The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times and quoted top speeds will depend on the host performance and are not guaranteed for all media types. Scan times quoted are the maximum for true 200 x 200dpi image capture.Max scan speed for RGB: Copying at 200/300/600dpi = 6/4/2ips. Scanning at 200/300/600dpi = 3/2/2ips.Max scan speed for B&W: Copying at 200/300/600dpi = 13/8.6/4.3ips. Scanning at 200/300/600dpi = 13/8.6/4.3ips., Manufacturer technical note / footnote-5: Please check your local supplier, some LCD options may not be available in your country.
