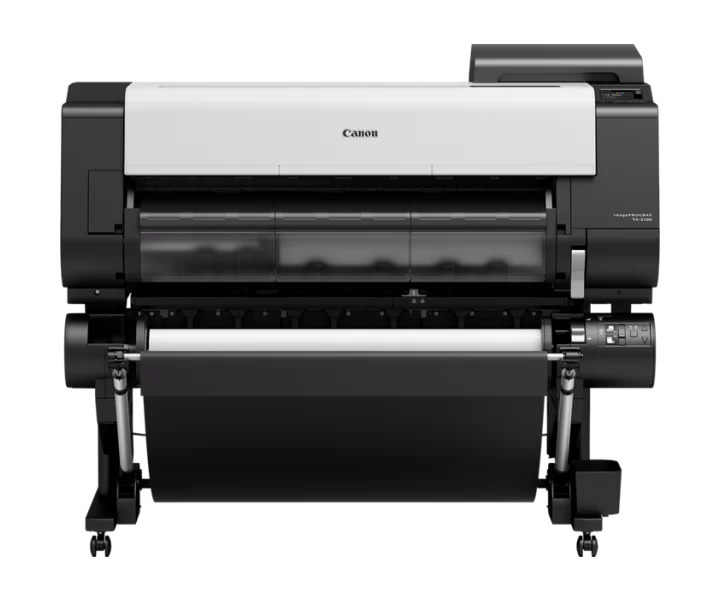

Canon imagePROGRAF TX-3100 özellikleri ve fiyatları

Canon imagePROGRAF TX-3100 teknik özellikleri

Model kodu

imagePROGRAF TX-3100

part Number

4600C003AA

printing Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

functions

Print (manufacturer product classification: Large Format Printers)

print Resolution

2,400 x 1,200 dpi

print Languages

HP-GL/2, HP RTL, PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)

consumables

Pigment inks : 5 colour MBK/BK/C/M/Y

power Supply Type

AC 100-240V (50-60Hz)

operating Temperature

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

noise Conditions

Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: 51 dB (A) (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard) / Standby: 35 dB (A) or less / Operation: 6.9 Bels or less (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard)

power Consumption Conditions

Power and Operating Requirements / Power Consumption: Operation: 115 W or less / Sleep mode: 2.1 W or less / Default setting for the time to enter the Sleep mode: Approx. 5 Minutes / Power off: 0.3 W or less

color Printing

Var

Boyutlar

W x D x H / 1390 x 984 x 1168 mm (Basket Open) / 1390 x 766 x 1168 mm (Basket Closed) / 105 kg (including Roll Holder Set and Roll unit, excluding ink and print heads)

paper Formats

Media Width: Roll paper : 152.4mm - 917mm / Cut sheet 152.4mm - 917mm

Üreticinin ayrıntılı teknik bilgileri

Printer Technology / Printer Type: 5 Colour 36" | Printer Technology / Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head) | Printer Technology / Print Resolution: 2,400 x 1,200 dpi | Printer Technology / Number of Nozzles: Total : 15,360 nozzles MBK : 5,120 nozzles BK, C, M, Y : 2,560 nozzles each | Printer Technology / Line Accuracy: ±0.1% or less / User adjustments necessary. Printing environment and media must match those used for the adjustments. / CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only | Printer Technology / Nozzle Pitch: 1,200 dpi x 2 includes Non-firing nozzle detection and compensation system | Printer Technology / Ink Droplet Size: minimum 5 pl per colour | Printer Technology / Ink Capacity: Bundled Starter Ink: 330ml (MBK)/160ml (BK, C, M, Y) / Sales Ink: 160ml/330ml/700ml | Printer Technology / Ink Type: Pigment inks : 5 colour MBK/BK/C/M/Y | Printer Technology / OS Compatibility: Microsoft Windows 32 Bit: 7, 8.1, 10 / 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019 / Apple Macintosh: macOS 10.12.6～macOS 10.15 | Printer Technology / Printer Languages: HP-GL/2, HP RTL, PDF (Ver.1.7), JPEG (Ver. JFIF 1.02) | Printer Technology / Standard Interfaces: USB A Port: USB Memory Direct Print for JPEG/PDF files / USB B Port: Built-in Hi-Speed USB / Ethernet:, 10/100/1000 base-T / Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b / *Please refer to user manual how to activate/deactivate the wireless LAN | Memory / Standard Memory: 128GB (Physical memory 2GB) / Expansion slot : No | Memory / Hard Drive: 500GB (Encrypted) | Print Speed / CAD Drawing: Plain Paper (A1): / 0:18 (Fast Economy Mode), 3.2ppm / / Plain Paper (A0): / 0:34 (Fast Economy Mode) / 0:37 (Fast) / 1:04 (Standard) | Print Speed / Poster: Plain Paper (A0): / 0:37 (Fast Economy Mode) / 0:42 (Fast) / 1:15 (Standard) / / Heavy coated Paper (A0): / 1:38 (Fast) / 2:33 (Standard) | Media Handling / Media Feed and Output: Roll Paper : One Roll, Front-loading, Front Output / Cut Sheet : Front-loading, Front Output (Manual feed using media locking lever) | Media Handling / Media Width: Roll paper : 152.4mm - 917mm / Cut sheet 152.4mm - 917mm | Media Handling / Media Thickness: Roll/Cut : 0.07mm - 0.8mm | Media Handling / Minimum Printable Length: Roll paper : 101.6mm (Excluding Cloth, Canvas, Tracing Paper and Translucent Matte Film media. These media are 200mm.) / Cut sheet : 203.2 mm | Media Handling / Maximum Printable Length: Roll paper : 18 m (Varies according to the OS and application) / Cut sheet : 1.6 m | Media Handling / Maximum Media Roll Diameter: 170 mm | Media Handling / Media Core Size: Internal diameter of roll core: 2"/3" | Media Handling / Margins Recommended Area: Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3, mm / Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm | Media Handling / Margins Printable Area: Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm / Roll paper (borderless) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm / Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm | Media Handling / Media Feed Capacity: Roll Paper: Two rolls. Automatic switching is possible. / Cut Sheet: 1 sheet | Media Handling / Media Take-Up Roll Unit: Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll | Media Handling / Borderless Printing Width (Roll Only): [Recommended] 515mm(JIS B2), 594mm(ISO A1), 728mm(JIS B1), 841mm(ISO A0), 10", 14", 17", 24", 36" / [Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 6", 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm and custom roll width (152.4 - 917mm) / *"Printable" size is printed as micro marzin tecnology, that means is not used with hole of platen. | Media Handling / Maximum Number of Delivered Prints: [Multi-position basket] / Standard position: 1 sheet / Flat position: A2 landscape, glossy paper 10 sheets, Coated paper 20 sheets, Plain paper 20 sheets (excludes strong curled condition) / [Stacker] / Basket position : 1 sheet (excludes curled condition) / Folding position : A0/A1 portrait, CAD drawing, Plain paper 20 sheets, Uncoated paper 100 sheets (excludes curled condition) / Stacking position : A1/A2 landscape, CAD, drawing, Plain paper 100 sheets, Uncoated paper 100 sheets (excludes curled condition) | Power and Operating Requirements / Power Supply: AC 100-240V (50-60Hz) | Power and Operating Requirements / Power Consumption: Operation: 115 W or less / Sleep mode: 2.1 W or less / Default setting for the time to enter the Sleep mode: Approx. 5 Minutes / Power off: 0.3 W or less | Power and Operating Requirements / Operating Environment: Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation) | Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: 51 dB (A) (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard) / Standby: 35 dB (A) or less / Operation: 6.9 Bels or less (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard) | Power and Operating Requirements / Regulations: Europe: CE mark, / Other countries: CB certification | Power and Operating Requirements / Environment Certificates: TUV, CB | Dimensions and Weight / Physical Dimensions and Weight: W x D x H / 1390 x 984 x 1168 mm (Basket Open) / 1390 x 766 x 1168 mm (Basket Closed) / 105 kg (including Roll Holder Set and Roll unit, excluding ink and print heads) | Dimensions and Weight / Packaged Dimensions and Weight: Printer (Main unit with pallet): 1606 x 903 x 1061 mm / 149 kg / Roll Unit: 1524 x 562 x 461 mm / 26 kg | What's Included / What's in the Box?: Printer, 1 x Print Head, 1 x Roll, holder (spool), 3” Paper Core Attachment, 1 Set of Starter Ink Tanks, Set Up Guide, Safety/Standard, Environment Leaflet / User software CD-ROM (Windows), PosterArtist Lite CD-ROM / EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet | What's Included / Software Included: imagePROGRAF TX Printer Driver and PosterArtist Lite / Other software available as Download from Web. | Options / Optional Items: 2/3" Roll Holder: RH2-34 / Roll Unit : RU-32 / Stacker : SS-31 | Consumables / User Replaceable Items: Ink Tank: PFl-110 (160ml), PFl-310 (330ml), PFl-710 (700ml) / Print Head: PF-06 / Cutter Blade: CT-07 / Maintenance Cartridge: MC-30
