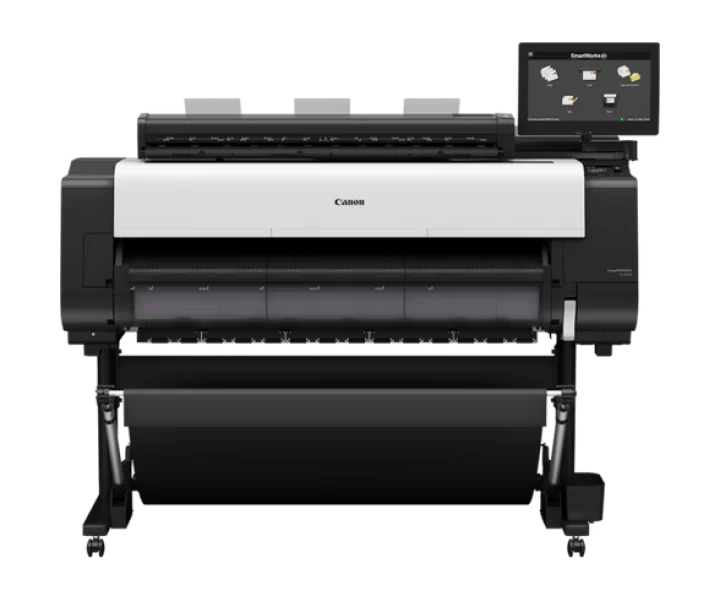

Canon imagePROGRAF TX-4200 MFP Z36 özellikleri ve fiyatları

Canon imagePROGRAF TX-4200 MFP Z36 teknik özellikleri

Model kodu

imagePROGRAF TX-4200 MFP Z36

part Number

4513V535

printing Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

functions

Print, Scan, Copy (manufacturer paired printer technology, scan technology and Copy operation specifications)

print Resolution

2,400 x 1,200 dpi

print Languages

HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

consumables

Pigment inks: 5 colours MBK/BK/C/M/Y

power Supply Type

AC 100-240V (50-60Hz)

operating Temperature

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

scan Speed Conditions

Scanner Technology / Scan Speed 8-bit Grayscale & Mono @200dpi: 13 ips | Scanner Technology / Scan to PC: Scan Speed 24-bit Color @200dpi: 3 ips | Scanner Technology / Copy: Scan Speed 24-bit Color @200dpi: 6 ips

noise Conditions

Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: Approx. 51dB(A) (Standard Plain Paper 2, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard) / Standby: 35 dB(A) or less / Operation: 6.9 Bels or less (Standard Plain Paper 2, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)

power Consumption Conditions

Power and Operating Requirements / Power Consumption: Operation: 87W or less / Sleep mode: 2.1W or less / Default setting for the time to enter the Sleep mode: Approx. 5 minutes / Power off: 0.1W or less

color Printing

Var

Boyutlar

W x D x H / Main unit with stand / 1593 x 984 x 1168 mm (Basket Opened) / 1593 x 766 x 1168 mm (Basket Closed) / 112 kg (including Roll Holder Set, excluding ink and print head)

paper Formats

Media Width: Roll paper: 152.4mm - 1118mm / Cut sheet: 152.4mm - 1118mm

Üreticinin ayrıntılı teknik bilgileri

Scanner Technology / Scan Technology: Single Sensor | Scanner Technology / Maximum Resolution (dpi): 1200 dpi | Scanner Technology / Paper Path: Flat | Scanner Technology / Maximum Scan Width: 36" (914mm) | Scanner Technology / Minimum Scan Width: 6" (150mm) | Scanner Technology / Maximum Document Width: 38" (965mm) | Scanner Technology / Maximum Scan Length: 8m (JPEG/PDF), 15.2m (TIFF) | Scanner Technology / Document Thickness: 0.07-1.0mm | Scanner Technology / Interface USB: 3.0 (backward compatible to USB2) | Scanner Technology / Weight of Scanner: 7.8kg | Scanner Technology / Dimensions (W x D x L): 1056 x 199 x 118mm / 1056 x 251 x 156mm with Doc return guide | Scanner Technology / Compliances: Europe: CE mark / Other countries: CB Certification | Scanner Technology / Front/Rear Exit: Rear (front eject via Document Return Guide) | Scanner Technology / Document Handling - Face Up/Down: Up | Scanner Technology / Scan Speed 8-bit Grayscale & Mono @200dpi: 13 ips | Scanner Technology / Scan to PC: Scan Speed 24-bit Color @200dpi: 3 ips | Scanner Technology / Copy: Scan Speed 24-bit Color @200dpi: 6 ips | Scanner Technology / Scanner Controls: Stop, Advance, Rewind, LED status | Scanner Technology / Branding/Colour: None / Canon black | Scanner Technology / Software Included: SmartWorks MFP V6 | Scanner Technology / What's in the Box?: Z36 scanner / Suspension mount for printer and system controller mount / 2 paper edge guides, / 3 Document return guides / Calibration target / Assembly & Start Up Guide / USB3 cable (2 meter) / Power Supply / 15.6” system controller / 3:1 Trident power cord - requires 1 local mains cable (not included) | Scanner Technology / System Controller: SSD: 256GB, RAM: 8GB DDR4. / Display: Multi touch 15.6”, 1366 x 768. 3 x USB3 & 1 x USB2, / 1 x GbE (rear). Power button and 1 x USB3 (Front) | Printer Technology / Printer Type: 5 Colours 44" | Printer Technology / Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head) | Printer Technology / Print Resolution: 2,400 x 1,200 dpi | Printer Technology / Number of Nozzles: Total: 15360 nozzles MBK: 5120 nozzles BK, C, M, Y: 2560 nozzles each | Printer Technology / Line Accuracy: ±0.1% or less / User adjustments necessary. Printing environment and media must match those used for the adjustments. | Printer Technology / Nozzle Pitch: 1,200 dpi x 2 lines | Printer Technology / Ink Droplet Size: minimum 5pl per colour | Printer Technology / Ink Capacity: Bundled Starter Ink: 1650ml (330ml for each colour) / Sales Ink: 160ml / 330ml / 700ml | Printer Technology / Ink Type: Pigment inks: 5 colours MBK/BK/C/M/Y | Printer Technology / OS Compatibility: 32 Bit: Windows7, Windows 8.1, Windows 10 / 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 / Apple Macintosh: macOS, 11.7.10～macOS 14.x | Printer Technology / Other Supported Job Submission Protocols: Apple AirPrint | Printer Technology / Printer Languages: HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only) | Printer Technology / Standard Interfaces: USB A Port: USB Memory (Direct Print) / USB B Port: Hi-Speed USB / Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T), IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP) / Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b / / *Please refer to user manual how to activate/deactivate the wireless LAN | Memory / Standard Memory: 128GB (Physical memory 2GB) / Expansion slot: No | Memory / Hard Drive: 500GB(Encrypted) | Print Speed / CAD Drawing: Plain Paper (A1) / 0:17 (Fast Economy Mode), 3.3ppm / / Plain Paper (A0) / 0:33 (Fast Economy Mode) / 0:35 (Fast) / 1:06 (Standard) | Media Handling / Media Feed and Output: Roll Paper: One Roll, Front-loading, Front Output / Added Roll Paper: One Roll, Front-loading, Front Output / Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever) | Media Handling / Media Width: Roll paper: 152.4mm - 1118mm / Cut sheet: 152.4mm - 1118mm | Media Handling / Media Thickness: Roll/Cut: 0.07mm - 0.8mm | Media Handling / Minimum Printable Length: Roll paper: 101.6mm (excluding cloth, tracing paper and translucent matte film media These media are 200mm) / Cut sheet: 203.2mm, Media Handling / Maximum Printable Length: Roll paper: 18m (varies according to the OS and application) / Cut sheet: 1.6m | Media Handling / Maximum Media Roll Diameter: 170mm | Media Handling / Media Core Size: Internal diameter of roll core: 2"/3" | Media Handling / Margins Recommended Area: Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm / Cut sheet: Top: 20mm, Bottom: 20mm, Side: 3mm / Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm | Media Handling / Margins Printable Area: Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm / Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm / Cut sheet: Top: 3mm, Bottom: 20mm, Side: 3mm / Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm | Media Handling / Media Feed Capacity: Roll Paper: Two rolls. Automatic switching is possible. / Roll Paper, Cut Sheet: Manual switching is possible / Cut Sheet: 1 sheet | Media Handling / Media Take-Up Roll Unit: Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll | Media Handling / Borderless Printing Width (Roll Only): [Recommended] 515mm (JIS B2), 728mm (JIS B1), 1030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36", 42", 44" / [Printable] 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 364mm (JISB3), 420mm (ISO A2), 707mm (ISO B1), 6", 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm, 1000mm and custom roll width (152.4 - 1118mm) /, ("Printable" size is printed as micro margin technology, that means is not used with hole of platen) | Media Handling / Maximum Number of Delivered Prints: [Multi-position basket] / Standard position: 1 sheet / Flat position: A2 landscape, glossy paper 10 sheets, coated paper 20 sheets, uncoated paper 20 sheets (excludes strong curled condition) / / [Stacker] / Basket position: 1 sheet (excludes curled condition) / Folding position: A0/A1 portrait, CAD drawing, uncoated paper 90gsm 20 sheets, uncoated paper 100 sheets (excludes curled condition) / Flatbed position: A1/A2 landscape, CAD drawing, uncoated paper 90gsm 20 sheets, uncoated paper 100 sheets (excludes curled condition) | Power and Operating Requirements / Power Supply: AC 100-240V (50-60Hz) | Power and Operating Requirements / Power Consumption: Operation: 87W or less / Sleep mode: 2.1W or less / Default setting for the time to enter the Sleep mode: Approx. 5 minutes / Power off: 0.1W or less | Power and Operating Requirements / Operating Environment: Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation) | Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: Approx. 51dB(A) (Standard Plain Paper 2, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard) / Standby: 35 dB(A) or less / Operation: 6.9 Bels or less (Standard Plain Paper 2, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard), Power and Operating Requirements / Regulations: CE mark, UKCA mark | Power and Operating Requirements / Environment Certificates: CB certfication, EPEAT GOLD | Dimensions and Weight / Physical Dimensions and Weight: W x D x H / Main unit with stand / 1593 x 984 x 1168 mm (Basket Opened) / 1593 x 766 x 1168 mm (Basket Closed) / 112 kg (including Roll Holder Set, excluding ink and print head) | Dimensions and Weight / Packaged Dimensions and Weight: Printer (Main unit with pallet): 1820 x 915 x 1042 mm, 168kg / Roll unit: 1727 x 562 x 461 mm, 34kg | What's Included / What's in the Box?: Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, 1 Roll holder (spool), 3” Paper Core Attachment, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Printer Stand Setup Guide, Notice for PosterArtist WEB | What's Included / Software Included: Software available as Download from Web | Options / Optional Items: 2"/3" Roll Holder: RH2-46 / Roll Unit: RU-42 / Stacker: SS-41 / IC card reader holder: RA-01 | Consumables / User Replaceable Items: Ink Tank: M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml) / MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml) / Print Head: PF-06 / Cutter Blade: CT-07 / Maintenance Cartridge: MC-30 | Manufacturer technical note / footnote-1: EPEAT Gold registered in the U.S.
