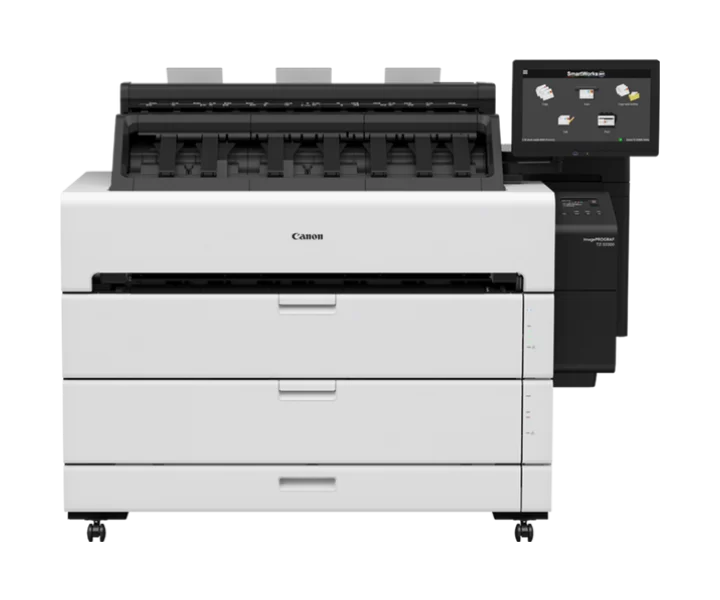

Canon imagePROGRAF TZ-32000 MFP Z36 özellikleri ve fiyatları

Canon imagePROGRAF TZ-32000 MFP Z36 teknik özellikleri

Model kodu

imagePROGRAF TZ-32000 MFP Z36

part Number

4513V531

printing Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

functions

Print, Scan, Copy (manufacturer paired printer technology, scan technology and Copy operation specifications)

print Resolution

2,400 x 1,200 dpi

print Languages

HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

consumables

Pigment inks : 5 colours MBK/BK/C/M/Y

power Supply Type

AC 100-240V (50-60Hz)

operating Temperature

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

scan Speed Conditions

Scanner Technology / Scan Speed 8-bit Grayscale & Mono @200dpi: 13 ips | Scanner Technology / Scan to PC: Scan Speed 24-bit Color @200dpi: 3 ips | Scanner Technology / Copy: Scan Speed 24-bit Color @200dpi: 6 ips

noise Conditions

Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: Approx. 52dB(A) (Standard Plain Paper 2, Standard mode, Line Drawing) (Measured based on ISO7779 standard) / Standby: 35 dB(A) or less / Operation: 7.0 Bels or less (Standard Plain Paper 2, Standard mode, Line Drawing) (Measured based on ISO7779 standard)

power Consumption Conditions

Power and Operating Requirements / Power Consumption: Operation: 111W or less / Sleep mode: 2.1W or less / Default setting for the time to enter the Sleep mode: Approx. 5 minutes / Power off: 0.1W or less

color Printing

Var

Boyutlar

W x D x H / Main Unit with stand / 1548 x 1293 x 1189 mm (Basket Opened) / 1548 x 960 x 1189 mm (Basket Closed) / 206 kg

paper Formats

Media Width: Roll paper: 203.2mm - 917mm / Cut sheet: 203.2mm- 917mm

Üreticinin ayrıntılı teknik bilgileri

Scanner Technology / Scan Technology: Single Sensor | Scanner Technology / Maximum Resolution (dpi): 1200 dpi | Scanner Technology / Paper Path: Flat | Scanner Technology / Maximum Scan Width: 36" (914mm) | Scanner Technology / Minimum Scan Width: 6" (150mm) | Scanner Technology / Maximum Document Width: 38" (965mm) | Scanner Technology / Maximum Scan Length: 8m (JPEG/PDF), 15.2m (TIFF) | Scanner Technology / Document Thickness: 0.07-1.0mm | Scanner Technology / Interface USB: 3.0 (backward compatible to USB2) | Scanner Technology / Weight of Scanner: 7.8kg | Scanner Technology / Dimensions (W x D x L): 1056 x 199 x 118mm / 1056 x 251 x 156mm with Doc return guide | Scanner Technology / Compliances: Europe : CE mark / Other countries : CB Certification | Scanner Technology / Front/Rear Exit: Rear (front eject via Document Return Guide) | Scanner Technology / Document Handling - Face Up/Down: Up | Scanner Technology / Scan Speed 8-bit Grayscale & Mono @200dpi: 13 ips | Scanner Technology / Scan to PC: Scan Speed 24-bit Color @200dpi: 3 ips | Scanner Technology / Copy: Scan Speed 24-bit Color @200dpi: 6 ips | Scanner Technology / Scanner Controls: Stop, Advance, Rewind, LED status | Scanner Technology / Branding/Colour: None / Canon black | Scanner Technology / Software Included: SmartWorks MFP V6 | Scanner Technology / What's in the Box?: Z36 scanner / Suspension mount for printer and system controller mount / 2 paper edge, guides / 3 Document return guides / Calibration target / Assembly & Start Up Guide / USB3 cable (2 meter) / Power Supply / 15.6” system controller / 3:1 Trident power cord - requires 1 local mains cable (not included) | Scanner Technology / System Controller: SSD: 256GB, RAM: 8GB DDR4. / Display: Multi touch 15.6”, 3 x USB3 & 1 x USB2, 1 x GbE (rear). Power button and 1 x USB3 (Front) | Printer Technology / Printer Type: 5 Colours 36" | Printer Technology / Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head) | Printer Technology / Print Resolution: 2,400 x 1,200 dpi | Printer Technology / Number of Nozzles: Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each | Printer Technology / Line Accuracy: ±0.1% or less / User adjustments necessary. Printing environment and media must match those used for the adjustments. | Printer Technology / Nozzle Pitch: 1,200 dpi x 2 lines | Printer Technology / Ink Droplet Size: minimum 5pl per colour | Printer Technology / Ink Capacity: Bundled Starter Ink: 970ml (330ml for MBK, 160ml for others) / Sales Ink: 330ml / 700ml | Printer Technology / Ink Type: Pigment inks : 5 colours MBK/BK/C/M/Y | Printer Technology / OS Compatibility: 32 Bit: Windows7, Windows 8.1, Windows 10 / 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 / Apple Macintosh: macOS, 11.7.10～macOS 14.x | Printer Technology / Other Supported Job Submission Protocols: Apple AirPrint | Printer Technology / Printer Languages: HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only) | Printer Technology / Standard Interfaces: USB A Port:USB Memory (Direct Print) / USB B Port: Hi-Speed USB / Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T), IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP) / Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b / / *Please refer to user manual how to activate/deactivate the wireless LAN | Memory / Standard Memory: 128GB (Physical memory 2GB) / Expansion slot : No | Memory / Hard Drive: 500GB(Encrypted) | Print Speed / CAD Drawing: Uncoated Paper (A1) / 0:14 (Fast Economy Mode): 4.0ppm / Uncoated Paper (A0) / 0:26 (Fast Economy Mode) / 0:35 (Fast) / 1:06 (Standard) | Print Speed / Poster: Uncoated Paper (A0) / 0:41 (Fast) / 1:15 (Standard) / Coated Paper (A0) / 1:25 (Fast) / 2:34 (Standard) | Media Handling / Media Feed and Output: Roll Paper : Two rolls, Front-loading, Front Output/Upper Output / Cut Sheet : Front-loading, Front Output (Manual feed using media locking lever) | Media Handling / Media Width: Roll paper: 203.2mm - 917mm / Cut sheet: 203.2mm- 917mm | Media Handling / Media Thickness: Roll/Cut : 0.07mm - 0.8mm | Media Handling / Minimum Printable Length: Roll paper : 203.2mm (Front output), 205mm (Upper output) / Cut, sheet: 203.2mm | Media Handling / Maximum Printable Length: Roll paper : 18m (varies according to the OS and application) / Cut sheet : 610mm | Media Handling / Maximum Media Roll Diameter: 175mm | Media Handling / Media Core Size: Internal diameter of roll core: 2"/3" | Media Handling / Margins Recommended Area: Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm / Cut sheet: Top: 20mm, Bottom: 20mm, Side: 3mm / Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm | Media Handling / Margins Printable Area: Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm / Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm / Cut sheet: Top: 3mm, Bottom: 20mm, Side: 3mm / Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm | Media Handling / Media Feed Capacity: Roll Paper: Two rolls. Automatic switching is possible. / Roll Paper, Cut Sheet: Manual switching is possible / Cut Sheet: 1 sheet | Media Handling / Borderless Printing Width (Roll Only): [Recommended] 515mm(JIS B2), 728mm(JIS B1), 594mm(ISO A1), 841mm(ISO A0), 10", 14", 17", 24", 36" / [Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 707mm (ISO B1), 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm, user defined paper (roll paper) / ("Printable" size is printed as micro margin technology, that means it is not used with hole of platen) | Media Handling / Maximum Number of Delivered Prints: Upper Output (Top Delivery Tray):, Longest stacking length : 1397 mm / CAD (3-inch core, Uncoated paper 75gsm) / A0 portrait: 100 sheets / *Mixed size stacking is possible. Maximum 100 sheets. / / CAD (2-inch core, Uncoated paper 75gsm) / A0 portrait: 50 sheets / *Mixed size stacking is possible. Maximum 50 sheets. / / Poster (3-inch core, Uncoated Paper 75gsm / Coated Paper) / A1 portrait: 10 sheets / / Front Output (Basket): 1 sheet, Longest stacking length : 1219.2mm | Power and Operating Requirements / Power Supply: AC 100-240V (50-60Hz) | Power and Operating Requirements / Power Consumption: Operation: 111W or less / Sleep mode: 2.1W or less / Default setting for the time to enter the Sleep mode: Approx. 5 minutes / Power off: 0.1W or less | Power and Operating Requirements / Operating Environment: Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation) | Power and Operating Requirements / Acoustic Noise (Power/Pressure): Operation: Approx. 52dB(A) (Standard Plain Paper 2, Standard mode, Line Drawing) (Measured based on ISO7779 standard) / Standby: 35 dB(A) or less / Operation: 7.0 Bels or less (Standard Plain Paper 2, Standard mode, Line Drawing) (Measured based on ISO7779 standard) | Power and Operating Requirements / Regulations: CE mark, UKCA mark | Power and Operating Requirements / Environment Certificates: CB certfication, EPEAT GOLD | Dimensions and Weight / Physical Dimensions and Weight: W x D x H / Main Unit with stand / 1548 x 1293 x, 1189 mm (Basket Opened) / 1548 x 960 x 1189 mm (Basket Closed) / 206 kg | Dimensions and Weight / Packaged Dimensions and Weight: 1704 x 946 x 1373 mm / 277kg | What's Included / What's in the Box?: Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, 3 inch paper core attachment, 2 x roll holders(spools), Basket, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Notice for PosterArtist WEB | What's Included / Software Included: Software available as Download from Web | Options / Optional Items: 2"/3" Roll Holder: RH2-34 / IC Card Reader Holder: RA-01 | Consumables / User Replaceable Items: Ink Tank: M: PFI-341(330ml)/PFI-741(700ml) / MBK/BK/C/Y:PFI-340(330ml)/PFI-740(700ml) / Print Head: PF-06 / Maintenance Cartridge: MC-30 | Manufacturer technical note / footnote-1: EPEAT Gold registered in the U.S.
