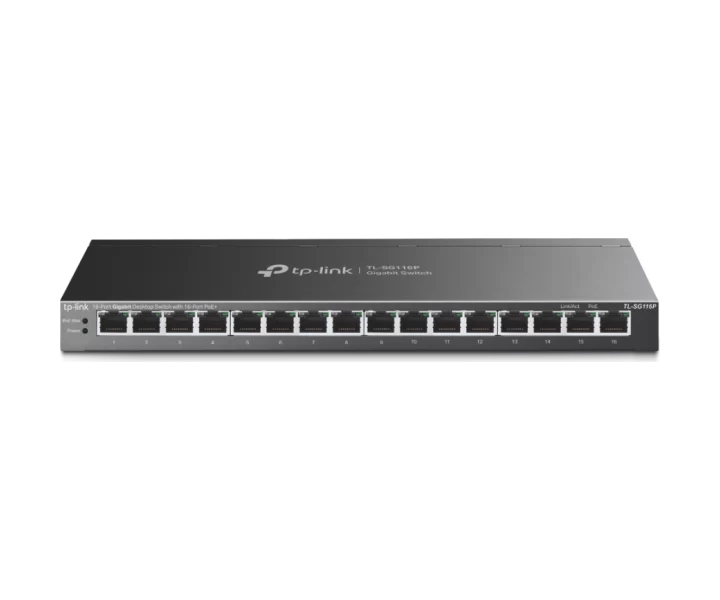

TP-Link TL-SG116P özellikleri ve fiyatları

TP-Link TL-SG116P teknik özellikleri

Model kodu

TL-SG116P

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 16× 10/100/1000Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

Güç kaynağı

External Power Adapter (Output: 53.5 VDC / 2.43 A)

Güç tüketimi koşulları

• 11.72 W (220 V / 50 Hz no PD connected) /11.56 W (110 V / 60 Hz no PD connected)• 142.51 W (220 V / 50 Hz with 120 W* PD connected) / 144.28 W (110 V / 60 Hz with 120 W* PD connected)

En yüksek ısı yayılımı

• 39.85 BTU/h (220 V / 50 Hz no PD connected) / 39.31 BTU/h (110 V / 60 Hz no PD connected)• 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)

Boyutlar

11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• TL-SG116P• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• Priority Mode Button (Ports 1–4)• Isolation Mode Button (Ports 1–7 / 8-14)• PoE Auto Recovery (Ports 1-16)• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping

RJ45 bağlantıları

16 port

Fansız tasarım

Var

Paket iletme hızı

23.8 Mpps

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–16• Power Supply: 120 W

PoE desteği

Var

Anahtarlama kapasitesi

32 Gbps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉);•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 16× 10/100/1000Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, External Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A), Packet Forwarding Rate: 23.8 Mpps, PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–16• Power Supply: 120 W, Mac Address Table: 8K, Auto-learning, Auto-aging, Switching Capacity: 32 Gbps, Dimensions ( W x D x H ): 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm), Max. Power Consumption: • 11.72 W (220 V / 50 Hz no PD connected) /11.56 W (110 V / 60 Hz no PD connected)• 142.51 W (220 V / 50 Hz with 120 W* PD connected) / 144.28 W (110 V / 60 Hz with 120 W* PD connected), Max Heat Dissipation: • 39.85 BTU/h (220 V / 50 Hz no PD connected) / 39.31 BTU/h (110 V / 60 Hz no PD connected)• 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected), Advanced Features: • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• Priority Mode Button (Ports 1–4)• Isolation Mode Button (Ports 1–7 / 8-14)• PoE Auto Recovery (Ports 1-16)• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • TL-SG116P• Power Adapter• Installation Guide, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Güncel mağaza teklifleri

idefix · Satıcı: Nepal Bilişim · 6.099,00 TL · Kargo bedeli doğrulanmadı · Son gözlem: 2026-10-30 08:25:50 UTC
