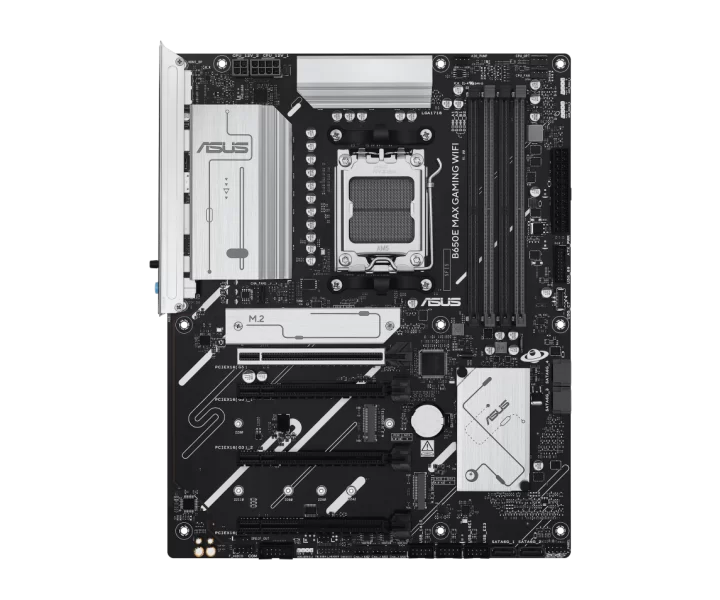

B650E MAX GAMING WIFI özellikleri ve fiyatları

B650E MAX GAMING WIFI teknik özellikleri

Model kodu

B650E MAX GAMING WIFI

İşlemci soketi

AM5

Anakart yonga seti

AMD B650 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; Supports up to AMD 170W CPU; * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (support x4 mode); 2 x PCIe 3.0 x16 slots (support x1 mode)***; * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (support x4 mode); 2 x PCIe 3.0 x16 slots (support x1 mode)***; * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported

M.2 uyumluluğu ve şerit paylaşımı

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*; AMD B650 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports; * Specifications vary by CPU types.; AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10

RAID desteği

AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10

USB bağlantısı

Rear USB (Total 8 ports); 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C ); 2 x USB 5Gbps ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 9 ports); 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 6 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.3**; * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.; ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 10Gbps port (1 x USB Type-C ); 3 x USB 10Gbps ports (3 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connectors; 1 x 4-pin +12V CPU Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 6 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header; 1 x Thunderbolt (USB4 ) header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connectors; 1 x 4-pin +12V CPU Power connectors

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - Q-Antenna; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - Pre-mounted I/O shield; - SafeSlot; Aura Sync; - Addressable RGB Gen 2 headers

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS WiFi Q-Antenna; 1 x M.2 rubber package; 3 x Screw packages for M.2 SSD; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: B650E MAX GAMING WIFI, News & Updates: Socket AM5, Please visit our GLOBAL website to check and download the latest updates., CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 170W CPU * Refer to https://www.asus.com/support/download-center/ for CPU support list., Chipset: AMD B650 Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). ** Specifications vary by CPU types. *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported, Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10, Ethernet: 1 x Realtek 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 8 ports) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C ) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 1 x USB 10Gbps port (1 x USB Type-C ) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt (USB4 ) header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS Driver Hub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 3 x Screw packages for M.2 SSD Documentation 1 x Quick start guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
