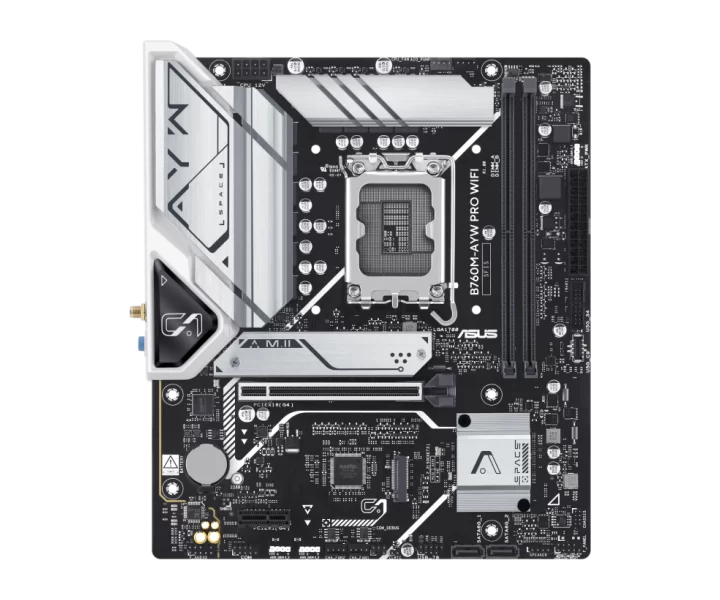

B760M-AYW PRO WIFI özellikleri ve fiyatları

B760M-AYW PRO WIFI teknik özellikleri

Model kodu

B760M-AYW PRO WIFI

İşlemci soketi

LGA1700

Anakart yonga seti

Intel B760 Chipset

Anakart biçimi

micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14 th & 13 th Gen Processors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to https://www.asus.com/support/download-center/ for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

2 x DIMM slots, max. 96GB, DDR5; 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile II (AEMP II); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Processors (14 th & 13 th & 12 th Gen); 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Processors (14 th & 13 th & 12 th Gen); 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*; Intel Core Processors (14 th & 13 th & 12 th Gen); M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 2 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports SATA RAID 0/1.

RAID desteği

* Intel Rapid Storage Technology supports SATA RAID 0/1.

USB bağlantısı

Rear USB (Total 8 ports); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 5Gbps ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 5 ports); 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet

Wi-Fi

Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3*; * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 10Gbps ports (2 x Type-A); 4 x USB 5Gbps ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 2 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x Speaker header; 1 x 10-1 pin Front System Panel header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 2 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port ***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; Aura Sync; - Addressable Gen 2 headers

Boyutlar

micro-ATX Form Factor; 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antenna; 1 x I/O shield; 1 x M.2 rubber package; 1 x Screw package for M.2 SSD; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: B760M-AYW PRO WIFI, News & Updates:, CPU: Intel Socket LGA1700 for Intel Core 14 th & 13 th Gen Processors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel B760 Chipset, Memory: 2 x DIMM slots, max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x HDMI port *** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel Core Processors (14 th & 13 th & 12 th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* Intel Core Processors (14 th & 13 th & 12 th Gen) M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1., Ethernet: 1 x Realtek 2.5Gb Ethernet, Wireless & Bluetooth: Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin Front System Panel header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Addressable Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
