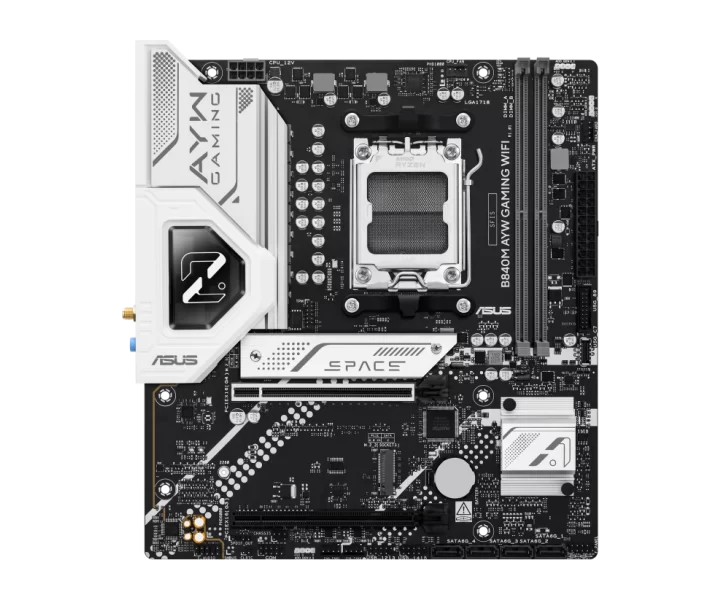

B840M AYW GAMING WIFI özellikleri ve fiyatları

B840M AYW GAMING WIFI teknik özellikleri

Model kodu

B840M AYW GAMING WIFI

İşlemci soketi

AM5

Anakart yonga seti

AMD B840 Chipset

Anakart biçimi

micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; Supports up to AMD 170W CPU; * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Desteklenen bellek yapılandırmaları

2 x DIMM slots, max. 128GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP); * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.; * XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used.; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B840 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B840 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*; AMD B840 Chipset; 4 x SATA 6Gb/s ports; * Specifications vary by CPU types.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 6 ports); 2 x USB 10Gbps ports (2 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A.

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 6; 1x1 Wi-Fi 6 (802.11ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3*; * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 10Gbps ports (2 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 3 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin Front Panel System header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port**; * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

32MB (256Mb) Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; Aura Sync; - Addressable RGB Gen 2 headers

Boyutlar

micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antenna; 1 x I/O shield; 1 x M.2 rubber package; 1 x Screw package for M.2 SSD; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: B840M AYW GAMING WIFI, News & Updates: Socket AM5, Please visit our GLOBAL website to check and download the latest updates., CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 170W CPU * Refer to https://www.asus.com/support/download-center/ for CPU support list., Chipset: AMD B840 Chipset, Memory: 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components. * XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x HDMI port** * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B840 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B840 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types., RAID Support: AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10, Ethernet: 1 x Realtek 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A., Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable RGB Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS DriverHub - ASUS AI Advisor - ASUS CPU-Z - ASUS GlideX - TurboV Core - Norton 360 Deluxe (60 Days Free Trial) - WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information., BIOS: 32MB (256Mb) Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
