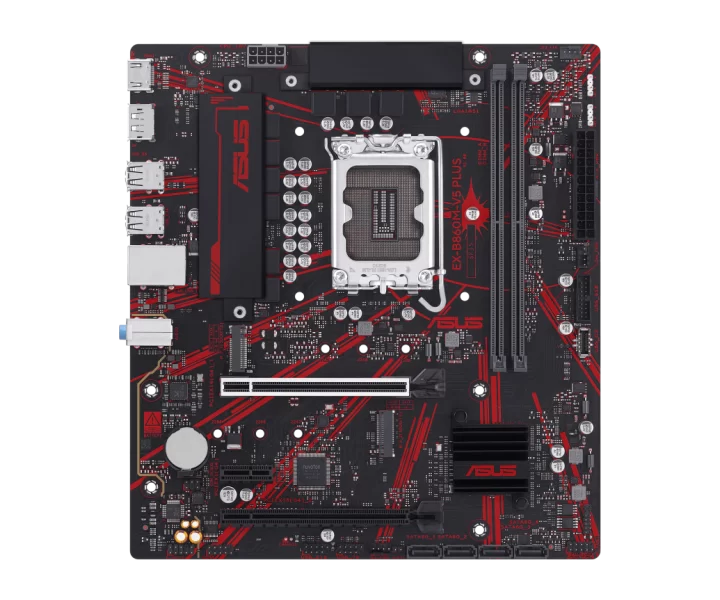

EX-B860M-V5 PLUS özellikleri ve fiyatları

EX-B860M-V5 PLUS teknik özellikleri

Model kodu

EX-B860M-V5 PLUS

İşlemci soketi

LGA1851

Anakart yonga seti

Intel B860 Chipset

Anakart biçimi

micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

Supports Intel Core Ultra Processors (Series 2) , LGA1851*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to https://www.asus.com/support/download-center/ for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

2 x DIMM slots, max. 128GB, DDR5; Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III); * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.; * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.; * XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used.; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Ultra Processors (Series 2); 1 x PCIe 4.0 x16 slot; Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Ultra Processors (Series 2); 1 x PCIe 4.0 x16 slot; Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Ultra Processors (Series 2); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel B860 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 6 ports); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C output (USB Type-C Current): max. 5V/3A.; ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Kablolu ağ bağlantısı

1 x Realtek 5Gb Ethernet; ASUS LANGuard

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Realtek 5Gb Ethernet; 3 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x 10-1 pin Front Panel System header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

2 x 16MB (2 x 128Mb) Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - ProCool; Non-stop Action; - Lightning Boot; Non-stop Challenger; - ASUS iCafe labs certified; Non-stop Durability; - Luminous anti-moisture coating; - USBGuard

Boyutlar

micro-ATX Form Factor; 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x I/O shield; 1 x M.2 anchor package; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: EX-B860M-V5 PLUS, News & Updates: Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates., CPU: Supports Intel Core Ultra Processors (Series 2) , LGA1851* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel B860 Chipset, Memory: 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components. * XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market., Graphics: 1 x DisplayPort** 1 x HDMI port*** * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports, RAID Support: Intel Rapid Storage Technology Supports SATA RAID 0/1/5/10., Ethernet: 1 x Realtek 5Gb Ethernet ASUS LANGuard, USB: Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C output (USB Type-C Current): max. 5V/3A. ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth., Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 5Gb Ethernet 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard, BIOS: 2 x 16MB (2 x 128Mb) Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x Quick start guide, Operating System: Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later), Form Factor: micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
