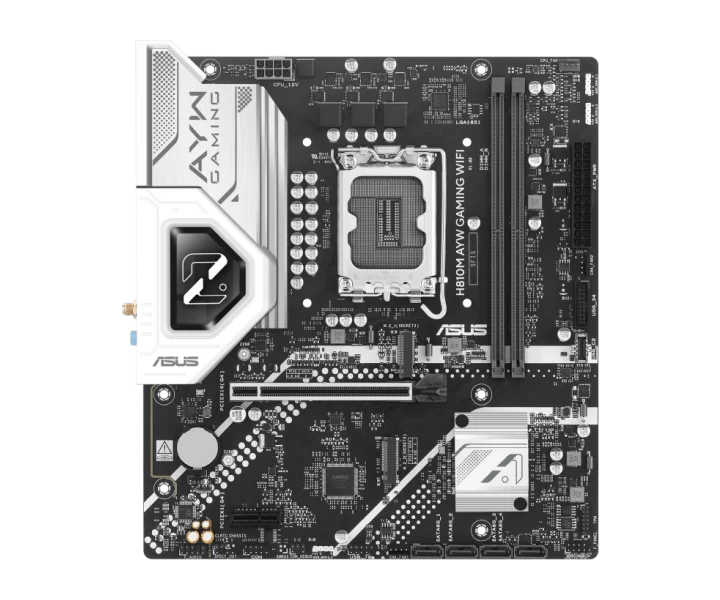

H810M AYW GAMING WIFI özellikleri ve fiyatları

H810M AYW GAMING WIFI teknik özellikleri

Model kodu

H810M AYW GAMING WIFI

İşlemci soketi

LGA1851

Anakart yonga seti

Intel H810 Chipset

Anakart biçimi

micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

Support Intel Core Ultra Processors (Series 2) , LGA1851; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to https://www.asus.com/support/download-center/ for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

2 x DIMM slots, max. 128GB, DDR5; Supports up to; 7200MT/s with Intel Core Ultra 200S Plus Processors; 6400MT/s with Intel Core Ultra 200S Processors; Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile II (AEMP II); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.; ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Ultra Processors (Series 2); 1 x PCIe 4.0 x16 slot; Intel H810 Chipset; 1 x PCIe 4.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Ultra Processors (Series 2); 1 x PCIe 4.0 x16 slot; Intel H810 Chipset; 1 x PCIe 4.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel H810 Chipset; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 6 ports); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 5 ports); 1 x USB 5Gbps connector (supports USB Type-C )*; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A; ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Kablolu ağ bağlantısı

1 x Intel 1Gb Ethernet port*; ASUS LANGuard; *With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

Wi-Fi

Wi-Fi 6; 1x1 Wi-Fi 6 (802.11ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3*; * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi module; 1 x Intel 1Gb Ethernet port; 3 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin Front Panel System header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.; **** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - Q-DIMM; - Q-Dashboard; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; Aura Sync; - Addressable Gen 2 headers

Boyutlar

micro-ATX Form Factor; 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antenna; 1 x I/O shield; 1 x Screw package for M.2 SSD; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: H810M AYW GAMING WIFI, News & Updates: Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates., CPU: Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel H810 Chipset, Memory: 2 x DIMM slots, max. 128GB, DDR5 Supports up to 7200MT/s with Intel Core Ultra 200S Plus Processors 6400MT/s with Intel Core Ultra 200S Processors Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports, Ethernet: 1 x Intel 1Gb Ethernet port* ASUS LANGuard *With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3., Wireless & Bluetooth: Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth., Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 1Gb Ethernet port 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey, BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide, Operating System: Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later), Form Factor: micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
