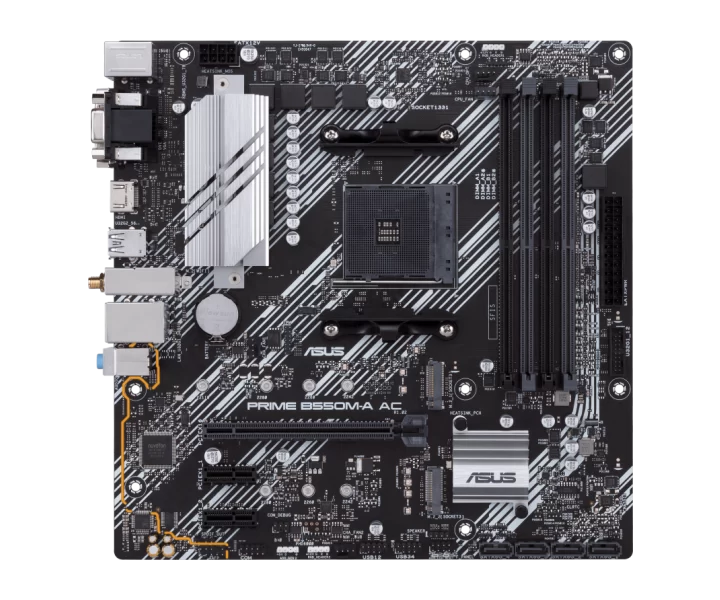

PRIME B550M-A AC özellikleri ve fiyatları

PRIME B550M-A AC teknik özellikleri

Model kodu

PRIME B550M-A AC

İşlemci soketi

AM4

Anakart yonga seti

AMD B550

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 (x16 mode); AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD B550 Chipset; 2 x PCIe 3.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 (x16 mode); AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD B550 Chipset; 2 x PCIe 3.0 x1

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :; 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support; AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors :; 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support; AMD B550 Chipset :; 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

Ses çıkışı

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; Audio Feature :; - LED-illuminated design; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors; * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Ses yongası

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *

Ses kanalı yapılandırması

7.1 kanal

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Boyutlar

mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Kutu içeriği

I/O Shield; 2 x SATA 6Gb/s cable(s); 1 x Supporting DVD; User manual; 1 x Wi-Fi moving antenna; 1 x M.2 SSD screw package(s)

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME B550M-A AC, CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors * * Refer to www.asus.com for CPU support list, Chipset: AMD B550, Memory: 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types., Graphic: 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ), Expansion Slots: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1, Storage: Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: Realtek RTL8111H 1Gb Ethernet, Wireless Data Network: Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports PCIe interface, Bluetooth: Bluetooth 5.0, Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output., USB Ports: Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A), Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, ASUS Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control, Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) 1 x ASUS Wi-Fi Module, Internal I/O Ports: 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector, Accessories: I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD User manual 1 x Wi-Fi moving antenna 1 x M.2 SSD screw package(s), BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PXE, Operating System: Windows 10 64-bit, Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ), Note: *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
