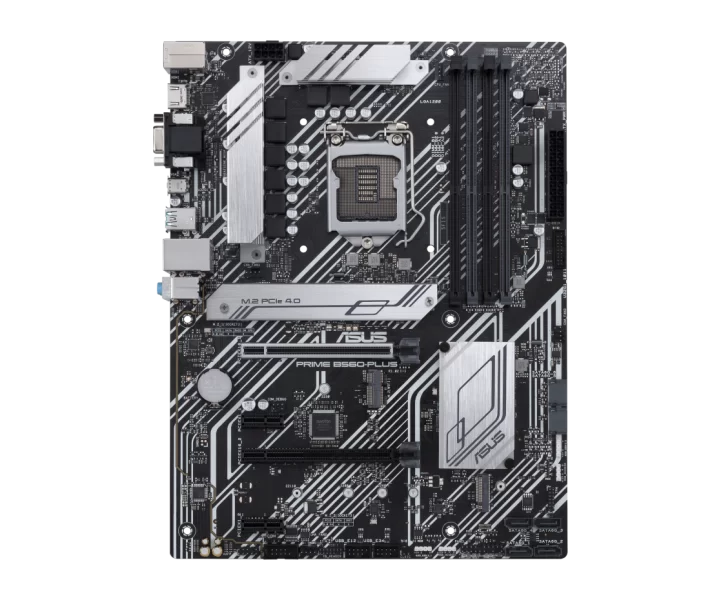

PRIME B560-PLUS özellikleri ve fiyatları

PRIME B560-PLUS teknik özellikleri

Model kodu

PRIME B560-PLUS

İşlemci soketi

LGA1200

Anakart yonga seti

Intel B560 Chipset

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11 th Gen Intel; Core processors & 10 th Gen Intel Core, Pentium Gold and Celeron; Processors; Supports Intel 14nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP); ASUS OptiMem; * 11 th Gen Intel processors support 2933/2800/2666/2400/2133 natively.; * 10 th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel 11 th &10 th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot*; - Intel 11 th processors support PCIe 4.0 x16; - Intel 10 th processors support PCIe 3.0 x16; Intel B560 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode)*; 2 x PCIe 3.0 x1 slots; *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory.

PCIe şerit paylaşımı ve işlemci koşulları

Intel 11 th &10 th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot*; - Intel 11 th processors support PCIe 4.0 x16; - Intel 10 th processors support PCIe 3.0 x16; Intel B560 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode)*; 2 x PCIe 3.0 x1 slots; *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports; Intel 11 th Gen Processors; -M.2_1slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ); -Only Intel 11 th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs; Intel B560 Chipset; -M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode*; -6 x SATA 6Gb/s ports; * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB (Total 7 ports); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1x USB 3.2 Gen 1 port (1 x USB Type-C); 4 x USB 2.0 ports; Front USB (Total 6 ports); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

Intel I219-V; ASUS LANGuard

Wi-Fi

M.2 slot only(Key E,CNVi & PCIe)*; (Wi-Fi module is sold separately)

Ses çıkışı

Realtek ALC887/897 7.1-Channel High Definition Audio CODEC*; - Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Ses yongası

Realtek ALC887/897 7.1-Channel High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x DP port; 1 x HDMI port; 1 x D-Sub port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port; 1 x Intel I219-V 1Gb Ethernet port; 4 x USB 2.0 ports (4 x Type-A); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x USB Type-C )

Dahili bağlantılar ve ön panel başlıkları

Fan and cooling-related; 1 x 4-pin CPU Fan header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 2 x AURA Addressable Gen 2 headers; 2 x AURA RGB headers; 1 x Clear CMOS jumper; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF out header; 1 x 20-3pin System Panel header with; Chassis intrude function; 1 x SPI TPM header (14-1 pin); 1 x M.2 slot (key E); 1 x Thunderbolt 4 header

Fan ve pompa bağlantıları

Fan and cooling-related; 1 x 4-pin CPU Fan header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DP 1.4**; 1 x HDMI TM 1.4 / 2.0***; 1 x D-Sub; * Graphics specifications may vary between CPU types.; ** For Intel 11 th & 10 th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.Please refer to www.intel.com for any update.; *** Only Intel 11 th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - ASUS DIGI+VRM; - ASUS LANGuard; - ASUS Overvoltage Protection; -ASUS SafeSlot Core+; -ASUS Stainless-Steel Back I/O; ASUS Q-Design:; -ASUS Q-DIMM; -ASUS Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - Box Headers; AURA SYNC; - AURA RGB headers; - Addressable Gen 2 RGB headers

Boyutlar

ATX Form Factor; 12.0 inch x 9.2 inch (30.5 cm x 23.4cm)

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x M.2 Rubber Package; 1 x IO Shield; 1 x M.2 SSD screw package; 1 x M.2 Key E screw package; Installation Media; 1 x Supporting DVD; Documentation; 1 x User's manual

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME B560-PLUS, CPU: Intel Socket LGA1200 for 11 th Gen Intel Core processors & 10 th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel B560 Chipset, Memory: 4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) ASUS OptiMem * 11 th Gen Intel processors support 2933/2800/2666/2400/2133 natively. * 10 th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types., Graphics: 1 x DP 1.4** 1 x HDMI TM 1.4 / 2.0*** 1 x D-Sub * Graphics specifications may vary between CPU types. ** For Intel 11 th & 10 th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.Please refer to www.intel.com for any update. *** Only Intel 11 th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates., Expansion Slots: Intel 11 th &10 th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel 11 th processors support PCIe 4.0 x16 - Intel 10 th processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory., Storage: Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11 th Gen Processors -M.2_1slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ) -Only Intel 11 th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset -M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode* -6 x SATA 6Gb/s ports * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used., Ethernet: Intel I219-V ASUS LANGuard, Wireless & Bluetooth: M.2 slot only(Key E,CNVi & PCIe)* (Wi-Fi module is sold separately), USB: Rear USB (Total 7 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x USB Type-C) 4 x USB 2.0 ports Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: Realtek ALC887/897 7.1-Channel High Definition Audio CODEC* - Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output., Back Panel I/O Ports: 1 x DP port 1 x HDMI port 1 x D-Sub port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port 1 x Intel I219-V 1Gb Ethernet port 4 x USB 2.0 ports (4 x Type-A) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x USB Type-C ), Internal I/O Connectors: Fan and cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x SPI TPM header (14-1 pin) 1 x M.2 slot (key E) 1 x Thunderbolt 4 header, Special Features: ASUS 5X PROTECTION III - ASUS DIGI+VRM - ASUS LANGuard - ASUS Overvoltage Protection -ASUS SafeSlot Core+ -ASUS Stainless-Steel Back I/O ASUS Q-Design: -ASUS Q-DIMM -ASUS Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - Box Headers AURA SYNC - AURA RGB headers - Addressable Gen 2 RGB headers, Software Features: ASUS Exclusive Software: Armoury Crate - AURA Creator -AURA Sync AI Suite 3 -Performance And Power Saving Utility Turbo EVO Digi+ VRM EPU Fan Xpert 2+ - EZ update ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 Rubber Package 1 x IO Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Supporting DVD Documentation 1 x User's manual, Operating System: Windows 10 - 64 bit, Form Factor: ATX Form Factor 12.0 inch x 9.2 inch (30.5 cm x 23.4cm)
