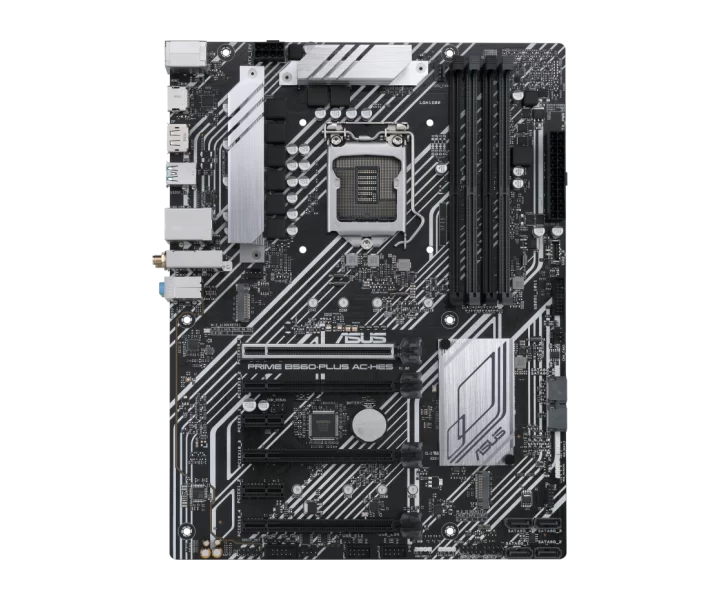

PRIME B560-PLUS AC-HES özellikleri ve fiyatları

PRIME B560-PLUS AC-HES teknik özellikleri

Model kodu

PRIME B560-PLUS AC-HES

İşlemci soketi

LGA1200

Anakart yonga seti

B560

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

PCIe yuvaları

1 x PCIe 4.0/3.0 (x16) + 3 x PCIe 3.0 x16 (x1), Intel 11th &10th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot*; - Intel 11th processors support PCIe 4.0 x16; - Intel 10th processors support PCIe 3.0 x16; Intel B560 Chipset; 3 x PCIe 3.0 x16 slots (supports x1 mode); 2 x PCIe 3.0 x1 slots

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe 4.0/3.0 (x16) + 3 x PCIe 3.0 x16 (x1), Intel 11th &10th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot*; - Intel 11th processors support PCIe 4.0 x16; - Intel 10th processors support PCIe 3.0 x16; Intel B560 Chipset; 3 x PCIe 3.0 x16 slots (supports x1 mode); 2 x PCIe 3.0 x1 slots

M.2 uyumluluğu ve şerit paylaşımı

Intel 11th Gen Processors; M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ); - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs; Intel B560 Chipset; M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes); 6 x SATA 6Gb/s ports; When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

USB bağlantısı

1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 2 x USB 3.2 Gen 2 ports (2 x Type-A); 4 x USB 2.0 ports

Ses çıkışı

Realtek 7.1-Channel High Definition Audio CODEC*; - Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192kHz playback"; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Ses yongası

Realtek 7.1-Channel High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x DP port; 1 x HDMI port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port; 1 x ASUS Wi-Fi Module; 1 x Intel I219-V 1Gb Ethernet port; 4 x USB 2.0 ports (4 x Type-A); 2 x USB 3.2 Gen 2 ports (2 x Type-A)

Dahili bağlantılar ve ön panel başlıkları

Fan and cooling-related; 1 x 4-pin CPU Fan header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 2 x AURA Addressable Gen 2 headers; 2 x AURA RGB headers; 1 x Clear CMOS jumper; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF out header; 1 x 20-3pin System Panel header with Chassis intrude function; 1 x SPI TPM header (14-1 pin)

Fan ve pompa bağlantıları

Fan and cooling-related; 1 x 4-pin CPU Fan header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

*Graphics specifications may vary between CPU types. ** For Intel 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.; ***Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - ASUS DIGI+VRM; - ASUS LANGuard; - ASUS Overvoltage Protection; - ASUS SafeSlot Core+; - ASUS Stainless-Steel Back I/O; ASUS Q-Design:; - ASUS Q-DIMM; - ASUS Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - Box Headers; AURA SYNC; - AURA RGB headers - Addressable Gen 2 RGB headers

Boyutlar

ATX

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x IO Shield; 1 x M.2 SSD screw package; Installation Media; 1 x Supporting DVD; Documentation; 1 x User's manual

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME B560-PLUS AC-HES, CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: B560, Memory: 4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*, Graphics: *Graphics specifications may vary between CPU types. ** For Intel 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. ***Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates., Expansion Slots: 1 x PCIe 4.0/3.0 (x16) + 3 x PCIe 3.0 x16 (x1), Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel 11th processors support PCIe 4.0 x16 - Intel 10th processors support PCIe 3.0 x16 Intel B560 Chipset 3 x PCIe 3.0 x16 slots (supports x1 mode) 2 x PCIe 3.0 x1 slots, Storage: Intel 11th Gen Processors M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ) - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes) 6 x SATA 6Gb/s ports When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used., Wireless & Bluetooth:, USB: 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports, Audio: Realtek 7.1-Channel High Definition Audio CODEC* - Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output., Back Panel I/O Ports: 1 x DP port 1 x HDMI port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port 1 x ASUS Wi-Fi Module 1 x Intel I219-V 1Gb Ethernet port 4 x USB 2.0 ports (4 x Type-A) 2 x USB 3.2 Gen 2 ports (2 x Type-A), Internal I/O Connectors: Fan and cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x SPI TPM header (14-1 pin), Special Features: ASUS 5X PROTECTION III - ASUS DIGI+VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design: - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - Box Headers AURA SYNC - AURA RGB headers - Addressable Gen 2 RGB headers, Software Features: ASUS Exclusive Software: Armoury Crate - AURA Creator - AURA Sync AI Suite 3 -Performance And Power Saving Utility Turbo EVO Digi+ VRM EPU Fan Xpert 2+ - EZ update ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x IO Shield 1 x M.2 SSD screw package Installation Media 1 x Supporting DVD Documentation 1 x User's manual, Operating System:, Form Factor: ATX
